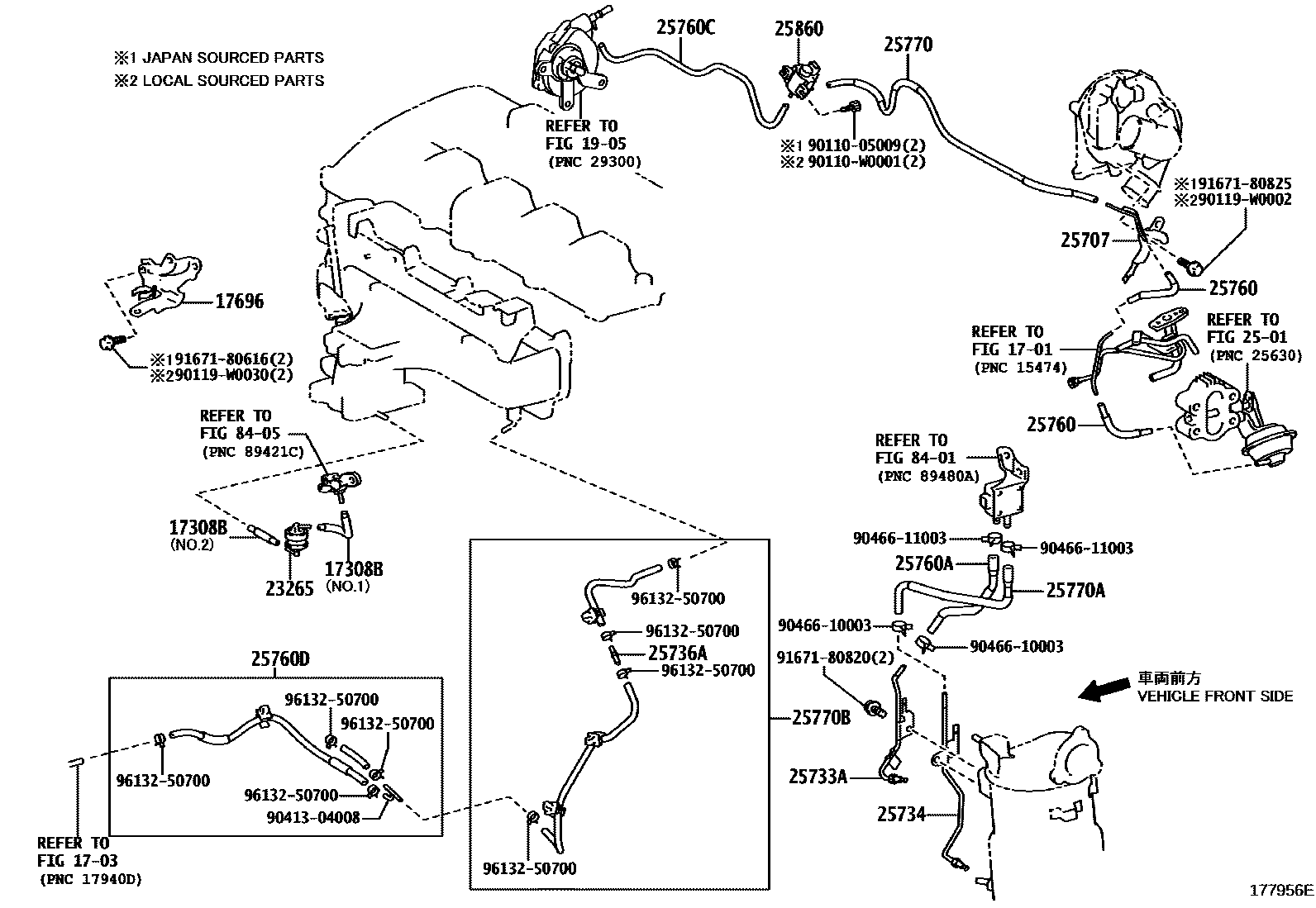

VACUUM PIPING
1701
1703
17308BHOSE SUB-ASSY, VACUUM
*119,NO.1
1AD-FTV,*119,NO.1
2AD-FHV,*119,NO.1
2AD-FTV,*119,NO.1
*145,NO.1
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
*119,NO.2
*145,NO.2
17696BRACKET, GAS FILTER
*119
1AD-FTV,*119
2AD-FHV,*119
2AD-FTV,*119
*145
1905
23265FILTER, GAS, NO.1
2AD-FHV,*119
2AD-FTV,*119
*119
1AD-FTV,*119
*145
2501
25707PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
*119
1AD-FTV,*119
25733APIPE, VACUUM, NO.1
*119
25734PIPE, VACUUM, NO.2
*119
25736APIPE, VACUUM TRANSMITTING, NO.1
25760HOSE ASSY, VACUUM TRANSMITTING
1AD-FTV,*119
*119
2AD-FHV,*119
2AD-FTV,*119
*145
25760AHOSE ASSY, VACUUM TRANSMITTING
25760CHOSE ASSY, VACUUM TRANSMITTING, NO.3
*119
2AD-FHV,*119
2AD-FTV,*119
*145
1AD-FTV,*119
*119
25760DHOSE ASSY, VACUUM TRANSMITTING, NO.4
25770HOSE ASSY, VACUUM TRANSMITTING, NO.2
*145
*119
25770AHOSE ASSY, VACUUM TRANSMITTING, NO.2
25770BHOSE ASSY, VACUUM TRANSMITTING, NO.3
25860VALVE ASSY, VACUUM SWITCHING, NO.1
*119
1AD-FTV,*119
2AD-FHV,*119
2AD-FTV,*119
*145
main25860-36090i2ARFXE..AVA42..EUR;2ARFE..ASA44..X..EUR;2AR#..ASA44,AVA44..JPP..(G,M)¥3,840201510-201810
main90910-12281i3ZRFE..ZSA4#..RUP;3ZRFAE..ZSA44..RHD..X;3ZRFE..ZSA42..JPP..6F..(G,M);3ZRFE..ZSA44..JPP..6F..(G,X)¥2,930201212-201810
8401
8405
9011005009
90110W0001
main90110-W0001
90119W0002
main90119-W0002
90119W0030
9041304008
9046610003
9046611003
9167180616
9167180820
9167180825
9613250700
32 parts on this diagram · 9 diagrams in section
