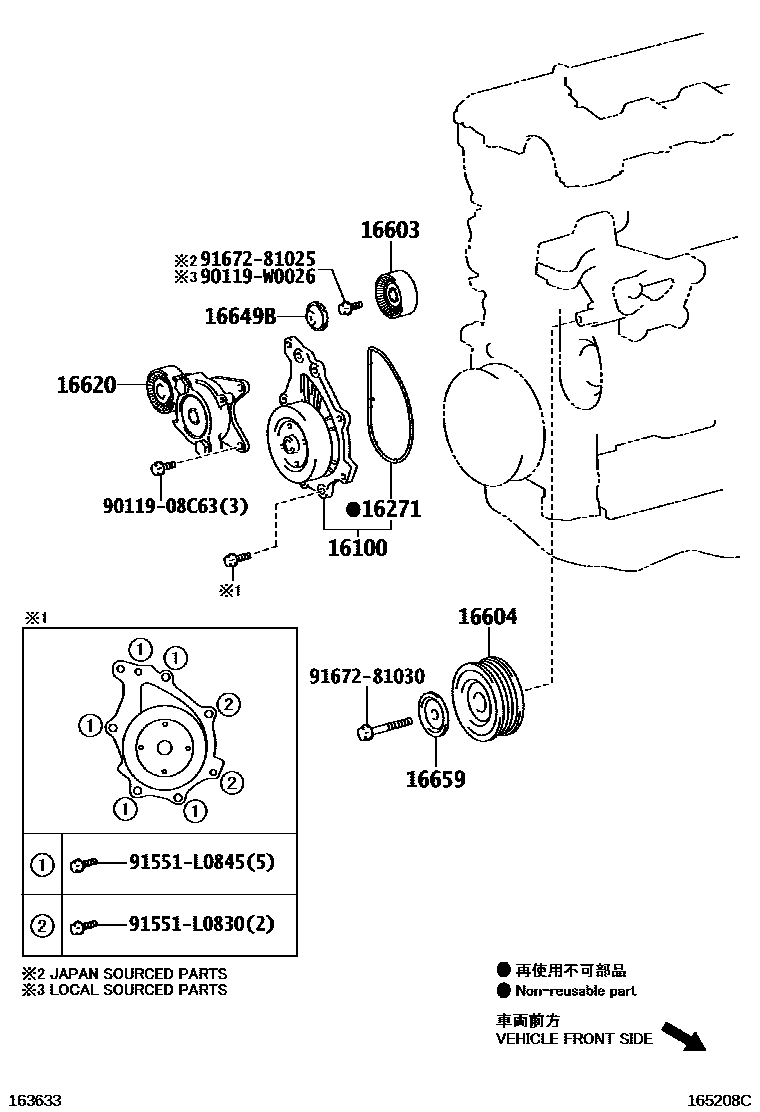

WATER PUMP
16100PUMP ASSY, ENGINE WATER
*145
*119
1AD-FTV,*145
2AD-FHV,*119
*119
2AD-FTV,*119
main16100-39466i3ZRFE..ZSA42..JPP..X;3ZRFE..ZSA44..JPP..M;3ZRFE..ZSA42..JPP..B..(G,M);3ZRFE..ZSA44..JPP..B..(G,X)201212-201810
*347,*265 OR *524
16271GASKET, WATER PUMP
*119
*145
*347
*265 OR *524
*347,*265 OR *524
16603PULLEY SUB-ASSY, IDLER, NO.1
*119
1AD-FTV,*119
2AD-FHV,*119
2AD-FTV,*119
*145
16604PULLEY SUB-ASSY, IDLER, NO.2
*119
1AD-FTV,*119
2AD-FHV,*119
2AD-FTV,*119
*145
16620TENSIONER ASSY, V-RIBBED BELT
*119
*145
*347T/P A:REF.ILLUST
*347T/P B:REF.ILLUST
*265 OR *524
sub16620-37030
16649BPLATE, IDLER PULLEY COVER
2AD-FHV,*119
2AD-FTV,*119
*119
1AD-FTV,*119
*145
16659PLATE, IDLER PULLEY COVER, NO.2
*119
1AD-FTV,*119
2AD-FHV,*119
2AD-FTV,*119
*145
9011908C63
main90119-08C63
90119W0026
main90119-W0026
91551L0830
main91551-L0830
91551L0845
main91551-L0845
9167281025
main91672-81025
9167281030
main91672-81030
13 parts on this diagram · 6 diagrams in section
