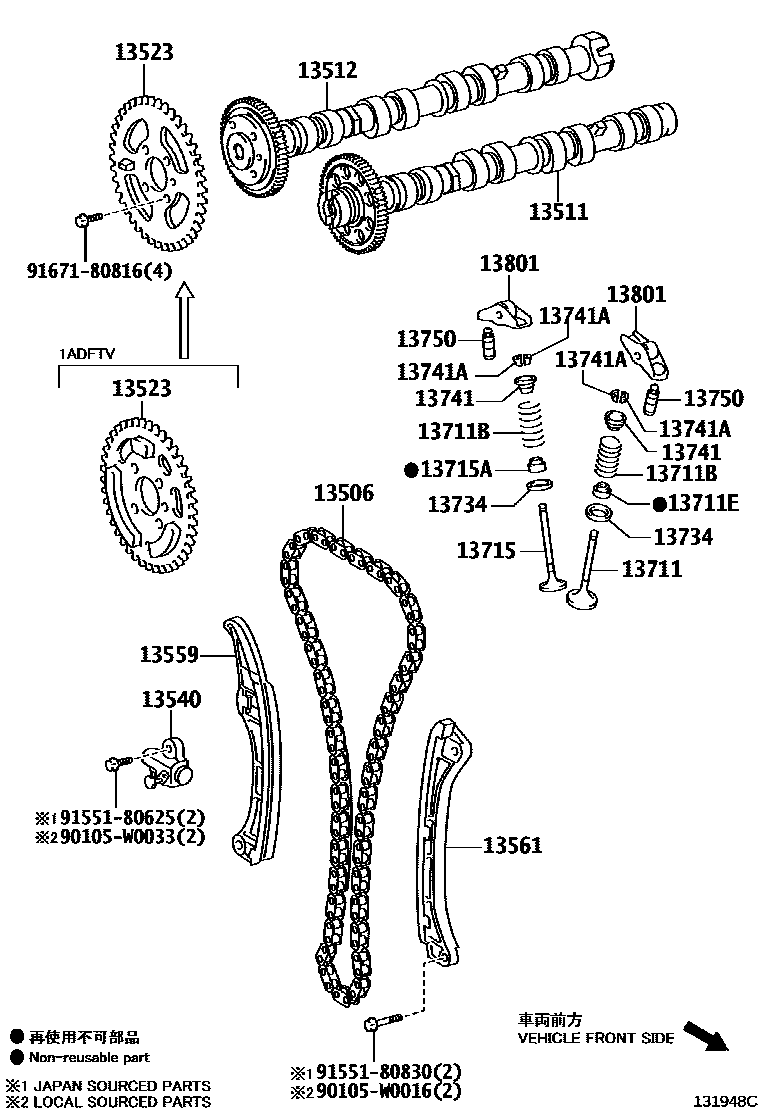

CAMSHAFT & VALVE

Parts diagram
13506CHAIN SUB-ASSY
main13506-0R010i201510-201810
main13506-0R010i201506-201510
*145
main13506-0V020i201510-201810
*347
main13506-26010i201212-201510
2AD-FTV,*119
main13506-26010i201212-201510
*119
main13506-26010i201212-201510
2AD-FHV,*119
main13506-26020i201212-201510
1AD-FTV,*119
main13506-26020i201212-201510
*119
main13506-36030i201510-201810
*265 OR *524
main13506-37060i201212-201810
main13506-37090i201510-201810
main13506-WA011i201510-201805
13511CAMSHAFT
main13501-0R010i201510-201703
main13501-0R010i201506-201510
*145
main13501-0R010i201309-201510
*119
main13501-0R011i201704
main13501-0T030i201510-201810
(L)
main13501-0V020i201610-201901
*347
sub13501-36050
main13501-0V030i201510-201810
*347
sub13501-36030
main13501-26010i201212-201309
*119
sub13501-0R010
main13501-26010i201212-201309
1AD-FTV,*119
sub13501-0R010
main13501-26010i201212-201309
2AD-FHV,*119
sub13501-0R010
main13501-26010i201212-201309
2AD-FTV,*119
sub13501-0R010
main13501-36030i201510-201810
*265 OR *524
main13501-36050i201901
*347
main13501-36050i201510
*265 OR *524
main13501-37011i201510-201810
(J)
sub13501-37040
main13501-WA010i201510-201805
13512CAMSHAFT, NO.2
main13502-0R011i201510-201701
main13502-0R011i201309-201510
(L),*119
main13502-0R011i201506-201510
*145
main13502-0R012i201702
main13502-0T030i201510-201810
(L)
main13502-0V020i201610-201901
*347
sub13502-36030
main13502-0V030i201510-201810
*347
sub13502-36020
main13502-26011i201212-201309
2AD-FHV,*119
sub13502-0R011
main13502-26011i201212-201309
2AD-FTV,*119
sub13502-0R011
main13502-26011i201212-201309
*119
sub13502-0R011
main13502-26011i201212-201309
1AD-FTV,*119
sub13502-0R011
main13502-36020i201510-201810
*265 OR *524
main13502-36030i201510
*265 OR *524
main13502-36030i201901
*347
main13502-37010i201510-201810
(J)
sub13502-37050
main13502-WA010i201510-201805
13523GEAR OR SPROCKET, CAMSHAFT TIMING
main13523-0R011i201212-201510
2AD-FTV,*119
main13523-0R011i201212-201510
*119
main13523-0R011i201212-201510
2AD-FHV,*119
main13523-0R011i201506-201510
*145
main13523-0R011i201510-201810
main13523-26011i201212-201510
*119
main13523-26011i201212-201510
1AD-FTV,*119
main13523-36020i201510-201810
*347,*265 OR *524
13540TENSIONER ASSY, CHAIN, NO.1
main13540-0R010i201506-201510
*145
main13540-0R010i201510-201810
main13540-0V040i201510-201810
*347
main13540-26010i201212-201510
2AD-FTV,*119
main13540-26010i201212-201510
*119
main13540-26010i201212-201510
1AD-FTV,*119
main13540-26010i201212-201510
2AD-FHV,*119
main13540-36040i201510-201806
*265 OR *524
sub13540-36041
main13540-36041i201807-201810
*265 OR *524
main13540-37030i201212-201810
main13540-WA010i201510-201805
13559SLIPPER, CHAIN TENSIONER
main13559-0R020i201510-201810
main13559-0R020i201212-201510
*119
main13559-0R020i201506-201510
*145
main13559-0V020i201510-201810
*347
main13559-36040i201510-201810
*265 OR *524
main13559-37020i201212-201306
main13559-37030i201306-201810
13561DAMPER, CHAIN VIBRATION, NO.1
main13561-0R020i201510-201810
main13561-0R020i201212-201510
*119
main13561-0R020i201506-201510
*145
main13561-0V020i201510-201810
*347
main13561-36030i201510-201810
*265 OR *524
main13561-37010i201212-201306
sub13561-37040
main13561-37040i201306-201807
sub13561-37060
main13561-37050i201510-201810
main13561-37060i201808-201810
13711VALVE, INTAKE
main13711-0R010i201510-201810
main13711-0R010i201506-201510
*145
main13711-0V020i201510-201810
*347
main13711-36060i201510-201810
*265 OR *524
main13711-37020i201212-201810
main13711-51030i201212-201510
*119
main13711-51030i201212-201510
2AD-FHV,*119
main13711-51030i201212-201510
2AD-FTV,*119
main13711-51030i201212-201510
1AD-FTV,*119
main13711-WA020i201510-201805
13711BSPRING, COMPRESSION(FOR INNER)
main90069-51022i201510-201805
main90501-28039i201510-201810
main90501-28039i201212-201510
*119
main90501-28039i201506-201510
*145
main90501-31027i201212-201405
main90501-31028i201405-201408
TYPE A:REFER ILLUST.
main90501-32071i201405-201408
TYPE B:REFER ILLUST.
sub90501-32072
main90501-32072i201408-201810
L=51.88
main90501-34022i201510-201810
*265 OR *524
main90501-C0019i201510-201602
*347PNC 13741=TYPE A
main90501-C0053i201602-201810
*347PNC 13741=TYPE B
13711ESEAL, INTAKE VALVE STEM OIL
main90913-02101i201510-201810
*265 OR *524
main90913-02124i201212-201510
*119
main90913-02124i201510-201810
(J)
main90913-02124i201506-201510
(J),*145
main90913-T2001i201510-201810
*347
main90913-W2001i201510-201810
(L)
main90913-W2001i201506-201510
(L),*145
13715VALVE, EXHAUST
main13715-0R010i201506-201510
*145
main13715-0R010i201510-201810
main13715-0V020i201510-201810
*347
main13715-36020i201510-201810
*265 OR *524
main13715-37030i201212-201810
main13715-51030i201212-201510
1AD-FTV,*119
main13715-51030i201212-201510
2AD-FHV,*119
main13715-51030i201212-201510
2AD-FTV,*119
main13715-51030i201212-201510
*119
main13715-WA020i201510-201805
13715ASEAL, EXHAUST VALVE STEM OIL
main90913-02112i201510-201810
*265 OR *524
main90913-02124i201510-201810
(J)
main90913-02124i201212-201510
*119
main90913-02124i201506-201510
(J),*145
main90913-T2003i201510-201810
*347
main90913-W2001i201510-201810
(L)
main90913-W2001i201506-201510
(L),*145
13734SEAT, VALVE SPRING
main13734-0P020i201510-201810
*347
main13734-33020i201510-201810
main13734-33020i201506-201510
*145
main13734-33020i201212-201510
*119
main13734-62020i201510-201810
*265 OR *524
main13734-62020i201212-201510
13741RETAINER, VALVE SPRING
main13741-0Y020i201510-201602
(L),*347T/P A:SEE
main13741-0Y050i201602-201810
(L),*347T/P B:SEE
main13741-20021i201510-201602
(J),*347T/P A:SEE
main13741-20021i201212-201405
main13741-20021i201405-201408
TYPE A:REFER ILLUST.
main13741-33020i201506-201510
*145
main13741-33020i201212-201510
*119
main13741-33020i201510-201810
main13741-36010i201510-201810
*265 OR *524
main13741-36010i201408-201510
main13741-36010i201602-201810
(J),*347T/P B:SEE
main13741-36010i201405-201408
TYPE B:REFER ILLUST.
main13741-WA010i201510-201805
13741ALOCK, VALVE SPRING RETAINER
main90913-03021i201510-201810
main90913-03021i201212-201510
*119
main90913-03021i201506-201510
*145
main90913-03028i201510-201810
(J),*347
main90913-03028i201212-201510
main90913-03028i201510-201810
*265 OR *524
main90913-C3002i201510-201810
(L),*347
mainSU00400001i201510-201805
13750ADJUSTER ASSY, VALVE LASH
main13750-0R010i201510-201810
main13750-0R010i201506-201510
*145
main13750-0R020i201212-201510
2AD-FTV,(L),*119
sub13750-0R010
main13750-0R020i201212-201510
(L),*119
sub13750-0R010
main13750-0R020i201212-201510
1AD-FTV,(L),*119
sub13750-0R010
main13750-0R020i201212-201510
2AD-FHV,(L),*119
sub13750-0R010
main13750-0V020i201510-201602
*347PNC 13801=TYPE A
main13750-0V030i201602-201810
*347PNC 13801=TYPE B
main13750-21010i201408-201810
main13750-26010i201212-201510
(J),*119
main13750-36020i201510-201810
*265 OR *524
main13750-75020i201212-201408
main13750-WA011i201510-201612
sub13750-WA012
main13750-WA012i201612-201805
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
main13801-0P020i201510-201602
*347T/P A:REF.ILLUST
main13801-0R010i201212-201510
(L),*119
main13801-0R010i201506-201510
*145
main13801-0R010i201510-201810
main13801-0V020i201602-201810
*347T/P B:REF.ILLUST
main13801-23011i201212-201404
main13801-26010i201212-201510
(J),*119
main13801-26010i201212-201510
1AD-FTV,(J),*119
main13801-26010i201212-201510
2AD-FHV,(J),*119
main13801-26010i201212-201510
2AD-FTV,(J),*119
main13801-36020i201510-201810
*265 OR *524
main13801-36020i201405-201510
main13801-WA011i201510-201805
90105W0016
main90105-W0016
90105W0033
main90105-W0033
9155180625
main91551-80625
9155180830
main91551-80830
9167180816
main91671-80816
