MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1

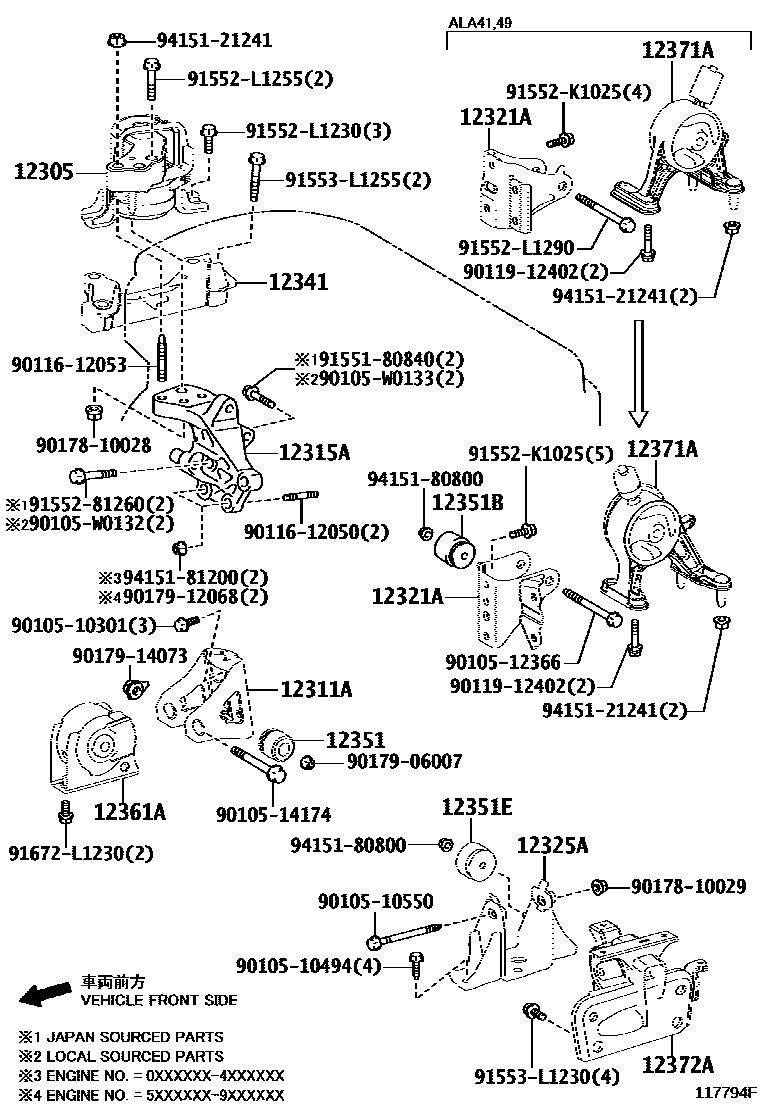

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-26072i2ADFTV..ALA49..G,M;2ADFTV..ALA49..RUP201212-201810

main12305-26101i2AD#..ALA49..6FC201212-201810

main12305-26110i1ADFTV..ALA40,41201212-201510

main12305-36040i2ARFE..ASA44..X..EUR;2ARFE..ASA44..JPP..(G,M)201510-201810

main12305-36090i2ARFXE..AVA4#201510-201810

main12305-37280i3ZRFE..ZSA4#..RUP;3ZRFE..ZSA42..JPP..6F..(G,M);3ZRFE..ZSA44..JPP..6F..(G,X)201212-201810

main12305-37330i3ZRFAE..ZSA44..A201504-201810

main12305-53020i2WW..WWA42201510-201805

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-26130i2ADFTV..ALA49..G,M;2ADFTV..ALA49..RUP201212-201810

main12311-26150i2ADFHV..ALA49..RUP201212-201810

main12311-36091i2ARFE..ASA44..RUP;2ARFE..ASA44..JPP..X..RUS201510-201810

main12311-36110i2ARFXE..AVA4#201510-201810

main12311-37100i3ZRFAE..ZSA44..6F201212-201810

main12311-37180i3ZRFAE..ZSA44..A201212-201810

main12311-37200i3ZRFAE..ZSA44..A201504-201810

main12311-53020i2WW..WWA42201510-201805

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-0R020i2ADFTV..ALA49..DCR201506-201510

*145

main12315-0R020i2AD#..ALA49..RUP;2ADFTV..ALA49..G,M201510-201810

main12315-0V030i2ARFXE..AVA4#;2ARFE..ASA44..RUP201510-201705

(L),*347

sub12315-0V031

sub90116-12053

main12315-0V031i2ARFE..ASA44..RUP;2ARFXE..AVA42..RUS201705-201810

(L),*347

main12315-26020i1ADFTV..ALA40201212-201510

2AD-FHV,*119

main12315-26020i1ADFTV..ALA40201212-201510

2AD-FTV,*119

main12315-26020i2ADFHV..ALA49201212-201510

*119

main12315-26020i2ADFHV..ALA49201212-201510

1AD-FTV,*119

main12315-36010i2ARFXE..AVA4#;2ARFE..ASA44..RUP201510-201705

*265 OR *524

sub12315-36011

sub90116-12053

main12315-36010i2AR#..ASA44,AVA4#201510-201705

(J),*347

sub12315-36011

sub90116-12053

main12315-36011i2ARFE..ASA44..RUP;2ARFXE..AVA42..RUS;2ARFE..ASA44..JPP..X..RUS201705-201810

*265 OR *524

main12315-36011i2ARFE..ASA44..RUP;2ARFXE..AVA42..RUS;2ARFE..ASA44..JPP..X..RUS201705-201810

(J),*347

main12315-37030i3ZRFAE..ZSA44..LHD;3ZRFE..ZSA42..JPP..X;3ZRFE..ZSA44..JPP..M;3ZRFAE..ZSA44..RHD..(G,M);3ZRFE..ZSA42..JPP..B..(G,M);3ZRFE..ZSA44..JPP..B..(G,X)201212-201810

main12315-53010i2WW..WWA42201510-201805

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-26050i2AD#..ALA49..6FC201212-201810

main12321-26060i2ADFTV..ALA49..JPP..X201212-201810

main12321-26070i2WW..WWA42201212-201805

main12321-36080i2ARFE..ASA44..RUP;2ARFE..ASA44..JPP..X..RUS201510-201810

main12321-36090i2ARFXE..AVA4#201510-201810

main12321-37070i3ZRFE..ZSA42..RUP..6F;3ZRFE..ZSA42..JPP..6F..(G,M)201510-201810

main12321-37080i3ZRFAE..ZSA44..6F;3ZRFE..ZSA44..JPP..6F..M201212-201810

main12321-37090i3ZRFE..ZSA44..RUP..B201212-201810

main12321-37110i3ZRFE..ZSA42..JPP..B201510-201810

main12321-37210i3ZRFAE..ZSA44..A201504-201810

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12304-36041i2ARFE..ASA44..X..EUR;2ARFE..ASA44..JPP..(G,M)201510-201810

main12304-37070i3ZRFAE..ZSA44..6F201212-201810

main12304-37110i3ZRFE..ZSA4#..RUP..B201212-201810

main12325-26030i1ADFTV,2ADFTV..ALA4#..6F201212-201810

main12325-26040i2AD#..ALA49..6FC201212-201810

main12325-36070i2ARFXE..AVA4#201510-201810

main12325-37200i3ZRFAE..ZSA44..A201504-201810

main12325-53020i2WW..WWA42201510-201805

12341SPACER, ENGINE MOUNTING

main12341-26011i1ADFTV,2AD#..ALA4#201212-201810

12351DAMPER, ENGINE MOUNTING

main12351-11023i3ZRFAE..ZSA44..A201212-201810

main12351-27030i2AD#..ALA49..6FC201212-201810

main12351-28110i2ARFXE..AVA4#201510-201810

main12351-37080i3ZRFE..ZSA42..RUP..6F;3ZRFE..ZSA44..6F..(G,X);3ZRFE..ZSA44..RUP..6F..M;3ZRFE..ZSA42..JPP..6F..(G,M)201212-201810

main12351-53010i2WW..WWA42201510-201805

main12351-63010i2ADFTV..ALA49..G,M;2ADFTV..ALA49..RUP201212-201810

12351BDAMPER, ENGINE MOUNTING

main12351-11023i3ZRFE..ZSA42..RUP..6F;3ZRFE..ZSA44..6F..(G,X);3ZRFE..ZSA44..RUP..6F..M;3ZRFE..ZSA42..JPP..6F..(G,M)201212-201810

main12351-23040i2ARFXE..AVA4#201510-201810

main12351-26010i1ADFTV..ALA40201212-201506

main12351-28090i3ZRFE..ZSA4#..RUP..B201212-201810

main12351-53020i1ADFTV..ALA40201506-201805

12351EDAMPER, ENGINE MOUNTING

main12351-22090i1ADFTV,2ADFTV..ALA4#..6F201212-201810

main12351-23040i2AD#..ALA49..6FC201212-201810

main12351-33020i2ARFE..ASA44..RUP;2ARFE..ASA44..JPP..X..RUS201510-201810

main12351-53030i2WW..WWA42201510-201805

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-26100i1ADFTV..ALA40201212-201510

main12361-26120i2AD#..ALA49..RUP;2ADFTV..ALA49..G,M201212-201810

main12361-28280i3ZRFAE..ZSA44..A201212-201810

main12361-36130i2ARFE..ASA44..RUP;2ARFE..ASA44..JPP..X..RUS201510-201810

main12361-36150i2ARFXE..AVA4#201510-201810

main12361-37180i3ZRFAE..ZSA44..6F;3ZRFE..ZSA42..JPP..6F..X;3ZRFE..ZSA44..JPP..6F..M201212-201810

main12361-37240i3ZRFAE..ZSA44..A201504-201810

main12361-53020i2WW..WWA42201510-201805

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-26060i1ADFTV..ALA40201212-201510

main12371-26070i1ADFTV,2ADFTV..ALA41,49..6F201212-201810

main12371-26080i2ADFHV..ALA49..JPP201212-201810

main12371-36100i2ARFE..ASA44..X..EUR;2ARFE..ASA44..JPP..(G,M)201510-201810

main12371-36190i2ARFXE..AVA4#201510-201810

main12371-37170i3ZRFE..ZSA42..RUP..6F;3ZRFE..ZSA42..JPP..6F..(G,M)201510-201810

main12371-37180i3ZRFE..ZSA44..6F..(G,X);3ZRFE..ZSA44..RUP..6F..M201212-201810

main12371-37190i3ZRFE..ZSA42..RUP..B201510-201810

main12371-37200i3ZRFE..ZSA44..RUP..B201212-201810

main12371-37340i3ZRFAE..ZSA44..A201504-201810

main12371-53020i2WW..WWA42201510-201805

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-26050i2ADFTV..ALA49..JPP..X201212-201810

main12372-26060i2ADFHV..ALA49..RUP201212-201810

main12372-36060i2ARFE..ASA44..X..EUR;2ARFE..ASA44..JPP..(G,M)201510-201810

main12372-36070i2ARFXE..AVA4#201510-201810

main12372-37250i3ZRFE..ZSA42..RUP..6F;3ZRFE..ZSA44..6F..(G,X);3ZRFE..ZSA44..RUP..6F..M;3ZRFE..ZSA42..JPP..6F..(G,M)201212-201810

main12372-37260i3ZRFE..ZSA4#..JPP..B201212-201810

main12372-37270i3ZRFAE..ZSA44..A201504-201810

main12372-53010i2WW..WWA42201510-201805

9010510301

main90105-10301

9010510494

main90105-10494

9010510550

main90105-10550

9010512366

main90105-12366

9010514174

main90105-14174

90105W0132

main90105-W0132

90105W0133

main90105-W0133

9011612050

main90116-12050

9011612053

main90116-12053

9011912402

main90119-12402

9017810028

main90178-10028

9017810029

main90178-10029

9017906007

main90179-06007

9017912068

main90179-12068

9017914073

main90179-14073

9155180840

main91551-80840

9155281260

main91552-81260

91552K1025

main91552-K1025

91552L1230

main91552-L1230

91552L1255

main91552-L1255

91552L1290

main91552-L1290

91553L1230

main91553-L1230

91553L1255

main91553-L1255

91672L1230

main91672-L1230

9415121241

main94151-21241

9415180800

main94151-80800

9415181200

main94151-81200

39 parts on this diagram · 13 diagrams in section
