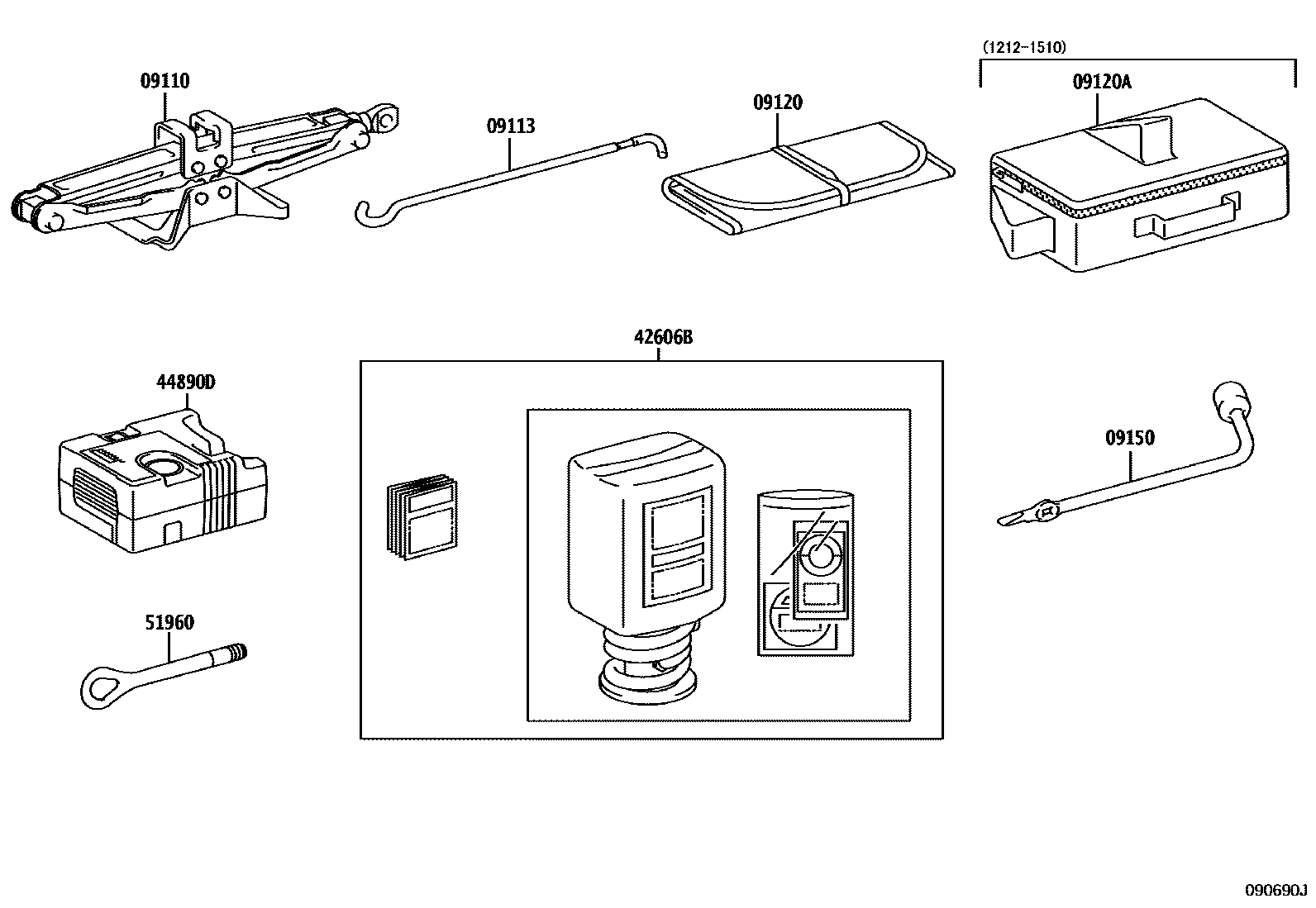

STANDARD TOOL

09110JACK ASSY

main09111-0E011iAVA4#..RUS201510-201602

JACK-WITH(FOR HYBRID VEHICLE)

main09111-0R030iASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,ZSA42..JPP..6F..(G,M)201605

main09111-0R030iWWA42,ZSA44..EUR201605-201810

JACK-WITH(EXCEPT FOR HYBRID VEHICLE)

main09111-0W140iALA49,ZSA44..RHD..(6F,6FC)..(G,X)..(DCRE,DCRL,HTWVM)201212-201510

JACK-WITHOUT

sub09111-0R030

main09111-0W140iALA49,ZSA44..RHD..(6F,6FC)..(G,X)..(DCRE,DCRL,HTWVM)201212-201510

JACK-WITHOUT&AUSTRALIA SPEC

sub09111-0R030

main09111-0W140iALA49,ZSA44..RHD..(6F,6FC)..(G,X)..(DCRE,DCRL,HTWVM)201212-201510

JACK-WITHOUT&NEW ZEALAND SPEC

sub09111-0R030

main09111-0W140iALA49,ASA44,ZSA4#..RUS201510-201604

JACK-WITH(EXCEPT FOR HYBRID VEHICLE)

sub09111-0R030

main09111-0W150iAVA4#..EUR201603-201810

JACK-WITH(FOR HYBRID VEHICLE)

sub09111-0W151

09113HANDLE, JACK

main09113-42030iALA4#,ZSA44..DCRE,DCRL,HTWVM201212-201510

JACK-WITHOUT&NORWAY SPEC

main09113-42030iALA4#,ZSA44..DCRE,DCRL,HTWVM201212-201510

JACK-WITHOUT&SWEDEN SPEC

main09113-42030iALA4#,ZSA44..DCRE,DCRL,HTWVM201212-201510

JACK-WITHOUT&DENMARK SPEC

main09113-42030iALA4#,ZSA44..DCRE,DCRL,HTWVM201212-201510

JACK-WITHOUT&ICELAND SPEC

main09113-42030iALA4#,ZSA44..DCRE,DCRL,HTWVM201212-201510

JACK-WITHOUT&RUSSIA SPEC

main09113-42030iALA4#,ZSA44..DCRE,DCRL,HTWVM201212-201510

JACK-WITHOUT&ISRAEL SPEC

main09113-42030iALA4#,ZSA44..DCRE,DCRL,HTWVM201212-201510

JACK-WITHOUT&TURKEY SPEC

main09113-42030iALA4#,ZSA44..DCRE,DCRL,HTWVM201212-201510

JACK-WITHOUT&BASIC PACKAGE&POWER DOOR LOCK-WITH

main09113-42030iALA40..LHD..(M,X);ALA49,ZSA44..LHD..(DCRE,DCRL,HTWVM)201212-201805

JACK-WITHOUT

main09113-42030iALA40..LHD..(M,X);ALA49,ZSA44..LHD..(DCRE,DCRL,HTWVM)201212-201510

JACK-WITHOUT&GERMANY SPEC

main09113-42030iALA40..LHD..(M,X);ALA49,ZSA44..LHD..(DCRE,DCRL,HTWVM)201212-201510

JACK-WITHOUT&ENGLAND SPEC

main09113-42030iALA40..LHD..(M,X);ALA49,ZSA44..LHD..(DCRE,DCRL,HTWVM)201212-201510

JACK-WITHOUT&IRELAND SPEC

main09113-42030iALA40..LHD..(M,X);ALA49,ZSA44..LHD..(DCRE,DCRL,HTWVM)201212-201510

JACK-WITHOUT&FRENCH SPEC

main09113-42030iALA40..LHD..(M,X);ALA49,ZSA44..LHD..(DCRE,DCRL,HTWVM)201212-201510

JACK-WITHOUT&SWEDEN,FINLAND,NORWAY,DENMARK SPEC

main09113-42030iAVA4#..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M)201510-201805

BASIC PACKAGE

main09113-42030iASA44..X..EUR;ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,AVA44..JPP..(DCRL,HTWC)..RUS201510-201810

09120BAG, TOOL

main09120-10040iALA40..LHD..(M,X);ALA49,ZSA44..LHD..(DCRE,DCRL,HTWVM)201212-201510

JACK-WITHOUT&NORWAY SPEC

main09120-10040iALA4#,ZSA44201212-201805

JACK-WITHOUT

main09120-10040iALA4#,ZSA44201212-201510

JACK-WITHOUT&GERMANY SPEC

main09120-10040iALA4#,ZSA44201212-201510

JACK-WITHOUT&ENGLAND SPEC

main09120-10040iALA4#,ZSA44201212-201510

JACK-WITHOUT&IRELAND SPEC

main09120-10040iALA4#,ZSA44201212-201510

JACK-WITHOUT&FRENCH SPEC

main09120-10040iALA4#,ZSA44201212-201510

JACK-WITHOUT&SWEDEN,FINLAND,NORWAY,DENMARK SPEC

main09120-10040iALA4#,ZSA44201212-201510

JACK-WITHOUT&SWEDEN SPEC

main09120-10040iALA4#,ZSA44201212-201510

JACK-WITHOUT&DENMARK SPEC

main09120-10040iALA4#,ZSA44201212-201510

JACK-WITHOUT&ICELAND SPEC

main09120-10040iALA4#,ZSA44201212-201510

JACK-WITHOUT&RUSSIA SPEC

main09120-10040iALA4#,ZSA44201212-201510

JACK-WITHOUT&ISRAEL SPEC

main09120-10040iALA4#,ZSA44201212-201510

JACK-WITHOUT&TURKEY SPEC

main09120-10040iALA4#,ZSA44201212-201510

JACK-WITHOUT&BASIC PACKAGE&POWER DOOR LOCK-WITH

main09120-10040iAVA4#..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M)201510-201805

BASIC PACKAGE

main09120-10040iASA44..X..EUR;ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,AVA44..JPP..(DCRL,HTWC)..RUS201510-201810

09120ACASE, TOOL

main09120-42050iALA4#,ZSA44..DCRE,DCRL,HTWVM201212-201510

NON-WVTA&SPARE TIRE-165/80D17(REINFORCED TEMPORARY)

main09120-42050iALA4#,ZSA44..DCRE,DCRL,HTWVM201212-201510

SPARE TIRE-GROUND TIRE

main09120-42050iALA4#,ZSA44..DCRE,DCRL,HTWVM201212-201510

SPARE TIRE-165/80R17(TEMPORARY)

main09120-42050iALA4#,ZSA44..DCRE,DCRL,HTWVM201212-201510

SPARE TIRE-165/80D17(REINFORCED TEMPORARY)

main09120-42050iALA4#,ZSA44..DCRE,DCRL,HTWVM201212-201510

SPARE TIRE-165/80D17ST(TEMPORARY)

09150WRENCH, HUB NUT BOX

main09150-42010iALA4#,ZSA44201212-201805

JACK-WITHOUT

main09150-42010iAVA4#..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M)201510-201805

BASIC PACKAGE

main09150-42010iAVA4#..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M)201510-201805

TIRE & DISKWHEEL-225/65R17H A/S ALMINUM 7.0J

main09150-42010iASA44..X..EUR;ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,AVA44..JPP..(DCRL,HTWC)..RUS201510-201810

42606BREPAIR KIT, TUBELESS TIRE

main42606-50040iALA4#,ZSA44..DCRE,DCRL,HTWVM201212-201510

SPARE TIRE-GROUND TIRE

main42606-50040iALA4#,ZSA44..DCRE,DCRL,HTWVM201212-201510

SPARE TIRE-165/80D17(REINFORCED TEMPORARY)

main42606-50040iALA4#,ZSA44..DCRE,DCRL,HTWVM201212-201510

SPARE TIRE-165/80D17ST(TEMPORARY)

main42606-50040iAVA4#,WWA42,ZSA44..EUR201510-201810

44890DCOMPRESSOR ASSY, AIR

main44890-42030iALA4#,ZSA44..DCRE,DCRL,HTWVM201212-201510

NON-WVTA&SPARE TIRE-165/80D17(REINFORCED TEMPORARY)

sub44890-42031

main44890-42030iALA4#,ZSA44..DCRE,DCRL,HTWVM201212-201510

SPARE TIRE-GROUND TIRE

sub44890-42031

main44890-42030iALA4#,ZSA44..DCRE,DCRL,HTWVM201212-201510

SPARE TIRE-165/80R17(TEMPORARY)

sub44890-42031

main44890-42030iALA4#,ZSA44..DCRE,DCRL,HTWVM201212-201510

SPARE TIRE-165/80D17(REINFORCED TEMPORARY)

sub44890-42031

main44890-42030iALA4#,ZSA44..DCRE,DCRL,HTWVM201212-201510

SPARE TIRE-165/80D17ST(TEMPORARY)

sub44890-42031

main44890-42030iAVA4#,WWA42,ZSA44..EUR201510-201810

sub44890-42031

51960HOOK ASSY, FRONT

main51961-42040iALA4#,ZSA44201212-201810

8 parts on this diagram · 1 diagram in section
