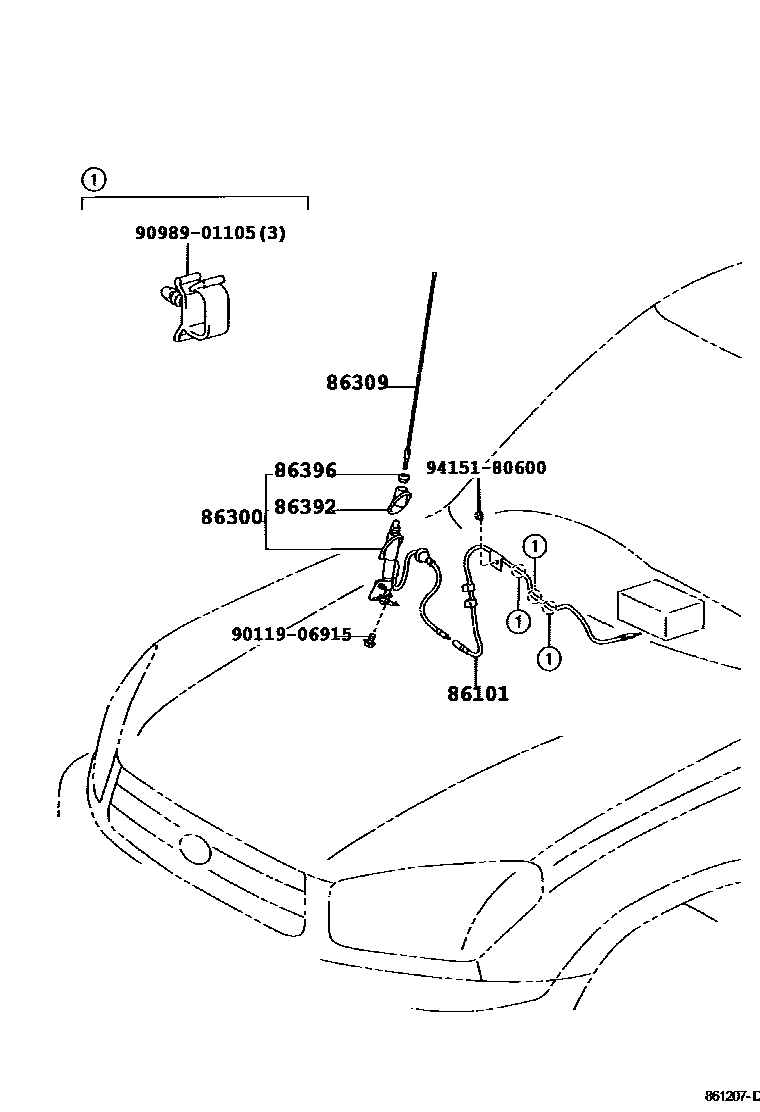

ANTENNA

86101CORD SUB-ASSY, ANTENNA

main86101-42130iACA2#200008-200307

86300ANTENNA ASSY, W/HOLDER

main86300-42070iACA2#200008-200307

sub86300-42240

86309POLE SUB-ASSY, PILLAR ANTENNA

main86309-42040iACA2#200008-200309

sub86309-0C020

main86309-42041iACA2#200309

sub86309-0C020

86392ORNAMENT, ANTENNA

main86392-42010iACA2#200008-200307

86396NUT, ANTENNA

main86396-16020iACA2#200008-200307

9011906915

main90119-06915

9098901105

main90989-01105

9415180600

main94151-80600

8 parts on this diagram · 1 diagram in section
