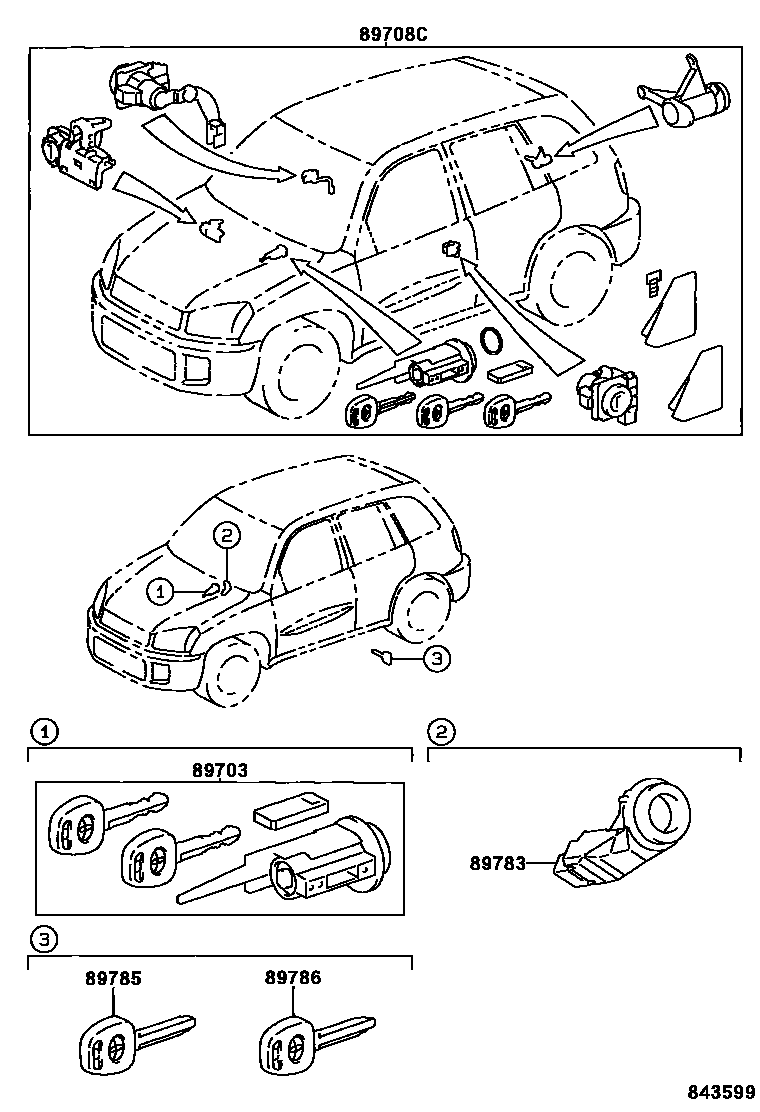

ANTI-THEFT DEVICE

0001 1 0002 1

89703CYLINDER & KEY SET, IGNITION W/TRANSPONDER

main89703-42080iACA2#200008-200307

89708CCYLINDER SET, LOCK W/TRANSPONDER KEY TRANSMITTER

main69005-42350iACA2#¥29,500200307

main89708-42040iACA2#200008-200307

89783AMPLIFIER, TRANSPONDER KEY

main89783-52010iACA2#¥10,900200008-200307

main89783-52040iACA2#¥10,900200307

sub89783-52041¥10,900

89785TRANSMITTER, TRANSPONDER KEY MASTER

main89785-26020iACA2#¥3,720200008-200307

main89785-60160iACA2#¥2,570200307

89786TRANSMITTER, TRANSPONDER KEY SUB

main89786-60050iACA2#¥3,720200008-200307

main89786-60170iACA2#¥3,090200307

5 parts on this diagram · 2 diagrams in section
