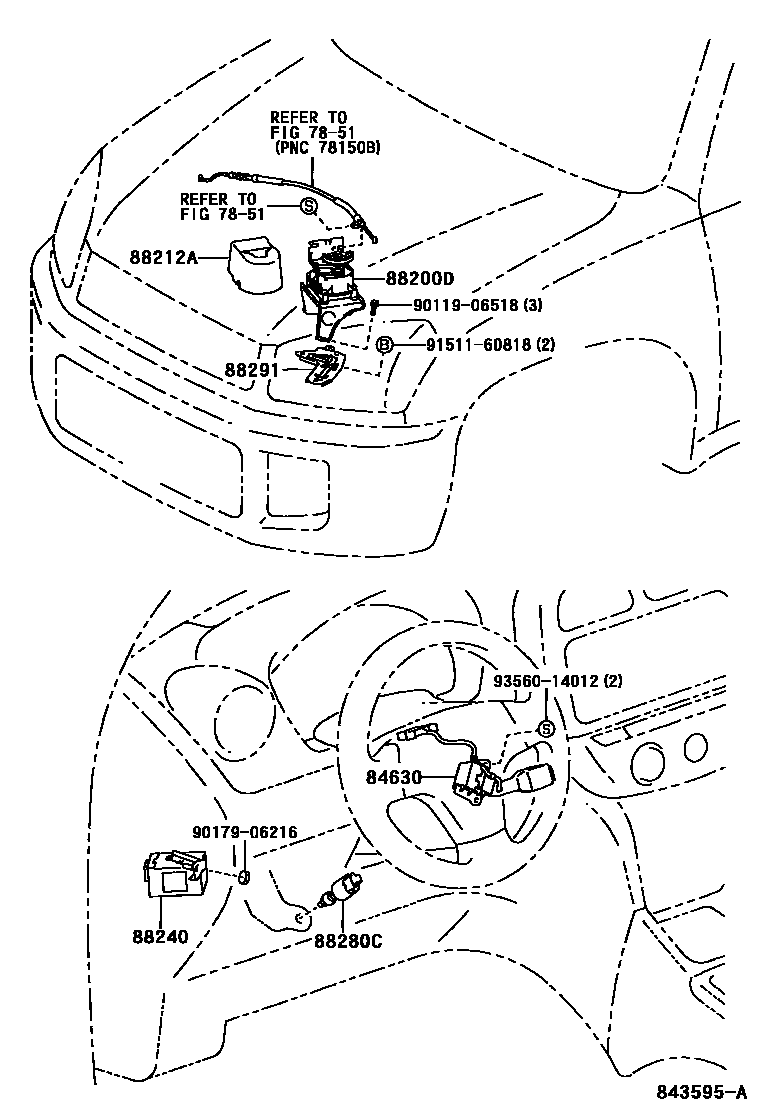

CRUISE CONTROL (AUTO DRIVE)

0001 1 0002 1

7851

84630SWITCH ASSY, CRUISE CONTROL MAIN

main84630-20150iACA2#200008-200307

sub84630-20151

88200DACTUATOR ASSY, CRUISE CONTROL

main88200-42020iACA2#200008-200307

88212ACOVER, CRUISE CONTROL ACTUATOR

main88212-42010iACA2#200008-200307

88240COMPUTER ASSY, CRUISE CONTROL

main88240-42040iACA21..ATM200008-200307

main88240-42050iACA26;ACA21..MTM200008-200307

88280CSWITCH ASSY, CLUTCH

main88280-14030iACA2#..MTM200008-200511

88291BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1

main17119-22050iACA2#200008-200307

9011906518

main90119-06518

9017906216

main90179-06216

9151160818

main91511-60818

9356014012

main93560-14012

11 parts on this diagram · 2 diagrams in section
