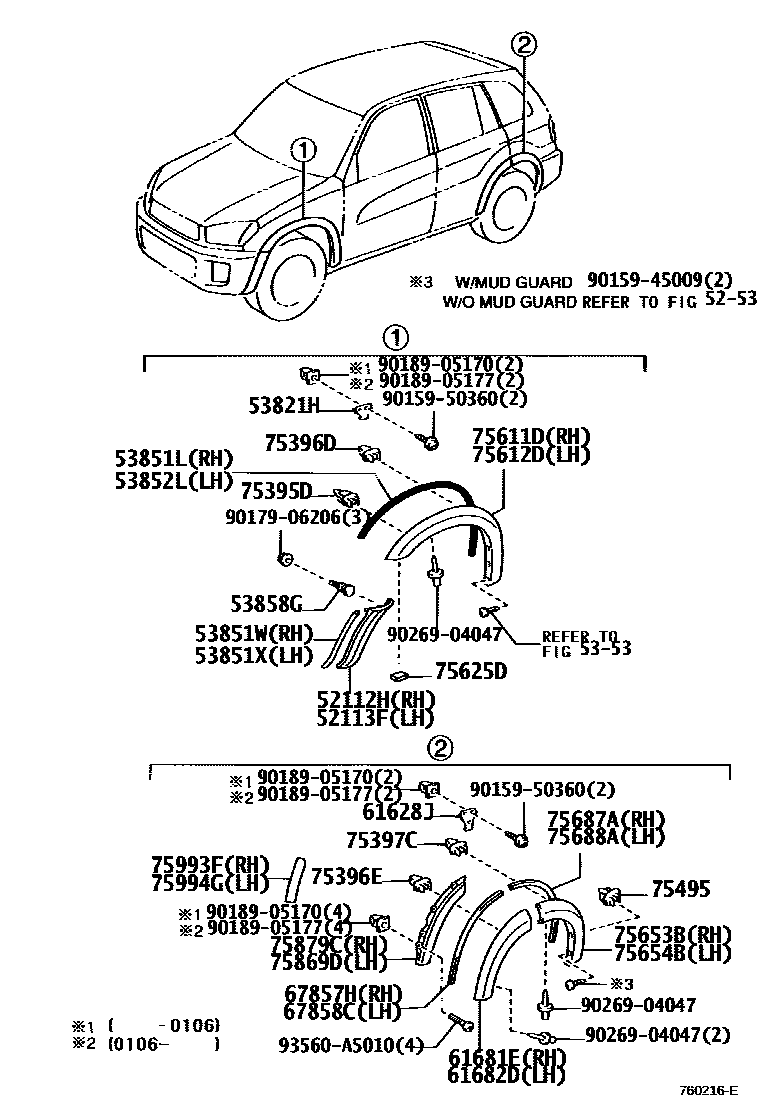

SPOILER & SIDE MUDGUARD
52112HEXTENSION, FRONT BUMPER, RH
UNPAINTED
BODY COLOR =2-TON,GRAY MM,1D4 ,1E0 ,202 ,3Q3 ,6T6 ,8M6
*104,GRAY MM,056 ,1C6 ,202 ,3P1 ,586 ,6S3 ,8M6
52113FEXTENSION, FRONT BUMPER, LH
UNPAINTED
*104,GRAY MM,056 ,1C6 ,202 ,3P1 ,586 ,6S3 ,8M6
BODY COLOR =2-TON,GRAY MM,1D4 ,1E0 ,202 ,3Q3 ,6T6 ,8M6
5253
5353
53821HBRACKET, FRONT FENDER, REAR
53851LPAD, FRONT WHEEL OPENING EXTENSION, RH
GRAY,040 ,064 ,1D4 ,1E0 ,202 ,3Q3 ,4R4 ,6T6 ,8M6,EXCEPT COLOR NO.A050
GRAY,040 ,064 ,1D4 ,1E0 ,202 ,3Q3 ,4R4 ,6R4 ,6T6 ,8M6,EXCEPT COLOR NO.A050
BLACK,202 ,3Q3 ,6R4 ,8M6,EXCEPT COLOR NO.A050
BLACK,202 ,3Q3 ,8M6,EXCEPT COLOR NO.A050
53851WPAD, FRONT WHEEL OPENING EXTENSION, NO.1
*104,GRAY,056 ,1C6 ,1D4 ,202 ,3P1 ,586 ,6S3 ,8M6
GRAY,040 ,064 ,1D4 ,1E0 ,202 ,3Q3 ,4R4 ,6R4 ,6T6 ,8M6,EXCEPT COLOR NO.A050
GRAY,040 ,064 ,1D4 ,1E0 ,202 ,3Q3 ,4R4 ,6T6 ,8M6,EXCEPT COLOR NO.A050
BLACK,202 ,3Q3 ,8M6,EXCEPT COLOR NO.A050
BLACK,202 ,3Q3 ,6R4 ,8M6,EXCEPT COLOR NO.A050
WHITE,064
WHITE,064,COLOR NO.A050 ONLY
53851XPAD, FRONT WHEEL OPENING EXTENSION, NO.1
GRAY,040 ,064 ,1D4 ,1E0 ,202 ,3Q3 ,4R4 ,6R4 ,6T6 ,8M6,EXCEPT COLOR NO.A050
GRAY,040 ,064 ,1D4 ,1E0 ,202 ,3Q3 ,4R4 ,6T6 ,8M6,EXCEPT COLOR NO.A050
BLACK,202 ,3Q3 ,8M6,EXCEPT COLOR NO.A050
BLACK,202 ,3Q3 ,6R4 ,8M6,EXCEPT COLOR NO.A050
*104,GRAY,056 ,1C6 ,1D4 ,202 ,3P1 ,586 ,6S3 ,8M6,RH
*104,GRAY,056 ,1D4 ,202 ,3P1 ,586 ,6S3 ,8M6,RH
*104,GRAY,056 ,1C6 ,1D4 ,202 ,3P1 ,586 ,6S3 ,8M6,LH
*104,GRAY,056 ,1D4 ,202 ,3P1 ,586 ,6S3 ,8M6,LH
WHITE,064,COLOR NO.A050 ONLY
WHITE,064,LH
53852LPAD, FRONT WHEEL OPENING EXTENSION, LH
GRAY,040 ,064 ,1D4 ,1E0 ,202 ,3Q3 ,4R4 ,6R4 ,6T6 ,8M6,EXCEPT COLOR NO.A050
GRAY,040 ,064 ,1D4 ,1E0 ,202 ,3Q3 ,4R4 ,6T6 ,8M6,EXCEPT COLOR NO.A050
BLACK,202 ,3Q3 ,8M6,EXCEPT COLOR NO.A050
BLACK,202 ,3Q3 ,6R4 ,8M6,EXCEPT COLOR NO.A050
WHITE,064,COLOR NO.A050 ONLY
53858GBOLT, WHEEL OPENING SET
61628JEXTENSION, QUARTER OUTER PANEL, FRONT
61681EEXTENSION, REAR WHEEL OPENING, NO.1 RH
UNPAINTED
BODY COLOR =2-TON,GRAY MM,1D4 ,1E0 ,202 ,3Q3 ,6T6 ,8M6
*104,GRAY MM,056 ,1C6 ,202 ,3P1 ,586 ,6S3 ,8M6
61682DEXTENSION, REAR WHEEL OPENING, NO.1 LH
UNPAINTED
*104,GRAY MM,056 ,1C6 ,202 ,3P1 ,586 ,6S3 ,8M6
BODY COLOR =2-TON,GRAY MM,1D4 ,1E0 ,202 ,3Q3 ,6T6 ,8M6
67857HPROTECTOR, REAR DOOR PANEL, RH
GRAY,040 ,064 ,1D4 ,1E0 ,202 ,3Q3 ,4R4 ,6T6 ,8M6,EXCEPT COLOR NO.A050
*104,GRAY,056 ,1C6 ,1D4 ,202 ,3P1 ,586 ,6S3 ,8M6
GRAY,040 ,064 ,1D4 ,1E0 ,202 ,3Q3 ,4R4 ,6R4 ,6T6 ,8M6,EXCEPT COLOR NO.A050
BLACK,202 ,3Q3 ,6R4 ,8M6,EXCEPT COLOR NO.A050
BLACK,202 ,3Q3 ,8M6,EXCEPT COLOR NO.A050
COLOR NO.A050 ONLY
WHITE,064
WHITE,064,EXCEPT COLOR NO.A050
67858CPROTECTOR, REAR DOOR PANEL, LH
GRAY,040 ,064 ,1D4 ,1E0 ,202 ,3Q3 ,4R4 ,6R4 ,6T6 ,8M6,EXCEPT COLOR NO.A050
GRAY,040 ,064 ,1D4 ,1E0 ,202 ,3Q3 ,4R4 ,6T6 ,8M6,EXCEPT COLOR NO.A050
*104,GRAY,056 ,1C6 ,1D4 ,202 ,3P1 ,586 ,6S3 ,8M6
BLACK,202 ,3Q3 ,8M6,EXCEPT COLOR NO.A050
BLACK,202 ,3Q3 ,6R4 ,8M6,EXCEPT COLOR NO.A050
COLOR NO.A050 ONLY
WHITE,064
WHITE,064,EXCEPT COLOR NO.A050
75395DCLIP, OUTSIDE MOULDING, NO.1
75396DCLIP, OUTSIDE MOULDING, NO.2
75396ECLIP, OUTSIDE MOULDING, NO.2
75397CCLIP, OUTSIDE MOULDING, NO.3
75495CLIP, OUTSIDE MOULDING, NO.4
75611DMOULDING, FRONT FENDER, OUTSIDE FRONT RH
UNPAINTED
*104,GRAY MM,056 ,1C6 ,202 ,3P1 ,586 ,6S3 ,8M6
BODY COLOR =2-TON,GRAY MM,1D4 ,1E0 ,202 ,3Q3 ,6T6 ,8M6
75612DMOULDING, FRONT FENDER, OUTSIDE FRONT LH
UNPAINTED
*104,GRAY MM,056 ,1C6 ,202 ,3P1 ,586 ,6S3 ,8M6
BODY COLOR =2-TON,GRAY MM,1D4 ,1E0 ,202 ,3Q3 ,6T6 ,8M6
75625DPAD, FRONT FENDER OUTSIDE MOULDING, UPPRER
75653BMOULDING, QUARTER OUTSIDE, RH NO.3
UNPAINTED
BODY COLOR =2-TON,GRAY MM,1D4 ,1E0 ,202 ,3Q3 ,6T6 ,8M6
*104,GRAY MM,056 ,1C6 ,202 ,3P1 ,586 ,6S3 ,8M6
75654BMOULDING, QUARTER, OUTSIDE NO.4
UNPAINTED
BODY COLOR =2-TON,GRAY MM,1D4 ,1E0 ,202 ,3Q3 ,6T6 ,8M6
*104,GRAY MM,056 ,1C6 ,202 ,3P1 ,586 ,6S3 ,8M6
75687APROTECTOR, QUARTER MOULDING, LOWER REAR RH
GRAY,040 ,064 ,1D4 ,1E0 ,202 ,3Q3 ,4R4 ,6T6 ,8M6,EXCEPT COLOR NO.A050
GRAY,040 ,064 ,1D4 ,1E0 ,202 ,3Q3 ,4R4 ,6R4 ,6T6 ,8M6,EXCEPT COLOR NO.A050
*104,GRAY,056 ,1D4 ,202 ,3P1 ,586 ,6S3 ,8M6
*104,GRAY,056 ,1C6 ,1D4 ,202 ,3P1 ,586 ,6S3 ,8M6
BLACK,202 ,3Q3 ,8M6,EXCEPT COLOR NO.A050
BLACK,202 ,3Q3 ,6R4 ,8M6,EXCEPT COLOR NO.A050
GRAY,040 ,1D4 ,1E0 ,202 ,3Q3 ,4R4 ,6T6 ,8M6,EXCEPT COLOR NO.A050
GRAY,040 ,1D4 ,1E0 ,202 ,3Q3 ,4R4 ,6R4 ,6T6 ,8M6,EXCEPT COLOR NO.A050
BLACK,202 ,8M6,EXCEPT COLOR NO.A050
BLACK,202 ,6R4 ,8M6,EXCEPT COLOR NO.A050
WHITE,064
WHITE,064,COLOR NO.A050 ONLY
75688APROTECTOR, QUARTER MOULDING, LOWER REAR LH
GRAY,040 ,1D4 ,1E0 ,202 ,3Q3 ,4R4 ,6T6 ,8M6,BLACK
GRAY,040 ,1D4 ,1E0 ,202 ,3Q3 ,4R4 ,6R4 ,6T6 ,8M6,BLACK
*104,GRAY,056 ,1D4 ,202 ,3P1 ,586 ,6S3 ,8M6
*104,GRAY,056 ,1C6 ,1D4 ,202 ,3P1 ,586 ,6S3 ,8M6
BLACK,202 ,3Q3 ,6R4 ,8M6,BLACK
BLACK,202 ,3Q3 ,8M6,BLACK
GRAY,040 ,1D4 ,1E0 ,202 ,3Q3 ,4R4 ,6R4 ,6T6 ,8M6,BLACK
GRAY,040 ,1D4 ,1E0 ,202 ,3Q3 ,4R4 ,6T6 ,8M6,BLACK
BLACK,202 ,8M6,BLACK
BLACK,202 ,6R4 ,8M6,BLACK
WHITE,064,WHITE
WHITE,064
75869DRETAINER, QUARTER OPENING, LH
75879CRETAINER, QUARTER OPENING, RH
75993FSTRIPE, QUARTER, FRONT RH
75994GSTRIPE, QUARTER, FRONT LH
9015945009
9015950360
9017906206
9018905170
9018905177
9026904047
93560A5010
38 parts on this diagram · 2 diagrams in section
