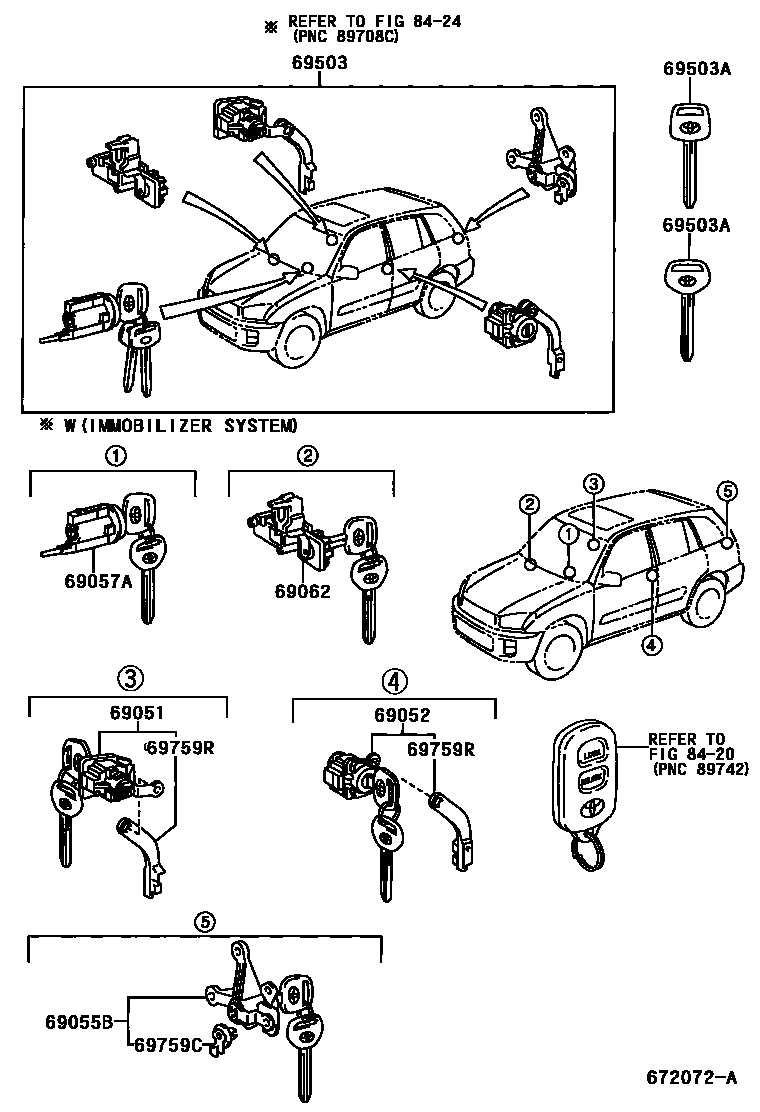

LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-42120iACA2#200008-200307

sub69051-42100

main69051-42160iACA2#200307-200511

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-42100iACA2#200307-200511

main69052-42120iACA2#200008-200307

sub69052-42100

69055BCYLINDER & KEY SET, BACK DOOR LOCK

main69055-42070iACA2#200307-200511

main69055-42080iACA2#200008-200307

sub69055-42070

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-42140iACA2#200307-200511

main69057-42150iACA2#200008-200307

main69057-42250iACA2#200307-200511

W(IMMOBILIZER)

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-42020iACA2#200307-200511

main69056-42030iACA2#200008-200307

sub69056-42020

69503CYLINDER SET, LOCK

main69005-42250iACA2#200008-200307

main69005-42340iACA2#200307

69503AKEY, BLANK

main90999-00185iACA2#200008-200307

MASTER KEY,W(*68)

main90999-00187iACA2#200008-200307

SUB KEY,W(*68)

sub90999-00200

main90999-00199iACA2#200307

MASTER KEY,W(*68)

main90999-00200iACA2#200307

SUB KEY,W(*68)

69759CSNAP, BACK DOOR LOCK CYLINDER

main69759-22080iACA2#200008-200307

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-42010iACA2#200008-200307

RH

main69759-42020iACA2#200008-200307

LH

8420

8424

11 parts on this diagram · 1 diagram in section
