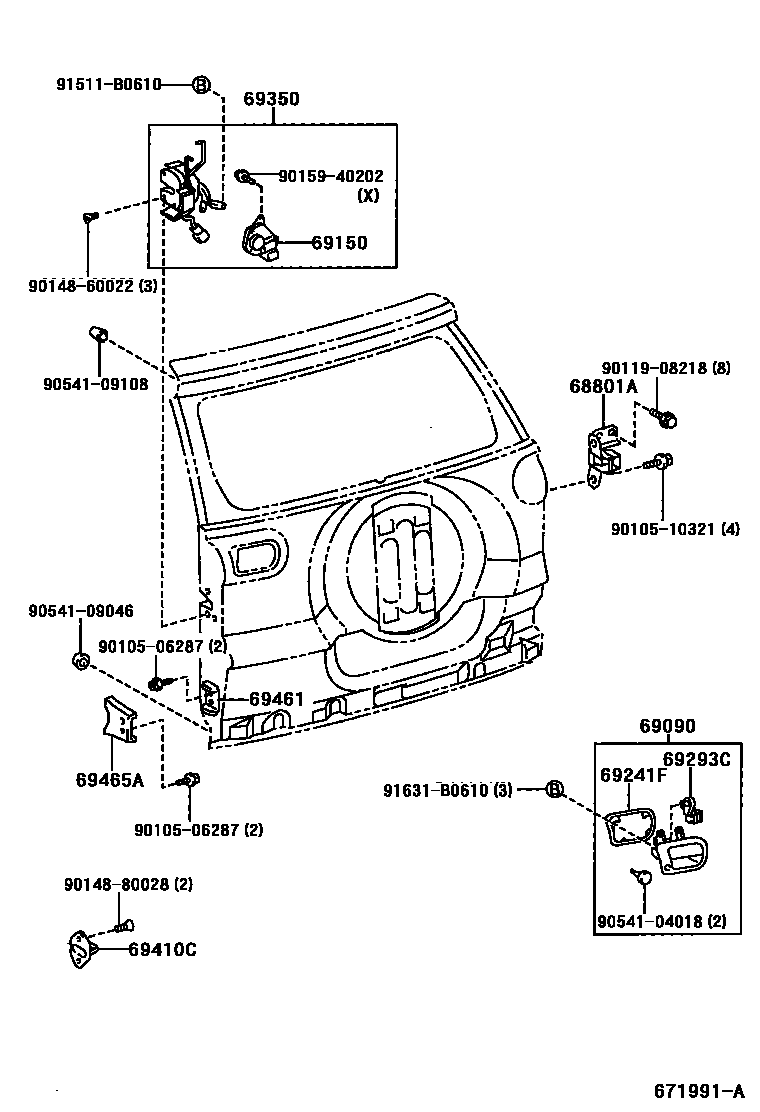

BACK DOOR LOCK & HINGE
69090HANDLE ASSY, BACK DOOR, OUTSIDE
69150ACTUATOR ASSY, BACK DOOR LOCK
W(POWER DOOR LOCK)
69241FPAD, DOOR OUTSIDE HANDLE
69293CSNAP, BACK DOOR HANDLE
69350LOCK ASSY, BACK DOOR
W(POWER DOOR LOCK)
69410CPLATE ASSY, BACK DOOR LOCK STRIKER
sub69410-60010
69461STOPPER, BACK DOOR SIDE MALE, RH
sub69461-42012
69465ASTOPPER, BACK DOOR SIDE FEMALE
9010506287
main90105-06287
9010510321
main90105-10321
9011908218
main90119-08218
9014860022
main90148-60022
9014880028
main90148-80028
9015940202
main90159-40202
9054104018
main90541-04018
9054109046
main90541-09046
9054109108
main90541-09108
91511B0610
main91511-B0610
91631B0610
main91631-B0610
20 parts on this diagram · 1 diagram in section
