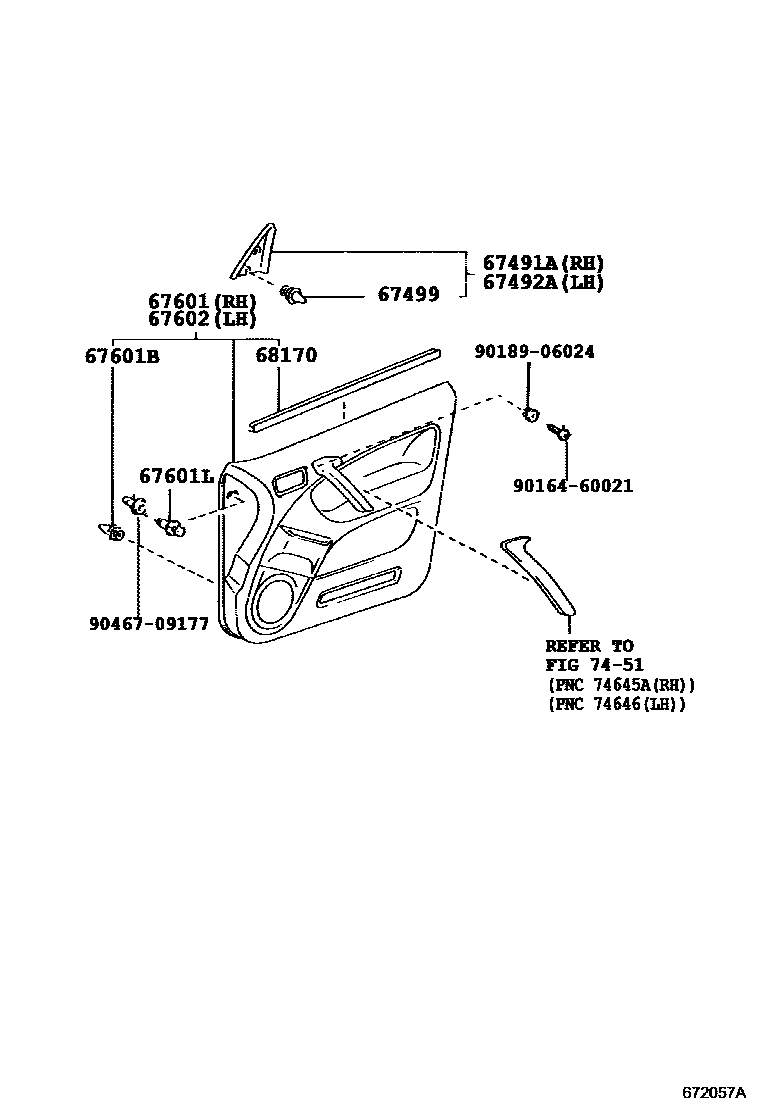

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1 0004 1 0005 1

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-42030iACA2#¥1,260200008-200307

sub67491-42040¥1,260

main67491-42040iACA2#¥1,260200008-200307

W(TWEETER SPEAKER)

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-42030iACA2#¥1,260200008-200307

sub67492-42040¥1,260

main67492-42040iACA2#¥1,260200008-200307

W(TWEETER SPEAKER)

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67771-17020iACA2#¥100200008-200307

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-42530-B1iACA2#200208-200307

DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),BLUE GRAY,TRIM1#

main67610-42550-B0iACA2#200008-200307

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),BLUE GRAY,TRIM1#

main67610-42550-E0iACA2#200008-200307

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),FAWN,TRIM4#

main67610-42560-B0iACA2#200008-200307

DOOR TRIM=TYPE B-*104,BLUE GRAY,TRIM1#

main67610-42560-E0iACA2#200008-200307

DOOR TRIM=TYPE B-*104,FAWN,TRIM4#

main67610-42590-B1iACA2#200008-200307

DOOR TRIM=TYPE A-*104,BLUE GRAY,TRIM1#

main67610-42620-B0iACA2#200307-200311

DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM1#

sub67610-42621¥39,600

main67610-42621-B0iACA2#200311-200511

DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM1#

main67610-42630-B2iACA2#200307-200311

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),DK.GRAY,TRIM1#

sub67610-42631¥39,600

main67610-42630-E1iACA2#200307-200311

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),FAWN,TRIM4#

sub67610-42631¥39,600

main67610-42631-B2iACA2#200311-200511

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),DK.GRAY,TRIM1#

sub67610-42632

main67610-42631-E1iACA2#200311-200511

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),FAWN,TRIM4#

sub67610-42632

main67610-42640-B2iACA2#200307-200311

DOOR TRIM=TYPE B-*104,DK.GRAY,TRIM1#

sub67610-42641¥39,600

main67610-42640-E1iACA2#200307-200311

DOOR TRIM=TYPE B-*104,FAWN,TRIM4#

sub67610-42641¥39,600

main67610-42641-B2iACA2#200311-200511

DOOR TRIM=TYPE B-*104,DK.GRAY,TRIM1#

sub67610-42642

main67610-42641-E1iACA2#200311-200511

DOOR TRIM=TYPE B-*104,FAWN,TRIM4#

sub67610-42642

main67610-42680-B0iACA2#200307-200511

DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),DK.GRAY,TRIM1#

main67610-42680-E0iACA2#200307-200511

DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),FAWN,TRIM4#

main67610-42690-B0iACA2#200307-200511

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),DK.GRAY,TRIM1#

67601BCLIP(FOR FRONT DOOR TRIM BOARD)

main90467-09206iACA2#¥80200008-200511

67601LCLIP(FOR FRONT DOOR TRIM BOARD)

main90467-06133-B7iACA2#200008-200307

BLUE GRAY,TRIM1#

sub90467-06133¥230

main90467-06133-B8iACA2#200307-200511

DK.GRAY,TRIM1#

sub90467-06133¥230

main90467-06133-E5iACA2#200008-200511

FAWN,TRIM4#

sub90467-06133¥230

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-42530-B1iACA2#200208-200307

DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),BLUE GRAY,TRIM1#

main67620-42550-B0iACA2#200008-200307

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),BLUE GRAY,TRIM1#

main67620-42550-E0iACA2#200008-200307

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),FAWN,TRIM4#

main67620-42560-B0iACA2#200008-200307

DOOR TRIM=TYPE B-*104,BLUE GRAY,TRIM1#

main67620-42560-E0iACA2#200008-200307

DOOR TRIM=TYPE B-*104,FAWN,TRIM4#

main67620-42590-B1iACA2#200008-200307

DOOR TRIM=TYPE A-*104,BLUE GRAY,TRIM1#

main67620-42620-B0iACA2#200307-200311

DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM1#

sub67620-42621¥41,200

main67620-42621-B0iACA2#200311-200511

DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM1#

main67620-42630-B2iACA2#200307-200311

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),DK.GRAY,TRIM1#

sub67620-42631¥39,600

main67620-42630-E1iACA2#200307-200311

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),FAWN,TRIM4#

sub67620-42631¥39,600

main67620-42631-B2iACA2#200311-200511

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),DK.GRAY,TRIM1#

sub67620-42632

main67620-42631-E1iACA2#200311-200511

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),FAWN,TRIM4#

sub67620-42632

main67620-42640-B2iACA2#200307-200311

DOOR TRIM=TYPE B-*104,DK.GRAY,TRIM1#

sub67620-42641¥39,600

main67620-42640-E1iACA2#200307-200311

DOOR TRIM=TYPE B-*104,FAWN,TRIM4#

sub67620-42641¥39,600

main67620-42641-B2iACA2#200311-200511

DOOR TRIM=TYPE B-*104,DK.GRAY,TRIM1#

sub67620-42642

main67620-42641-E1iACA2#200311-200511

DOOR TRIM=TYPE B-*104,FAWN,TRIM4#

sub67620-42642

main67620-42680-B0iACA2#200307-200511

DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),DK.GRAY,TRIM1#

main67620-42680-E0iACA2#200307-200511

DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),FAWN,TRIM4#

main67620-42690-B0iACA2#200307-200511

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),DK.GRAY,TRIM1#

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68171-42040iACA2#¥3,960200008-200511

RH

main68172-42040iACA2#¥3,960200008-200511

LH

7451

9016460021

main90164-60021¥70

9018906024

main90189-06024¥110

9046709177

main90467-09177¥130

12 parts on this diagram · 5 diagrams in section
