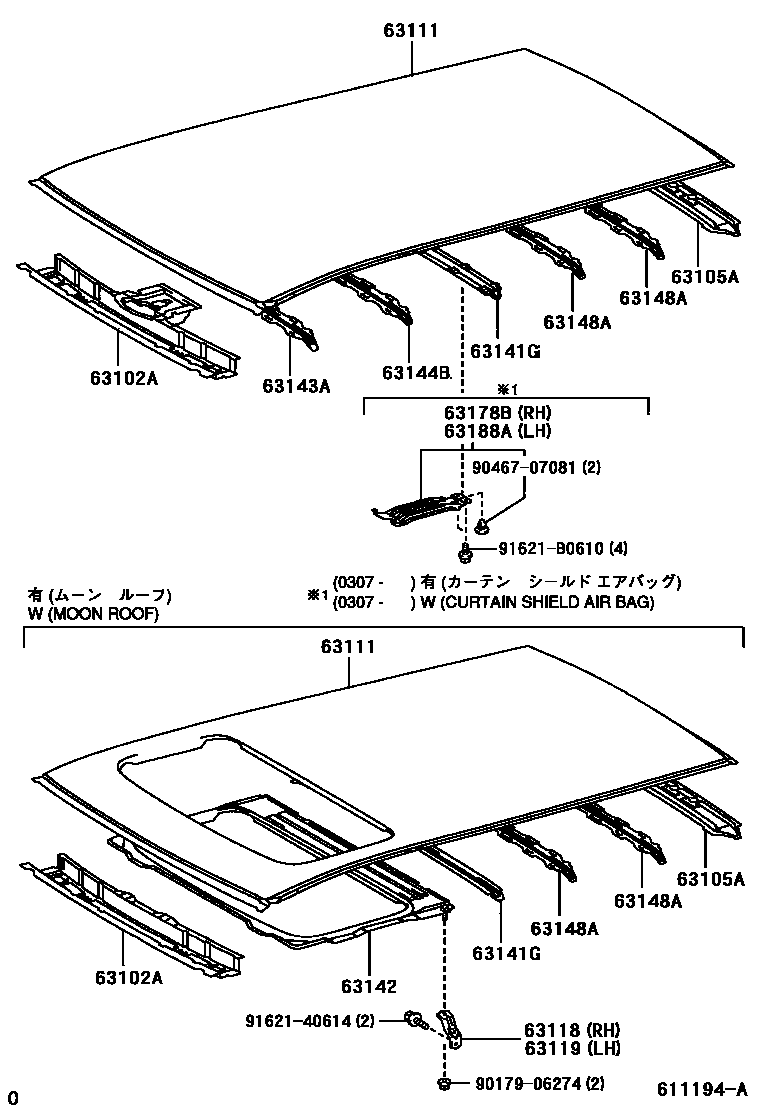

ROOF PANEL & BACK PANEL

0001 1ROOF PANEL 0002 1MOON ROOF 0003 1ROOF RACK

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-42010iACA2#200008-200307

main63102-42020iACA2#200008-200307

W(MOON ROOF)

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-42020iACA2#200008-200307

63111PANEL, ROOF

main63111-42110iACA2#200008-200307

main63111-42120iACA2#200008-200307

W(MOON ROOF)

63118SUPPORT, ROOF PANEL, RH

main63118-42030iACA2#200008-200307

main63118-42050iACA2#200307

63119SUPPORT, ROOF PANEL, LH

main63118-42030iACA2#200008-200307

main63118-42050iACA2#200307

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-42050iACA2#200008-200303

sub63141-42051

main63141-42051iACA2#200303-200307

main63141-42060iACA2#200008-200307

W(MOON ROOF)

main63141-42070iACA2#200307

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-42900iACA2#200008-200307

63143AREINFORCEMENT, ROOF PANEL

main63143-42040iACA2#200008-200307

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-42020iACA2#200008-200303

sub63144-42021

main63144-42021iACA2#200303-200307

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-42020iACA2#200008-200307

63178BREINFORCEMENT, ROOF PANEL, RH NO.8

main63103-42010iACA2#200312

W(CURTAIN SHIELD AIR BAG)

main63178-42010iACA2#200307-200312

W(CURTAIN SHIELD AIR BAG)

63188AREINFORCEMENT, ROOF PANEL, LH NO.8

main63106-42010iACA2#200312

main63188-42010iACA2#200307-200312

W(CURTAIN SHIELD AIR BAG)

9017906274

main90179-06274

9046707081

main90467-07081

9162140614

main91621-40614

91621B0610

main91621-B0610

16 parts on this diagram · 3 diagrams in section
