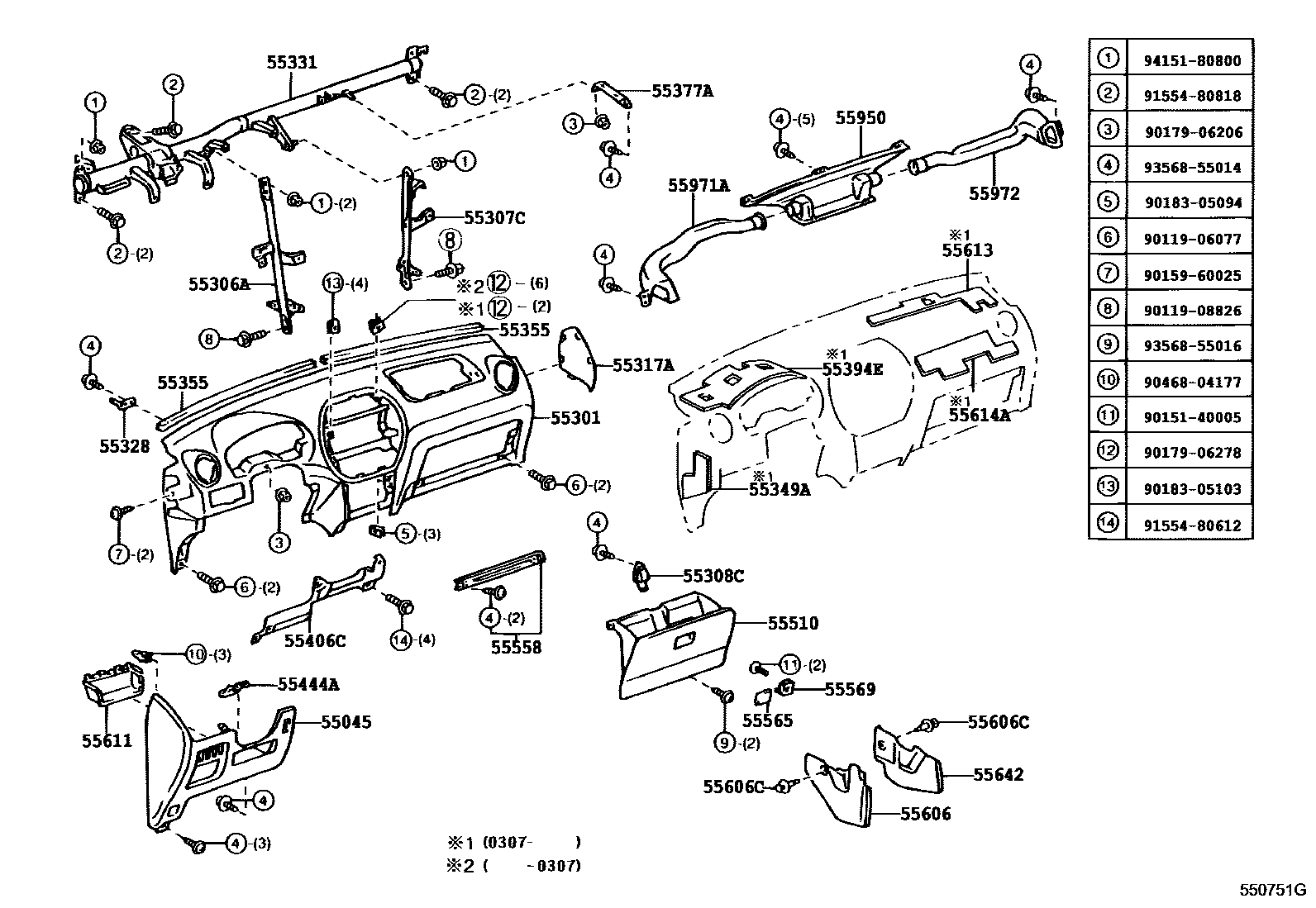

INSTRUMENT PANEL & GLOVE COMPARTMENT
55045PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER
BLUE GRAY,TRIM1#
DK.GRAY,TRIM1#
FAWN,TRIM4#
55301PANEL SUB-ASSY, INSTRUMENT
DK.GRAY,TRIM1#
SANDAL WOOD,TRIM4#
DK.GRAY,TRIM1#
SANDAL WOOD,TRIM4#
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
55317APANEL, INSTRUMENT SIDE, RH
55328PIN, INSTRUMENT PANEL, NO.1
55331REINFORCEMENT, INSTRUMENT PANEL
55349ACUSHION, INSTRUMENT PANEL
55355CUSHION, INSTRUMENT PANEL, NO.1
55377ABRACKET, INSTRUMENT PANEL MOUNTING, NO.2
55394ECUSHION, INSTRUMENT PANEL, LOWER NO.4
55406CINSERT SUB-ASSY, INSTRUMENT PANEL, LOWER LH
55444ASPRING, INSTRUMENT PANEL BOX
55510DOOR ASSY, GLOVE COMPARTMENT
55558REINFORCEMENT, GLOVE COMPARTMENT DOOR
55565HANDLE, GLOVE COMPARTMENT DOOR LOCK
55569COVER, GLOVE COMPARTMENT DOOR LOCK
55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1
55606CCLIP(FOR INSTRUMENT PANEL UNDER COVER)
55611TRAY, INSTRUMENT PANEL UNDER
55613PAD, INSTRUMENT PANEL UNDER TRAY SILENCER, NO.2
55614APAD, INSTRUMENT PANEL UNDER TRAY SILENCER, NO.3
55642COVER, INSTRUMENT PANEL UNDER, NO.2
55950NOZZLE ASSY, DEFROSTER
55971ADUCT, SIDE DEFROSTER NOZZLE, NO.1
55972DUCT, SIDE DEFROSTER NOZZLE, NO.2
9011906077
9011908826
9015140005
9015960025
9017906206
9017906278
9018305094
9018305103
9046804177
9155480612
9155480818
9356855014
9356855016
9415180800
41 parts on this diagram · 2 diagrams in section
