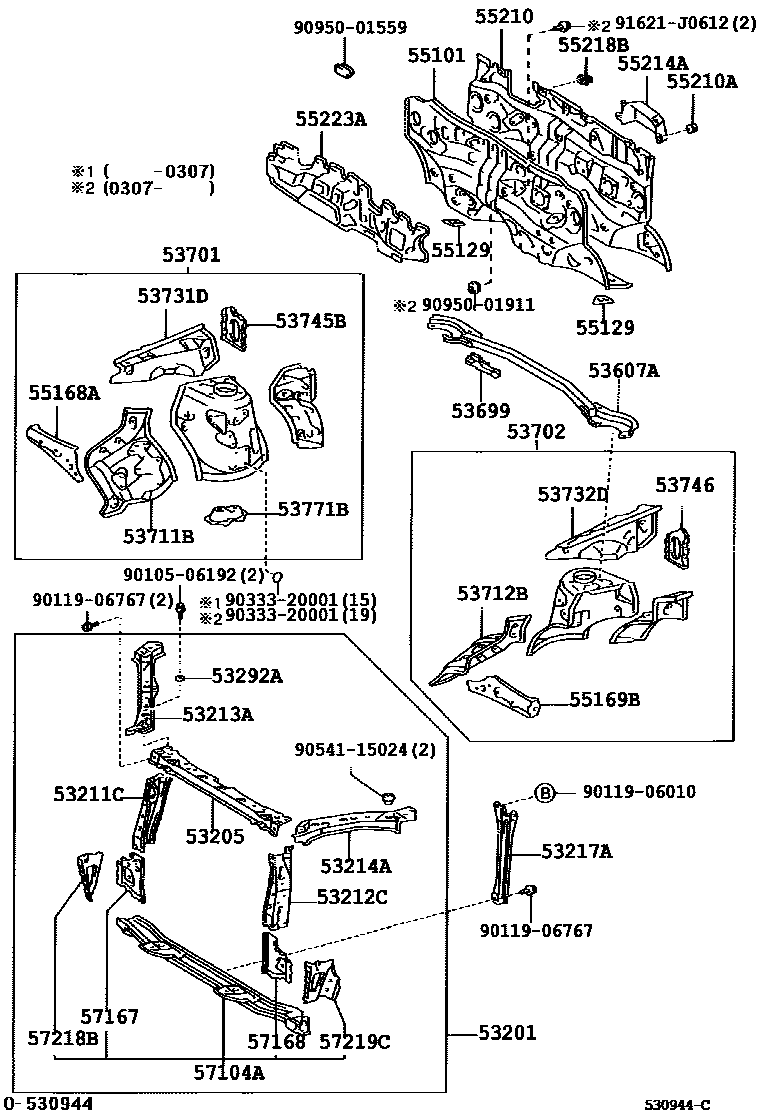

FRONT FENDER APRON & DASH PANEL
53201SUPPORT SUB-ASSY, RADIATOR
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53213ASUPPORT, RADIATOR, UPPER RH
53214ASUPPORT, RADIATOR, UPPER LH
53217ABRACE, HOOD LOCK SUPPORT
53292ASEAL, RADIATOR SUPPORT, UPPER
53607ABRACE SUB-ASSY, FRONT SUSPENSION, UPPER CENTER
53699PROTECTOR, FRONT SUSPENSION LOWER CENTER BRACE
53701APRON SUB-ASSY, FRONT FENDER, RH
53711BAPRON, FRONT FENDER, FRONT RH
53712BAPRON, FRONT FENDER, FRONT LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53745BREINFORCEMENT, FRONT FENDER APRON, REAR RH
53746REINFORCEMENT, FRONT FENDER APRON, REAR LH
53771BSUPPORT, BATTERY CARRIER, RH
55101PANEL SUB-ASSY, DASH
55168ABRACKET, FRONT FENDER MOUNTING, RH
55169BBRACKET, FRONT FENDER MOUNTING, LH
55210ACLIP
55214APAD, DASH PANEL INSULATOR, NO.2
55218BSEAL, DASH PANEL INSULATOR
57167GUSSET, FRONT CROSSMEMBER, UPPER RH
57168GUSSET, FRONT CROSSMEMBER, UPPER LH
57218BGUSSET, FRONT SIDE MEMBER, NO.1
57219CGUSSET, FRONT SIDE MEMBER, NO.2
9010506192
main90105-06192
9011906010
main90119-06010
9011906767
main90119-06767
9033320001
main90333-20001
9054115024
main90541-15024
9095001559
main90950-01559
9095001911
main90950-01911
91621J0612
main91621-J0612
41 parts on this diagram · 1 diagram in section
