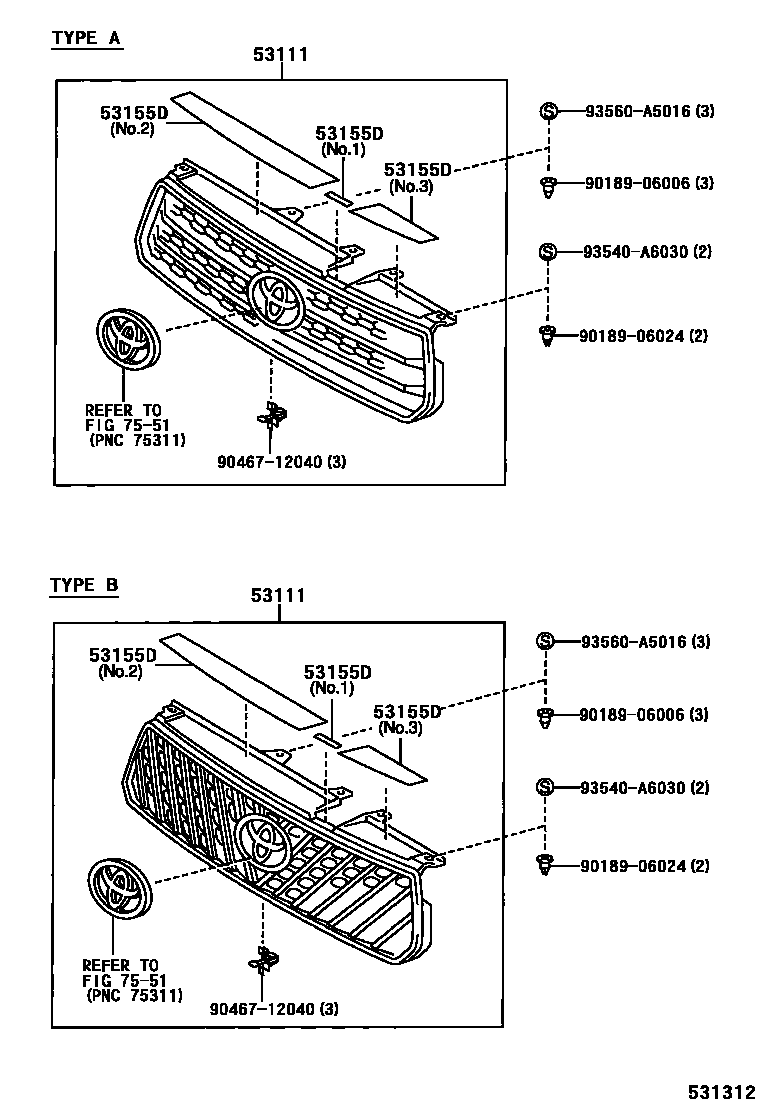

RADIATOR GRILLE

0001 1 0002 1

53111GRILLE, RADIATOR

main53101-42100iACA2#200008-200307

TYPE A:REFER TO ILLUSTRATION

main53101-42110iACA2#200208-200307

TYPE B:REFER TO ILLUSTRATION

sub53101-42100

main53101-42140iACA2#200307

53155DSEAL, RADIATOR GRILLE, NO.1

main53155-42020iACA2#200008-200307

NO.1

main53156-42010iACA2#200008-200307

NO.2

main53157-42010iACA2#200008-200307

NO.3

7551

9018906006

main90189-06006

9018906024

main90189-06024

9046712040

main90467-12040

93540A6030

main93540-A6030

93560A5016

main93560-A5016

8 parts on this diagram · 2 diagrams in section
