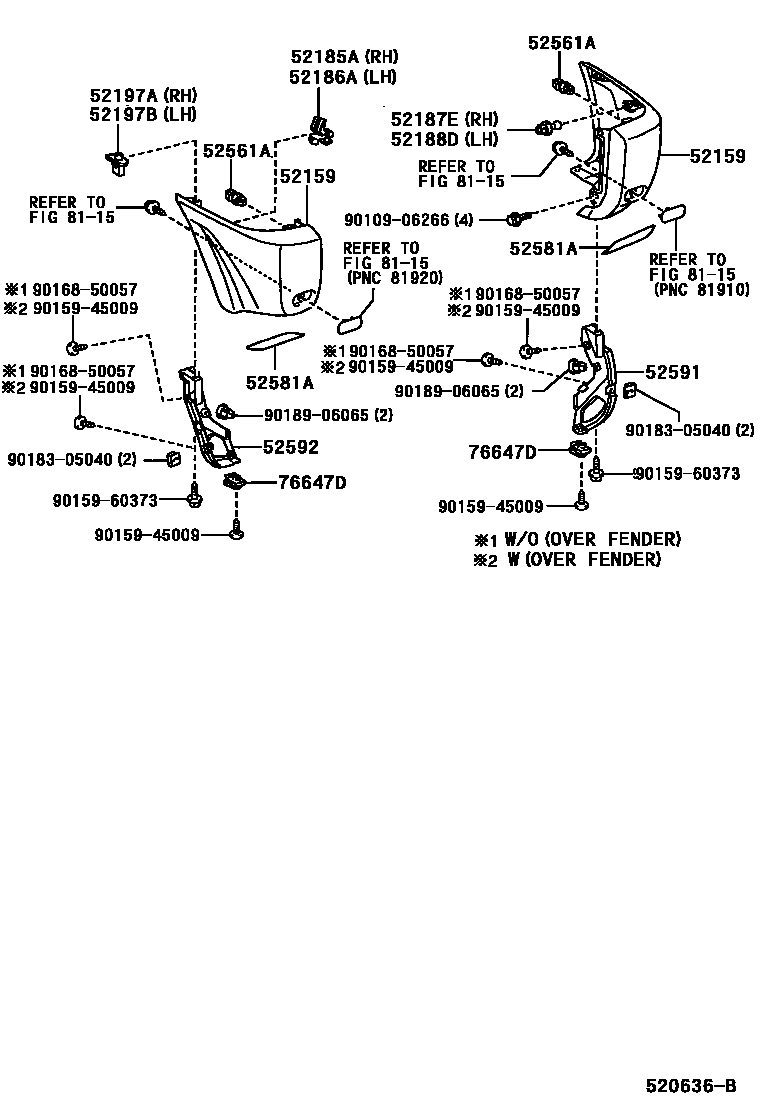

REAR BUMPER & BUMPER STAY
52159COVER, REAR BUMPER
RH
W(OVER FENDER),RH
RH
W(COLORED BUMPER),RH
LH
W(OVER FENDER),LH
LH
W(COLORED BUMPER),LH
52185ABRACKET, REAR BUMPER SIDE, RH
52186ABRACKET, REAR BUMPER SIDE, LH
52187EGUIDE, REAR BUMPER LOCATION, RH
52188DGUIDE, REAR BUMPER LOCATION, LH
52197ABRACKET, REAR BUMPER SEAL, RH
52197BBRACKET, REAR BUMPER SEAL, LH
52561ACLIP(FOR REAR BUMPER RETAINER)
52581APROTECTOR, REAR BUMPER FILLER
52591SEAL, REAR BUMPER SIDE, RH
52592SEAL, REAR BUMPER SIDE, LH
76647DRETAINER, FRONT FENDER LINER
W(MUD GUARD)
8115
9010906266
main90109-06266
9015945009
main90159-45009
9015960373
main90159-60373
9016850057
main90168-50057
9018305040
main90183-05040
9018906065
main90189-06065
19 parts on this diagram · 1 diagram in section
