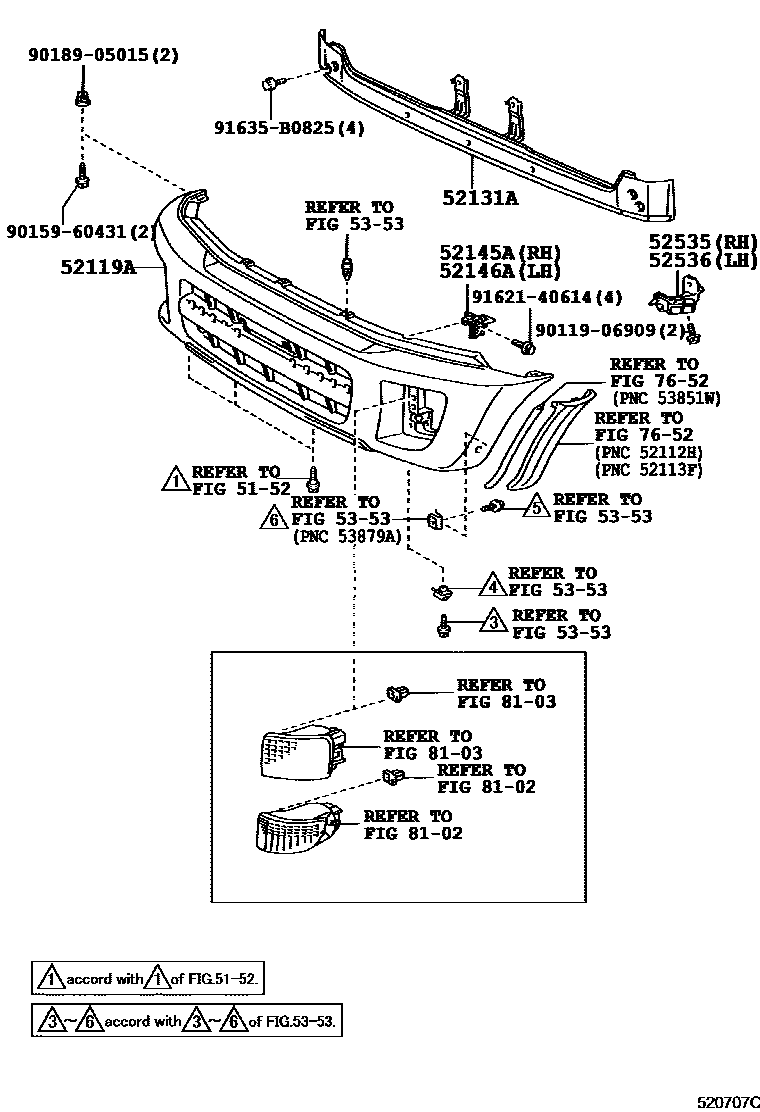

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

5152

52119ACOVER, FRONT BUMPER

main52119-42281iACA2#200012-200307

main52119-42301iACA2#200012-200307

W(OVER FENDER)

main52119-42903iACA21..CND200008-200012

main52119-42905iACA21..CND200008-200012

W(OVER FENDER)

main52119-42910iACA2#..USA200008-200012

sub52119-42281

main52119-42911iACA21..USA200008-200012

W(OVER FENDER)

sub52119-42301

main52119-42922iACA2#200307-200511

main52119-42923iACA2#200307-200511

W(OVER FENDER)

52131AREINFORCEMENT, FRONT BUMPER

main52021-42030iACA2#..USA200307-200511

main52021-42041iACA2#200008-200511

52145ASTAY, FRONT BUMPER, NO.2 RH

main52145-42020iACA2#200008-200307

main52145-42030iACA2#200307-200511

52146ASTAY, FRONT BUMPER, NO.2 LH

main52146-42020iACA2#200008-200307

main52146-42030iACA2#200307-200511

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-42010iACA2#200008-200307

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-42010iACA2#200008-200307

5353

7652

8102

8103

9011906909

main90119-06909

9015960431

main90159-60431

9018905015

main90189-05015

9162140614

main91621-40614

91635B0825

main91635-B0825

16 parts on this diagram · 2 diagrams in section
