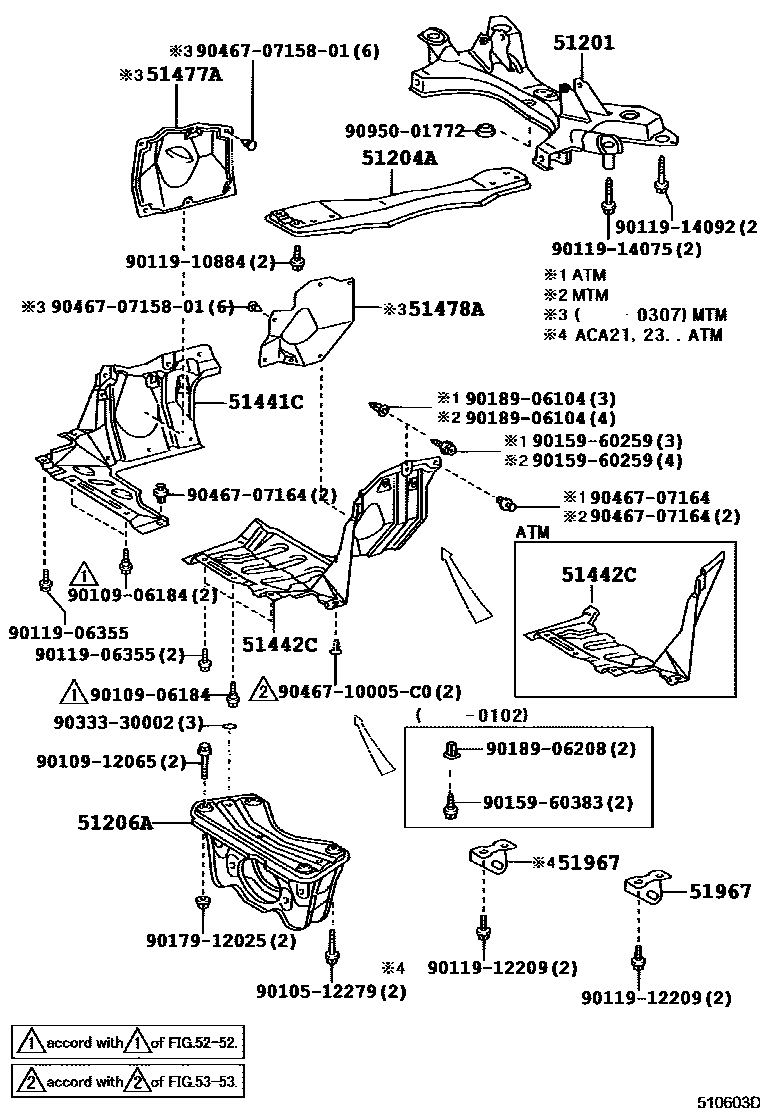

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-42050iACA2#200008-200307

sub51201-42060

main51201-42060iACA2#200307

sub51201-42061

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-12120iACA2#200008-200307

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-42040iACA2#200008-200307

51441CCOVER, ENGINE UNDER, RH

main51441-42050iACA2#200008-200307

51442CCOVER, ENGINE UNDER, LH

main51442-42060iACA2#..ATM200008-200307

main51442-42070iACA2#..MTM200008-200307

51477ASILENCER, ENGINE UNDER COVER, RH

main51477-42010iACA2#..MTM200008-200307

51478ASILENCER, ENGINE UNDER COVER, LH

main51478-42010iACA2#..MTM200008-200307

51967HOOK, TRANSPORT, REAR

main51967-42020iACA26;ACA21..MTM200008-200307

9010512279

main90105-12279

9010906184

main90109-06184

9010912065

main90109-12065

9011906355

main90119-06355

9011910884

main90119-10884

9011912209

main90119-12209

9011914075

main90119-14075

9011914092

main90119-14092

9015960259

main90159-60259

9015960383

main90159-60383

9017912025

main90179-12025

9018906104

main90189-06104

9018906208

main90189-06208

9033330002

main90333-30002

904670715801

main90467-0715801

9046707164

main90467-07164

9046710005C0

main90467-10005C0

9095001772

main90950-01772

26 parts on this diagram · 1 diagram in section
