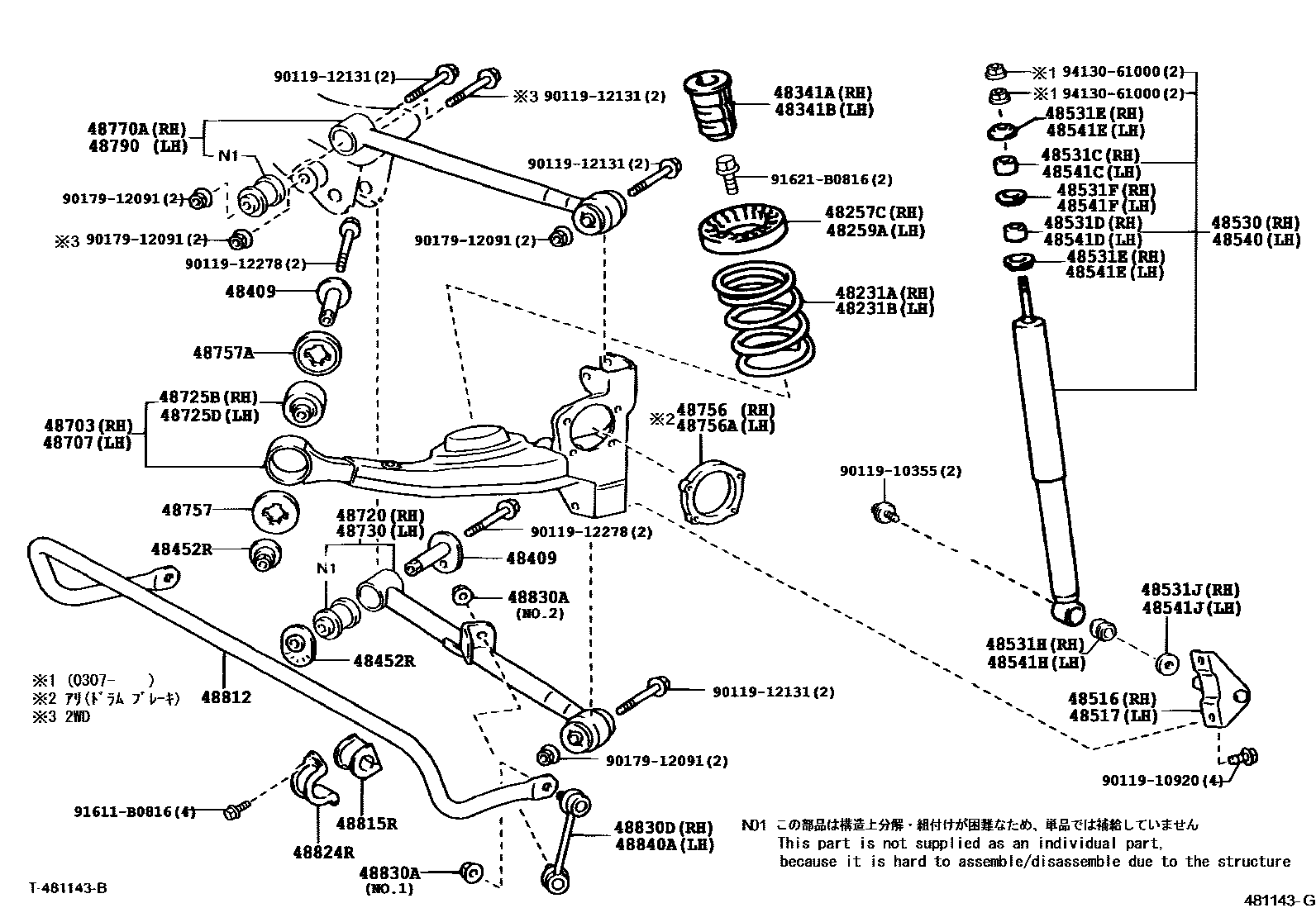

REAR SPRING & SHOCK ABSORBER
48231ASPRING, COIL, REAR RH
48231BSPRING, COIL, REAR LH
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48341ABUMPER, REAR SPRING, NO.1 RH
48341BBUMPER, REAR SPRING, NO.1 LH
48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
48452RPLATE, REAR SUSPENSION TOE ADJUST, NO.2
48516BRACKET, REAR SHOCK ABSORBER, UPPER RH
48517BRACKET, REAR SHOCK ABSORBER, UPPER LH
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48531-42120
48531CCUSHION, REAR SHOCK ABSORBER, NO.1 RH
48531DCUSHION, REAR SHOCK ABSORBER, NO.2 RH
48531ERETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER RH)
48531FRETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER RH)
48531HBUSH(FOR REAR SHOCK ABSORBER RH)
48531JWASHER, REAR SHOCK ABSORBER CUSHION, NO.1 RH
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48531-42120
48541CCUSHION, REAR SHOCK ABSORBER, NO.1 LH
48541DCUSHION, REAR SHOCK ABSORBER, NO.2 LH
48541ERETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER LH)
48541FRETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER LH)
48541HBUSH(FOR REAR SHOCK ABSORBER LH)
48541JWASHER, REAR SHOCK ABSORBER CUSHION, NO.1 LH
48703ARM SUB-ASSY, REAR SUSPENSION, RH
48707ARM SUB-ASSY, REAR SUSPENSION, LH
48720ARM ASSY, LOWER CONTROL, RH
48725BBUSH, REAR SUSPENSION ARM, NO.1
48725DBUSH, REAR SUSPENSION ARM, NO.3
48730ARM ASSY, LOWER CONTROL, LH
48756PIECE, REAR SUSPENSION ARM, RH
48756APIECE, REAR SUSPENSION ARM, LH
48757ATTACHMENT, REAR SUSPENSION ARM
48757AATTACHMENT, REAR SUSPENSION ARM, NO.2
48770AARM ASSY, UPPER CONTROL, REAR RH
48790ARM ASSY, UPPER CONTROL, REAR LH
48812BAR, STABILIZER, REAR
48815RBUSH, STABILIZER(FOR REAR)
48824RBRACKET, STABILIZER(FOR REAR)
48830ANUT(FOR REAR STABILIZER LINK)
NO.2
NO.1 & NO.2
48830DLINK ASSY, REAR STABILIZER, RH
48840ALINK ASSY, REAR STABILIZER, LH
9011910355
9011910920
9011912131
9011912278
9017912091
91611B0816
91621B0816
9413061000
50 parts on this diagram · 1 diagram in section
