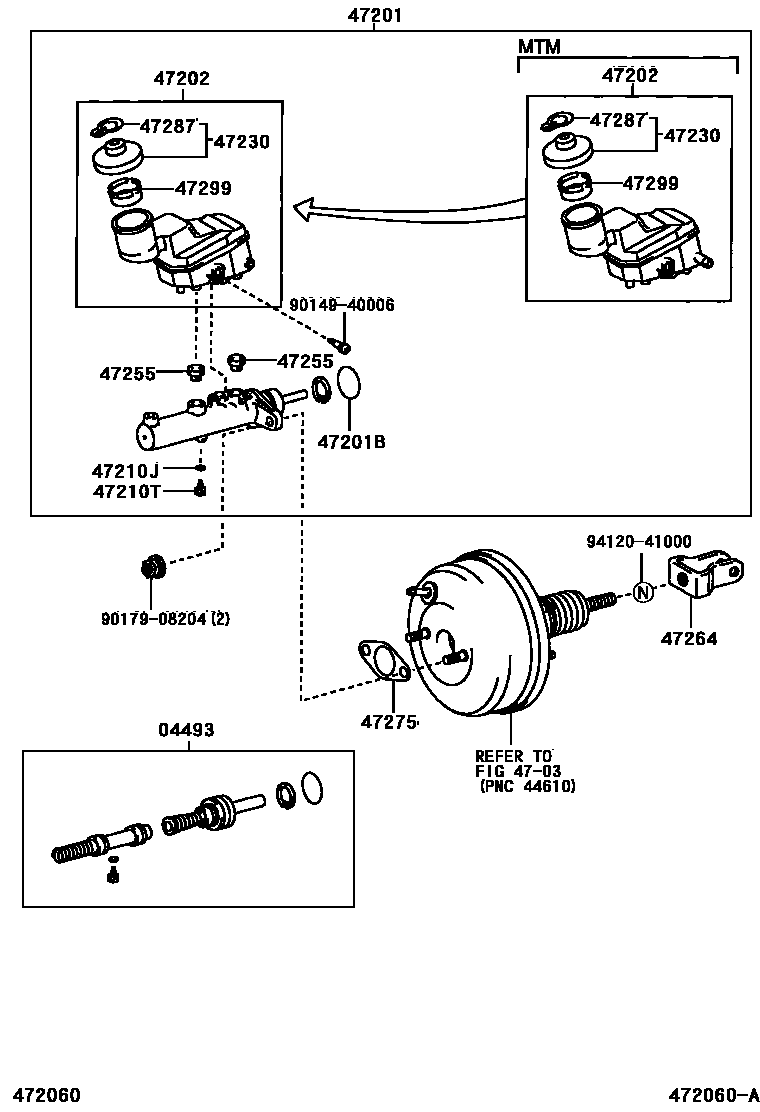

BRAKE MASTER CYLINDER

0001 1 0003 1W(VSC)

04493CYLINDER KIT, BRAKE MASTER

main04493-28150iACA2#200307-200511

W(VSC)

main04493-28160iACA23..CND;ACA28..ATM200208-200511

main04493-42050iACA2#200008-200208

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-42190iACA2#..MTM200008-200208

main47201-42200iACA2#..ATM200008-200208

main47201-42230iACA2#..MTM200208-200307

main47201-42231iACA23..MTM..CND200307

main47201-42240iACA2#..ATM200208-200307

main47201-42241iACA28..ATM;ACA23..ATM..CND200307

main47201-42260iACA2#..ATM200307

W(VSC)

main47201-42270iACA2#..MTM200307

W(VSC)

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90029-20059iACA2#200008-200307

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-42060iACA2#..MTM200008-200307

main47220-42070iACA2#..ATM200008-200307

main47220-42080iACA2#..ATM200307

main47220-42090iACA2#..MTM200307

47210JGASKET(FOR MASTER CYLINDER)

main90029-43001iACA2#200112-200307

main90430-06104iACA2#200008-200112

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iACA23..CND;ACA28..ATM200008-200307

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iACA2#200008-200307

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iACA2#200008-200307

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-42010iACA2#200008-200307

47275GASKET, BRAKE MASTER CYLINDER

main47275-12020iACA2#200008-200307

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iACA2#200008-200307

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-25010iACA2#200008-200307

9014940006

main90149-40006

9017908204

main90179-08204

9412041000

main94120-41000

16 parts on this diagram · 2 diagrams in section
