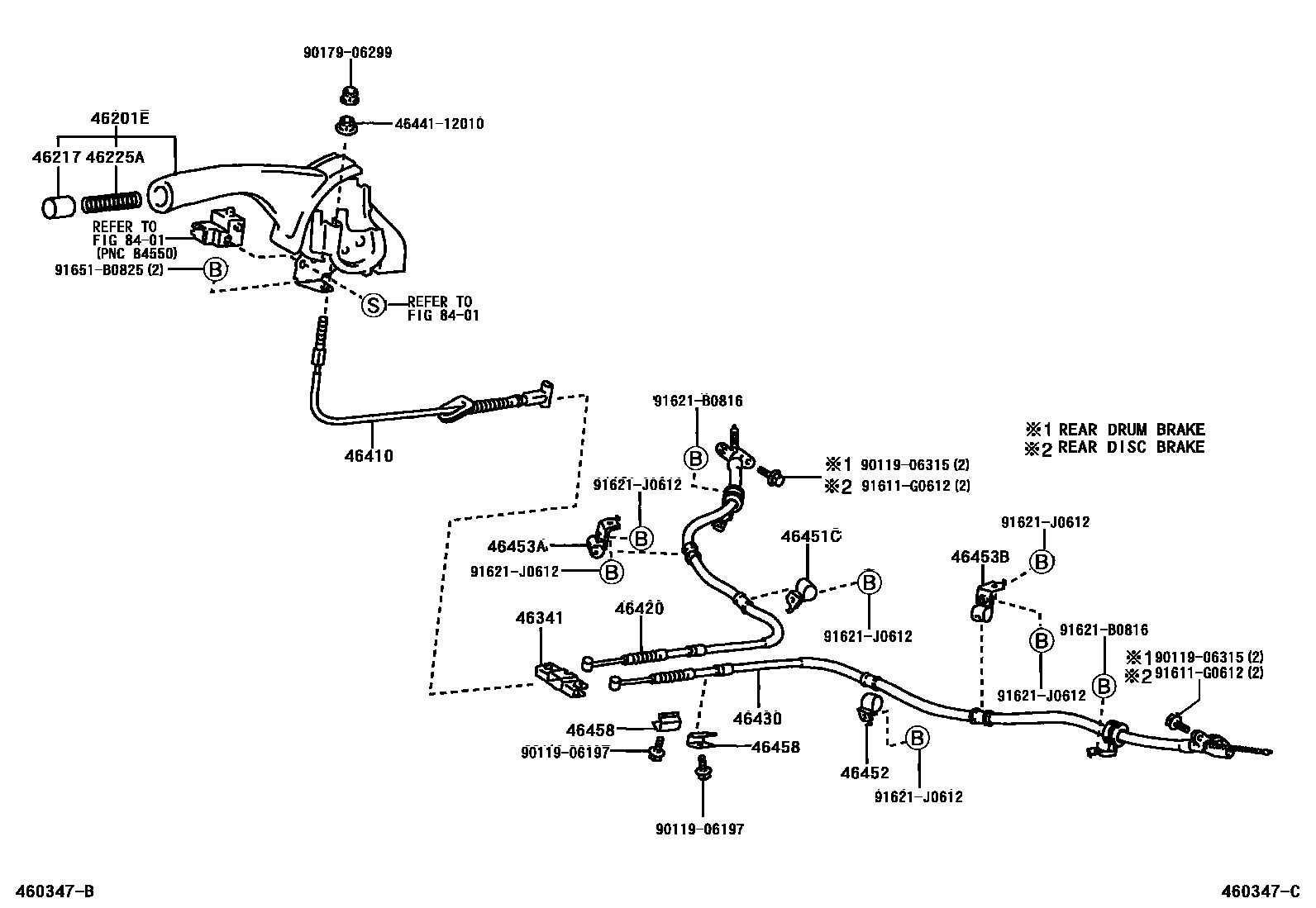

PARKING BRAKE & CABLE

0001 1 0002 1W(REAR DISC BRAKE)

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-42070-C0iACA2#200008-200511

BLACK,TRIM1#,4#

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-16030-C0iACA2#200008-200511

BLACK,TRIM1#,4#

sub46217-16030

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10132iACA2#200008-200307

46341EQUALIZER, PARKING BRAKE

main46341-42010iACA2#200008-200307

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-42040iACA2#200008-200307

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-42070iACA2#200307-200511

W(REAR DISC BRAKE)

main46420-42090iACA2#200008-200511

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-42070iACA2#200307-200511

W(REAR DISC BRAKE)

main46430-42090iACA2#200008-200511

46451CBRACKET, PARKING BRAKE CABLE SUPPORT, NO.1

main46451-42090iACA2#200008-200307

46452BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2

main46452-42080iACA2#200008-200307

46453ABRACKET, CABLE SUPPORT, NO.3

main46451-42100iACA2#200008-200307

46453BBRACKET, CABLE SUPPORT, NO.3

main46452-42090iACA2#200008-200307

46458RETAINER, CABLE

main46458-28010iACA2#200008-200307

8401

4644112010NUT, WIRE ADJUSTING, NO.1

main46441-12010

9011906197

main90119-06197

9011906315

main90119-06315

9017906299

main90179-06299

91611G0612

main91611-G0612

91621B0816

main91621-B0816

91621J0612

main91621-J0612

91651B0825

main91651-B0825

21 parts on this diagram · 2 diagrams in section
