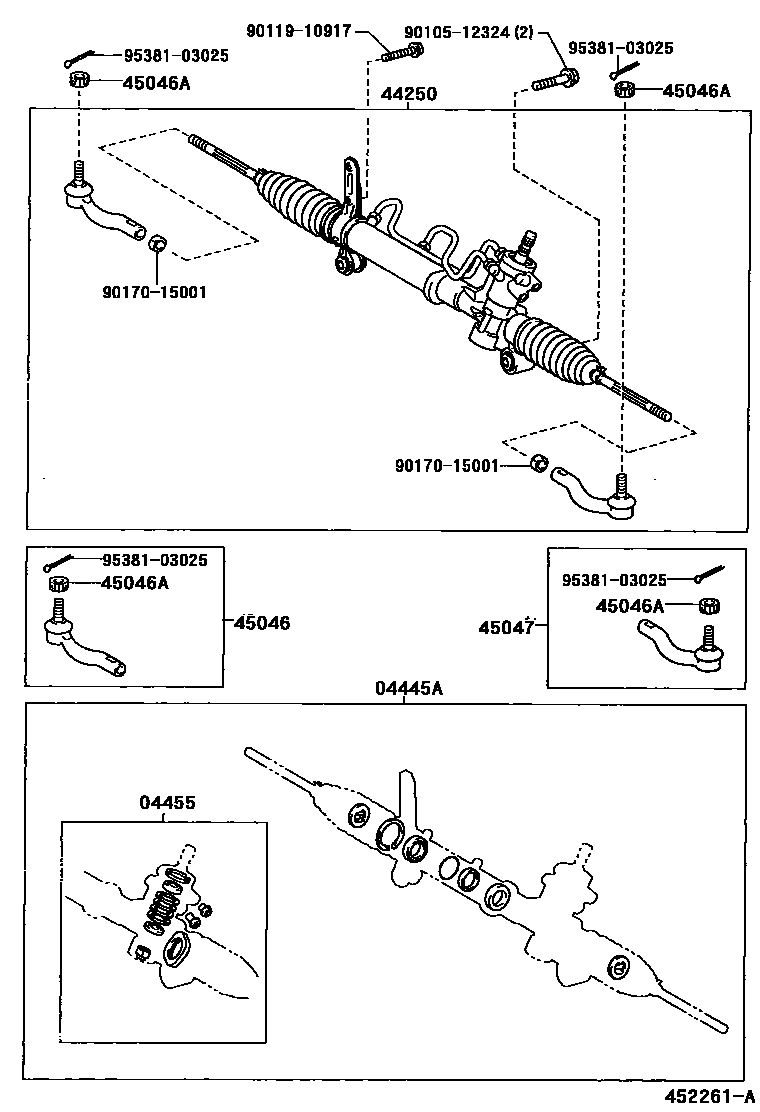

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-13010iACA2#200307

main04445-42030iACA2#200008-200307

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-42010iACA2#200008-200307

main04455-44010iACA2#200307

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44200-42120iACA2#200008-200307

45046END SUB-ASSY, TIE ROD, RH

main45046-49095iACA2#200008-200307

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iACA2#200008-200307

45047END SUB-ASSY, TIE ROD, LH

main45047-49025iACA2#200008-200307

9010512324

main90105-12324

9011910917

main90119-10917

9017015001

main90170-15001

9538103025

main95381-03025

10 parts on this diagram · 4 diagrams in section
