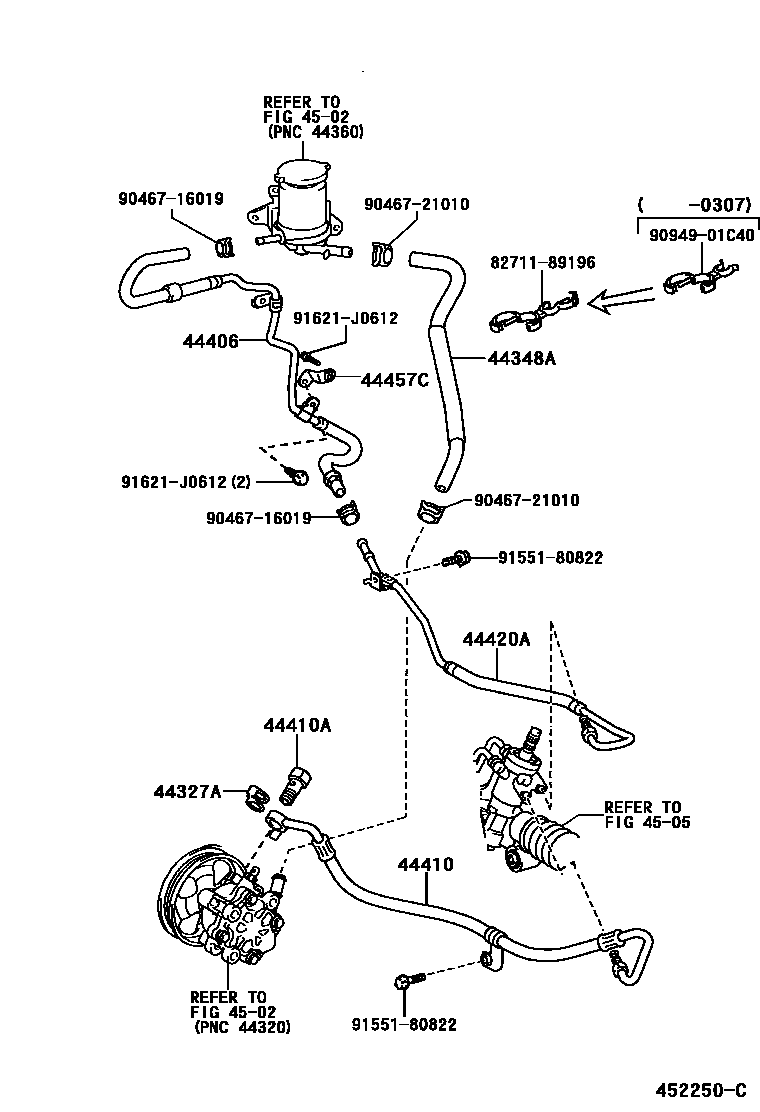

POWER STEERING TUBE

44327AGASKET, PRESSURE PORT, NO.1

main44327-30030iACA2#¥160200008-200307

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-42050iACA2#¥4,930200008-200307

44406TUBE SUB-ASSY, RETURN

main44406-42080iACA2#¥4,280200008-200307

main44406-42100iACA2#¥5,100200307

44410TUBE ASSY, PRESSURE FEED

main44410-42070iACA2#¥15,300200008-200307

main44410-42130iACA2#¥14,100200307

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main96341-41603iACA2#¥310200008-200307

44420ATUBE ASSY, RETURN

main44420-42050iACA2#¥3,420200008-200307

main44420-42060iACA2#¥4,280200307

44457CBRACKET, POWER STEERING TUBE SUPPORT, NO.1

main44457-42030iACA2#¥940200008-200307

4502

4505

8271189196WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-89196¥370

9046716019

main90467-16019¥300

9046721010

main90467-21010¥380

9094901C40

main90949-01C40¥440

9155180822

main91551-80822¥80

91621J0612

main91621-J0612¥70

15 parts on this diagram · 1 diagram in section
