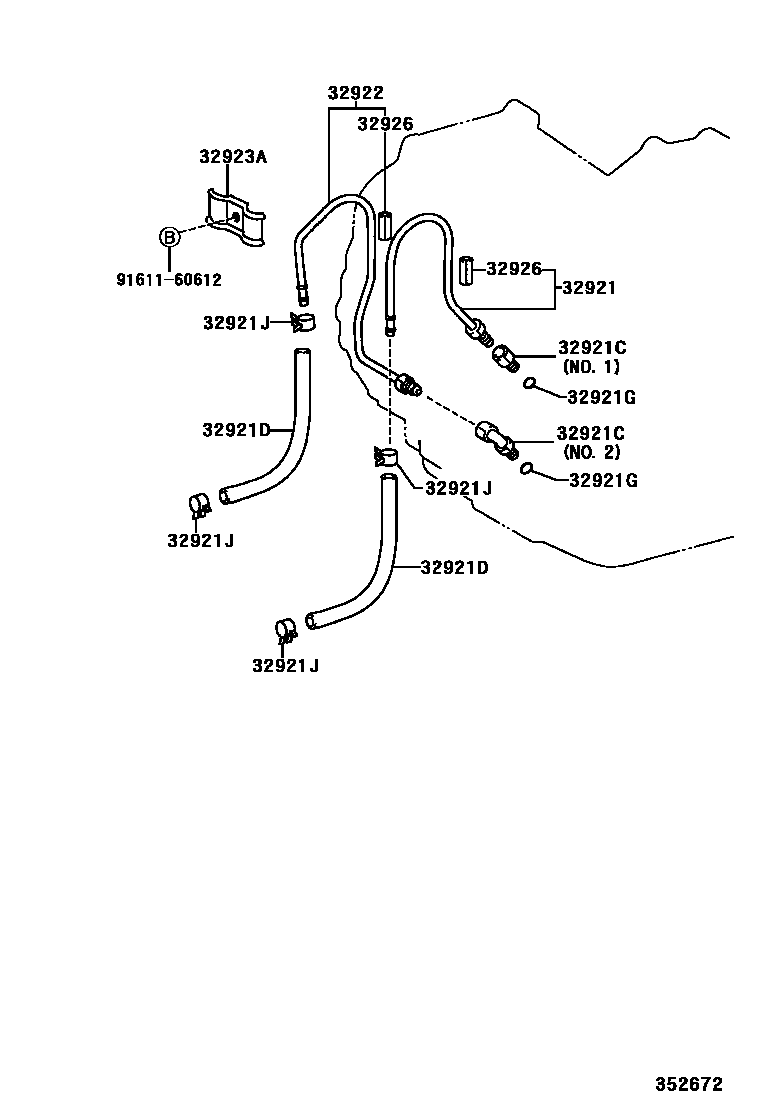

OIL COOLER & TUBE (ATM)

0001 1U140F,U241E 0002 1U140F,U241E

32921TUBE, OIL COOLER INLET, NO.1

main32921-48010iACA2#..ATM¥940200008-200307

32921CUNION(FOR OIL COOLER TUBE)

main90404-13004iACA2#..ATM¥500200307

NO.1

sub90404-13010¥310

main90404-16031iACA2#..ATM¥340200008-200307

NO.1

main90407-13009iACA2#..ATM¥590200307

NO.2

sub90407-13010¥360

main90407-16010iACA2#..ATM¥440200008-200307

NO.2

32921DHOSE(FOR OIL COOLER INLET)

main90445-17095iACA2#..ATM¥870200008-200307

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iACA2#..ATM¥170200008-200511

32921JCLIP(FOR OIL COOLER HOSE)

main90467-16013iACA2#..ATM¥300200008-200307

sub90467-16022¥300

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-42050iACA2#..ATM¥940200008-200307

32923ACLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main90462-12074iACA2#..ATM¥220200008-200307

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30020iACA2#..ATM¥170200008-200307

L=35,ID=10

9161160612

main91611-60612¥130

9 parts on this diagram · 2 diagrams in section
