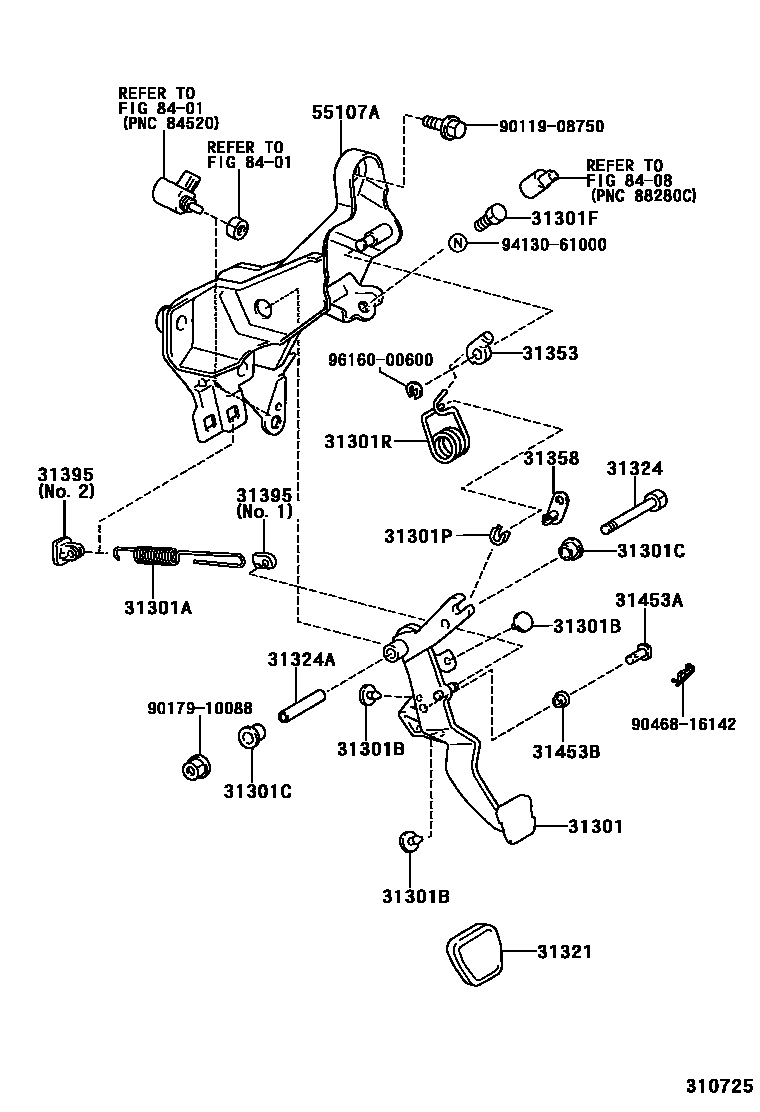

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-42060iACA2#..MTM200008-200307

31301ASPRING(FOR CLUTCH PEDAL)

main90905-07033iACA2#..MTM200008-200307

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iACA2#..MTM200008-200307

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iACA2#..MTM200008-200307

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iACA2#..MTM200008-200307

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90389-06055iACA2#..MTM200008-200307

31301RSPRING, COMPRESSION(FOR TURNOVER SPRING SEAT)

main90949-03099iACA2#..MTM200008-200307

main90949-03112iACA2#..MTM200307

31321PAD, CLUTCH PEDAL

main31321-52010iACA2#..MTM200008-200307

31324SHAFT, CLUTCH PEDAL

main90101-10015iACA2#..MTM200008-200307

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iACA2#..MTM200008-200307

31353HOLDER, CLUTCH PEDAL SPRING

main31353-14010iACA2#..MTM200008-200307

31358CAP, OVER CENTER SPRING

main31358-42010iACA2#..MTM200008-200307

31395HOOK, PEDAL SPRING

main31395-33010iACA2#..MTM200008-200307

NO.1

main31395-33020iACA2#..MTM200008-200307

NO.2

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08018iACA2#..MTM200008-200307

L=29.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08036iACA2#..MTM200008-200307

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-42070iACA2#..MTM200008-200511

8401

8408

9011908750

main90119-08750

9017910088

main90179-10088

9046816142

main90468-16142

9413061000

main94130-61000

9616000600

main96160-00600

23 parts on this diagram · 3 diagrams in section
