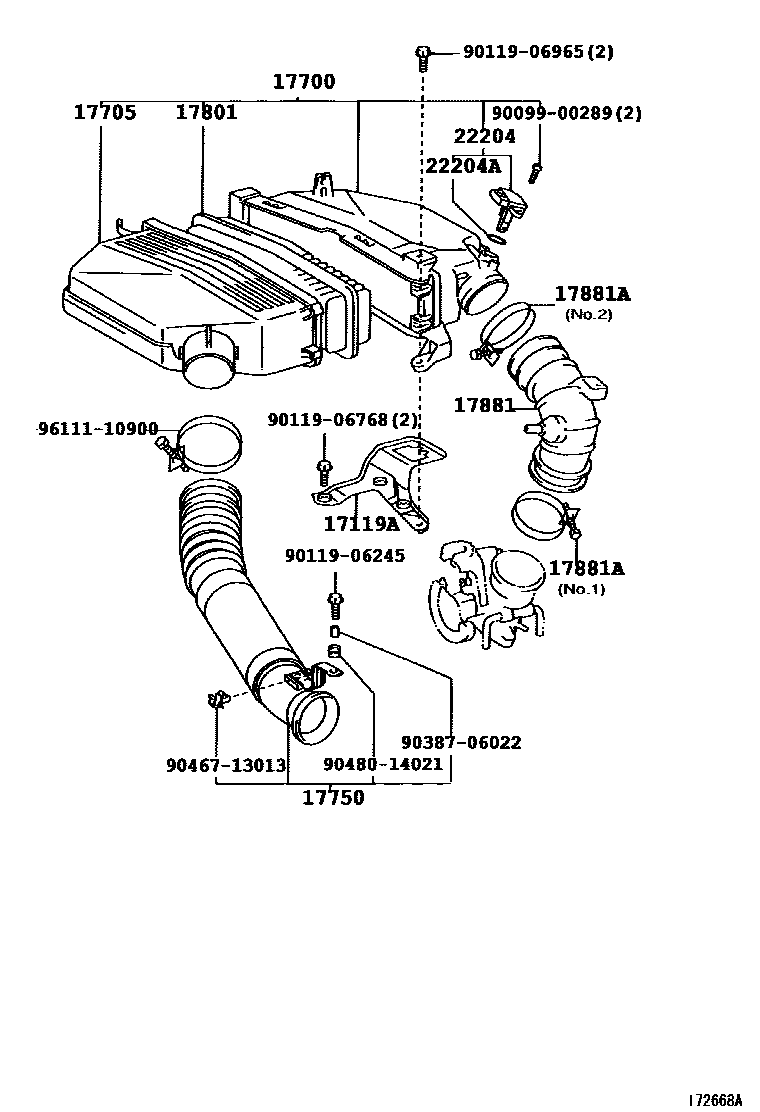

AIR CLEANER

17119ABRACKET, AIR CLEANER

main17119-28010i2AZFE..ACA2#200008-200307

17700CLEANER ASSY, AIR

main17700-28090i1AZFE..ACA2#200008-200301

sub17700-28091

main17700-28091i1AZFE..ACA2#200301-200307

sub17700-28092

main17700-28230i2AZFE..ACA2#200307-200412

sub17700-28231

main17700-28231i2AZFE..ACA2#200501

17705CAP SUB-ASSY, AIR CLEANER

main17705-28050i1AZFE..ACA2#200008-200307

main17705-28170i2AZFE..ACA2#200307-200412

17750COVER ASSY, AIR CLEANER INLET, SEAL

main17750-28010i1AZFE..ACA2#200008-200307

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-28010i2AZFE..ACA2#200008-200412

17881HOSE, AIR CLEANER, NO.1

main17881-28040i1AZFE..ACA2#200008-200307

main17881-28180i2AZFE..ACA2#200307

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90466-62001i1AZFE..ACA2#200111-200307

NO.1

sub90466-62002

main90466-62002i2AZFE..ACA2#200307

NO.1

main90467-60001i1AZFE..ACA2#200008-200111

NO.1

main96111-10830i2AZFE..ACA2#200008-200307

NO.2

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-22010i1AZFE..ACA2#200008-200412

22204ARING, O(FOR INTAKE AIR FLOW METER)

main90099-14141i1AZFE..ACA2#200008-200307

9009900289

main90099-00289

9011906245

main90119-06245

9011906768

main90119-06768

9011906965

main90119-06965

9038706022

main90387-06022

9046713013

main90467-13013

9048014021

main90480-14021

9611110900

main96111-10900

17 parts on this diagram · 1 diagram in section
