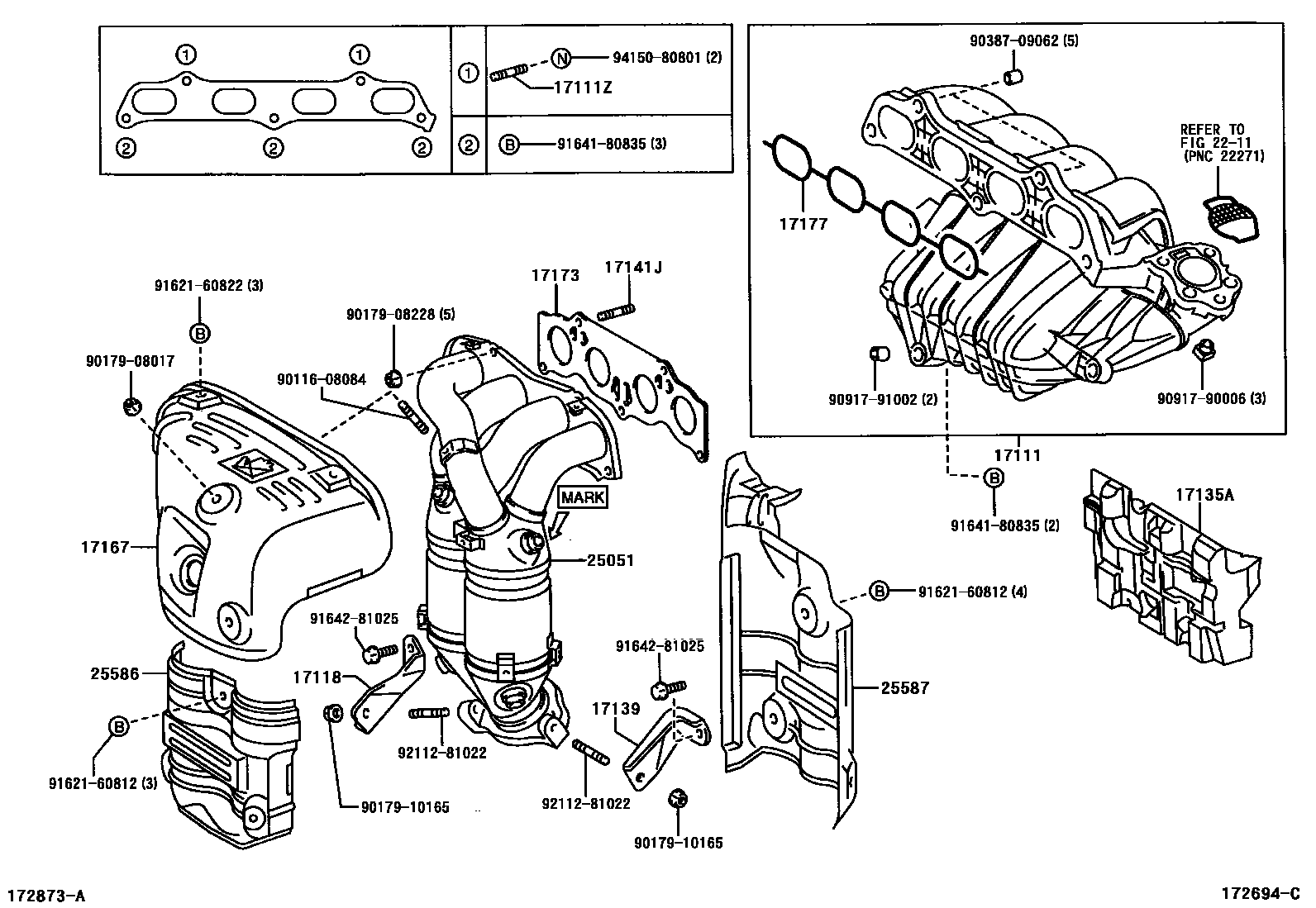

MANIFOLD

0001 1 0002 1

17111MANIFOLD, INTAKE

main17120-28010i1AZFE..ACA2#200008-200307

sub17120-28050

main17120-28090i2AZFE..ACA2#200307

sub17120-28100

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

main90126-08026i1AZFE..ACA2#200008-200307

17118STAY, MANIFOLD

main17118-28020i1AZFE..ACA2#200008-200307

17135AINSULATOR, INTAKE MANIFOLD, NO.1

main17135-28010i1AZFE..ACA2#200008-200506

sub17135-28011

main17135-28011i2AZFE..ACA2#200506

17139STAY, MANIFOLD, NO.2

main17139-28010i1AZFE..ACA2#200008-200307

17141JBOLT, STUD(FOR EXHAUST MANIFOLD, RH)

main90126-08037i1AZFE..ACA2#200008-200307

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-28010i1AZFE..ACA2#200008-200307

main17167-28040i2AZFE..ACA2#200307

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-28010i1AZFE..ACA2#200008-200307

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-28010i1AZFE..ACA2#200008-200307

sub17177-28031

2211

25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD

main25051-28050i1AZFE..ACA2#200008-200012

MARK 28050

sub25051-28080

main25051-28080i1AZFE..ACA2#200008-200012

MARK 28080

sub25051-28081

main25051-28080i1AZFE..ACA2#200012-200204

sub25051-28081

main25051-28081i1AZFE..ACA2#200204-200307

sub25051-28260

main25051-28220i2AZFE..ACA2#200307

sub25051-28430

25586INSULATOR, MANIFOLD CONVERTER, NO.1

main25586-28010i1AZFE..ACA2#200008-200307

main25586-28031i2AZFE..ACA2#200307

25587INSULATOR, MANIFOLD CONVERTER, NO.2

main25587-28010i1AZFE..ACA2#200008-200307

main25587-28041i2AZFE..ACA2#200307

9011608084

main90116-08084

9017908017

main90179-08017

9017908228

main90179-08228

9017910165

main90179-10165

9038709062

main90387-09062

9091790006

main90917-90006

9091791002

main90917-91002

9162160812

main91621-60812

9162160822

main91621-60822

9164180835

main91641-80835

9164281025

main91642-81025

9211281022

main92112-81022

9415080801

main94150-80801

26 parts on this diagram · 2 diagrams in section
