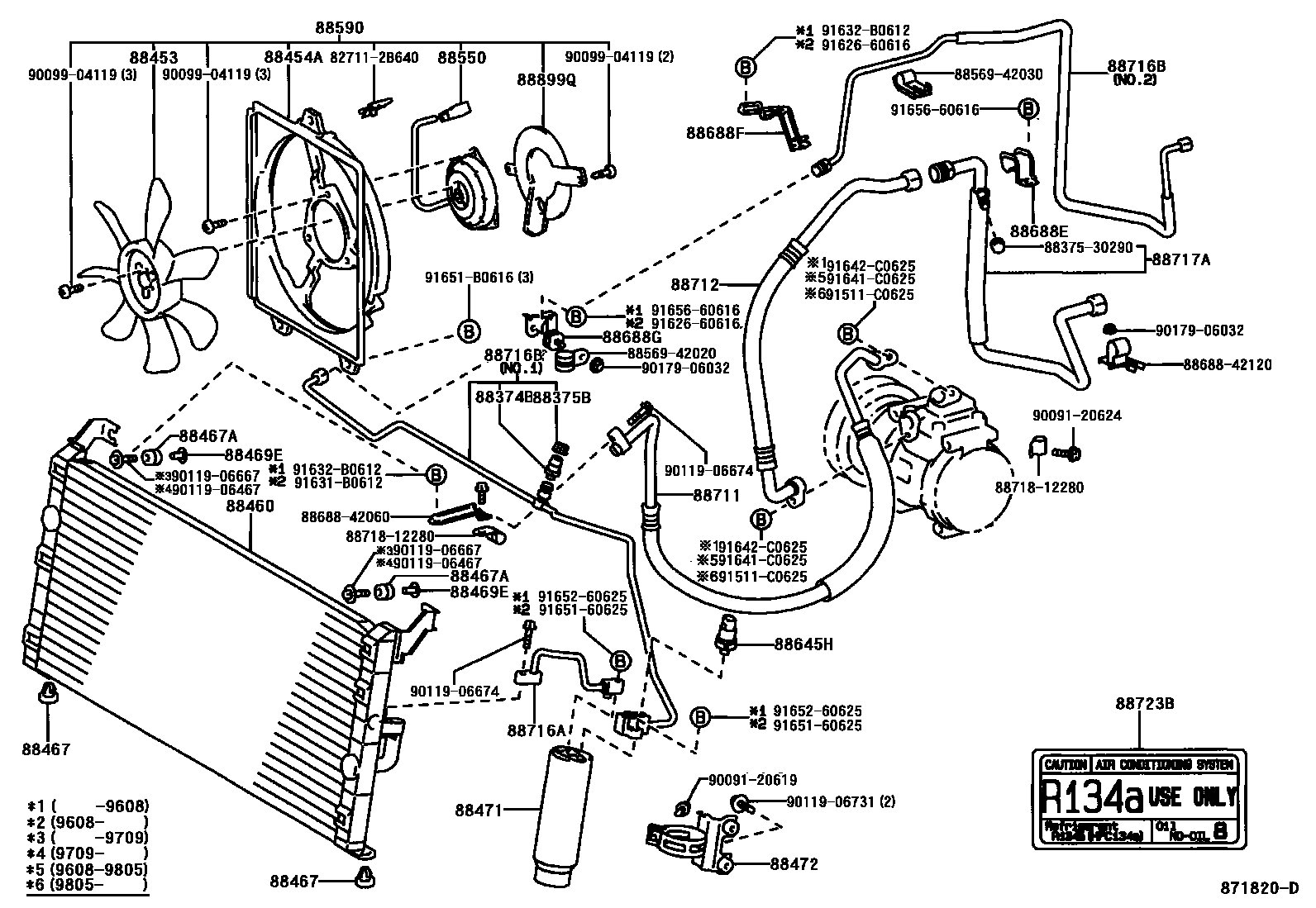

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1MAKER OPTION 0002 1DEALER OPTION 0003 1

88374BVALVE, SERVICE, NO.1

main88374-30010iSXA1#199608

88375BCAP, SERVICE VALVE, NO.1

main88375-30280iSXA1#199511

88453FAN, COOLING (FOR CONDENSER)

main88453-42010iSXA1#199511

88454ASHROUD, FAN

main88454-42020iSXA1#199511-199608

main88454-42021iSXA1#199608

88460CONDENSER ASSY, COOLER

main88460-42020iSXA1#199511-199709

sub88460-42021

main88460-42021iSXA1#199709

DEALER OPTION

88467CUSHION, COOLER CONDENSER, NO.1

main88467-16090iSXA1#199511

88467ACUSHION, COOLER CONDENSER, NO.2

main90099-32130iSXA1#199511

88469ECOLLAR, CONDENSER BRACKET, NO.2

main88469-28010iSXA1#199511

88471TANK, RECEIVER AIR CONDITIONER

main88471-20050iSXA1#199511

sub88471-34010

88472BRACKET, RECEIVER TANK, NO.1

main88472-42010iSXA1#199511

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main16363-74190iSXA1#199511

88590BLOWER ASSY, W/SHROUD

main88590-42020iSXA1#199511-199608

main88590-42021iSXA1#199608

88645HSWITCH, PRESSURE NO.1

main88645-20050iSXA1#199511

88688EBRACKET, COOLER REFRIGERANT HOSE, NO.1

main88688-42100iSXA1#199511-199709

main88688-42100iSXA1#199608

SUSPENSION SUPPORT

main88688-42120iSXA1#199608

PS BRACKET

88688FBRACKET, COOLER REFRIGERANT HOSE, NO.2

main88688-42040iSXA1#199511

88688GBRACKET, COOLER REFRIGERANT PIPE

main88688-42010iSXA1#199511-199608

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-42010iSXA1#199511

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88704-42020iSXA1#199602-199608

MAKER OPT

main88712-42030iSXA1#199602-199603

DEALER OPT

sub88712-42050

main88712-42030iSXA1#199511-199602

sub88712-42050

main88712-42041iSXA1#199608-199709

main88712-42042iSXA1#199709

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-42010iSXA1#199511

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88706-42030iSXA1#199511-199709

NO.1

main88706-42031iSXA1#..HT199709

NO.1

main88706-42031iSXA10,15..SOT199712

MAKER OPTION,NO.1

main88716-42060iSXA1#199511-199602

NO.2

sub88716-42061

main88716-42061iSXA1#199603-199608

NO.2

main88716-42061iSXA1#199602-199603

W(*AIC---MAKER OPT),NO.2

main88716-42070iSXA1#199608

NO.2

88717APIPE, COOLER REFRIGERANT SUCTION, A

main88717-42040iSXA1#199511-199608

main88717-42051iSXA10,15..SOT199712

88723BLABEL, COOLER SERVICE CAUTION

main88723-14020iSXA1#199511

88899QPLATE, COVER

main88899-42060iSXA1#199709

827112B640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B640

8837530290CAP, COOLER COMPRESSOR SERVICE VALVE

main88375-30290

8856942020CLAMP (FOR COOLER RELAY)

main88569-42020

8856942030CLAMP (FOR COOLER RELAY)

main88569-42030

8868842060BRACKET, COOLER DIAPHRAGM

main88688-42060

8868842120BRACKET, COOLER DIAPHRAGM

main88688-42120

8871812280PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-12280

9009120619

main90091-20619

9009120624

main90091-20624

9009904119

main90099-04119

9011906467

main90119-06467

9011906667

main90119-06667

9011906674

main90119-06674

9011906731

main90119-06731

9017906032

main90179-06032

91511C0625

main91511-C0625

9162660616

main91626-60616

91631B0612

main91631-B0612

91632B0612

main91632-B0612

91641C0625

main91641-C0625

91642C0625

main91642-C0625

9165160625

main91651-60625

91651B0616

main91651-B0616

9165260625

main91652-60625

9165660616

main91656-60616

48 parts on this diagram · 3 diagrams in section
