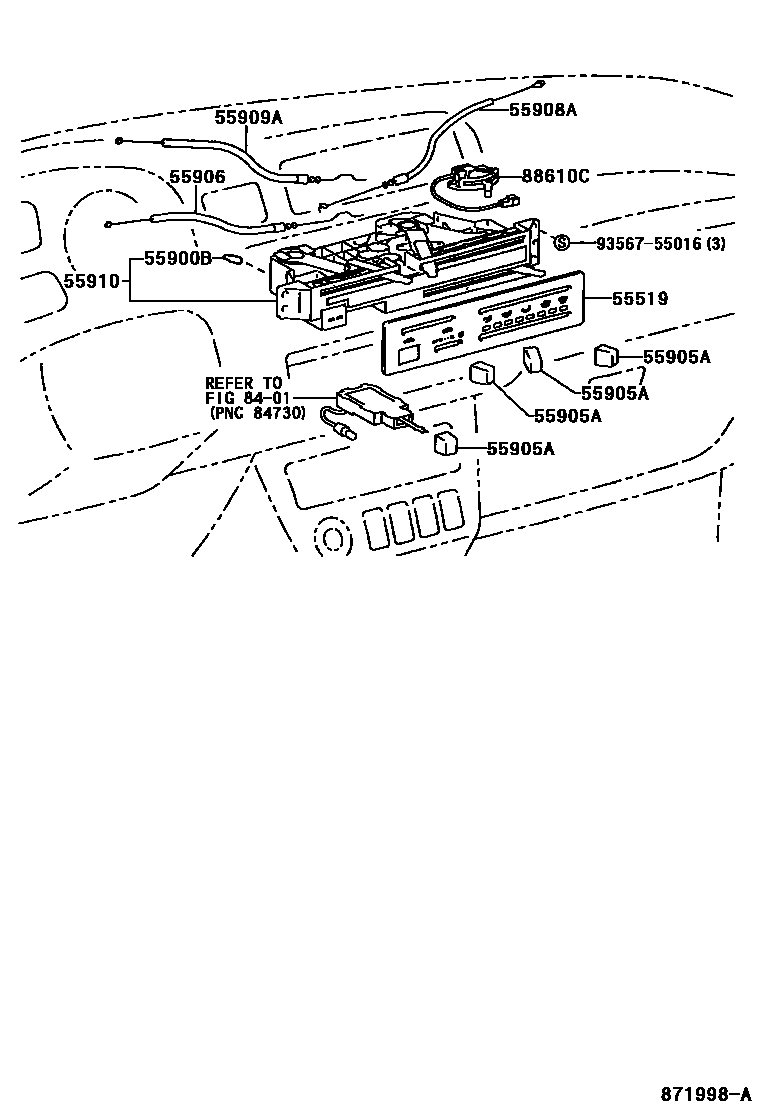

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1PANEL CONTROL & CABLE CONTROL0002 1AIR DUCT

55519PLATE, HEATER CONTROL NAME

main55519-42020iSXA1#199511-199810

sub55519-42050

main55519-42060iSXA1#199810

55900BBULB, AIR CONDITIONER CONTROL

main84999-70014iSXA1#199511

14V 1.4W,W(BLUE CAP)

55905AKNOB, HEATER CONTROL

main55905-89115iSXA1#199511

55906CABLE SUB-ASSY, HEATER CONTROL

main55906-42010iSXA1#199511

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-42010iSXA1#199511

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-42010iSXA1#199511

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-42020iSXA1#199511

8401

88610CSWITCH ASSY, COOLER CONTROL

main88610-42010iSXA1#199511-199810

main88610-42030iSXA1#199810

9356755016

main93567-55016

10 parts on this diagram · 2 diagrams in section
