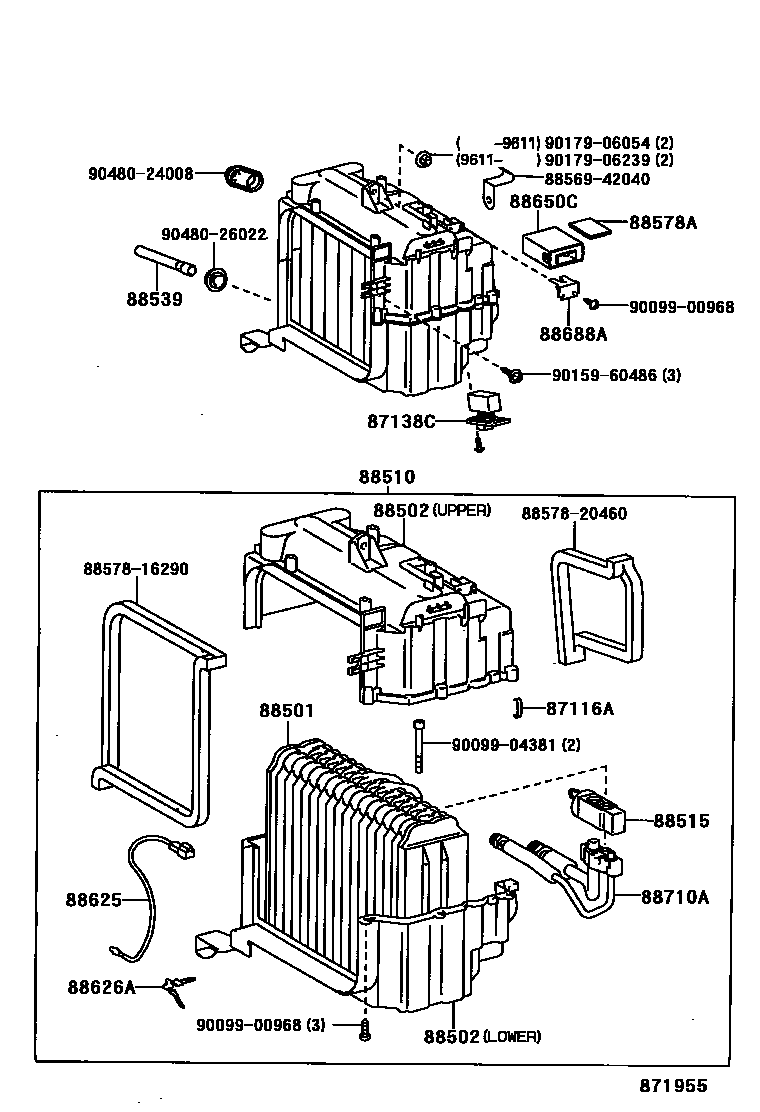

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1

87116ASPRING, HOLDING (FOR COOLER UNIT CASE)

main87116-14010iSXA1#199511

87138CRESISTOR, BLOWER

main87138-42010iSXA1#199511

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-42040iSXA1#199511

88502CASE SUB-ASSY, COOLING UNIT

main88502-42050iSXA1#199511

UPPER

main88502-42060iSXA1#199511

LOWER

88510UNIT ASSY, COOLER

main88510-42050iSXA1#199511

MAKER OPT

main88510-42060iSXA1#199511

DEALER OPT

88515VALVE, COOLER EXPANSION

main88515-20100iSXA1#199511

sub88515-22240

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-42010iSXA1#199511

88578APACKING, COOLER STABILIZER AMPLIFIER

main88578-16270iSXA1#199511

sub88578-26120

main88578-42010iSXA1#199808

DEALER OPTION

sub88578-12310

88625THERMISTOR, COOLER, NO.1

main88625-20340iSXA1#199511

88626AHOLDER, THERMISTOR

main88569-20160iSXA11,15,16..ATM..HT199709

MAKER OPTION

main88626-28010iSXA1#199511

88650CAMPLIFIER SUB-ASSY, AIRCONDITIONER

main88650-42010iSXA1#199511

88688ABRACKET, COOLER STABILIZER AMPLIFIER

main88688-42110iSXA1#199511

88710ATUBE ASSY, AIR CONDITIONER

main88710-42030iSXA1#199511

8856942040CLAMP (FOR COOLER RELAY)

main88569-42040

8857816290PAKING, COOLER AIR DUCT

main88578-16290

8857820460PAKING, COOLER AIR DUCT

main88578-20460

9009900968

main90099-00968

9009904381

main90099-04381

9015960486

main90159-60486

9017906054

main90179-06054

9017906239

main90179-06239

9048024008

main90480-24008

9048026022

main90480-26022

23 parts on this diagram · 2 diagrams in section
