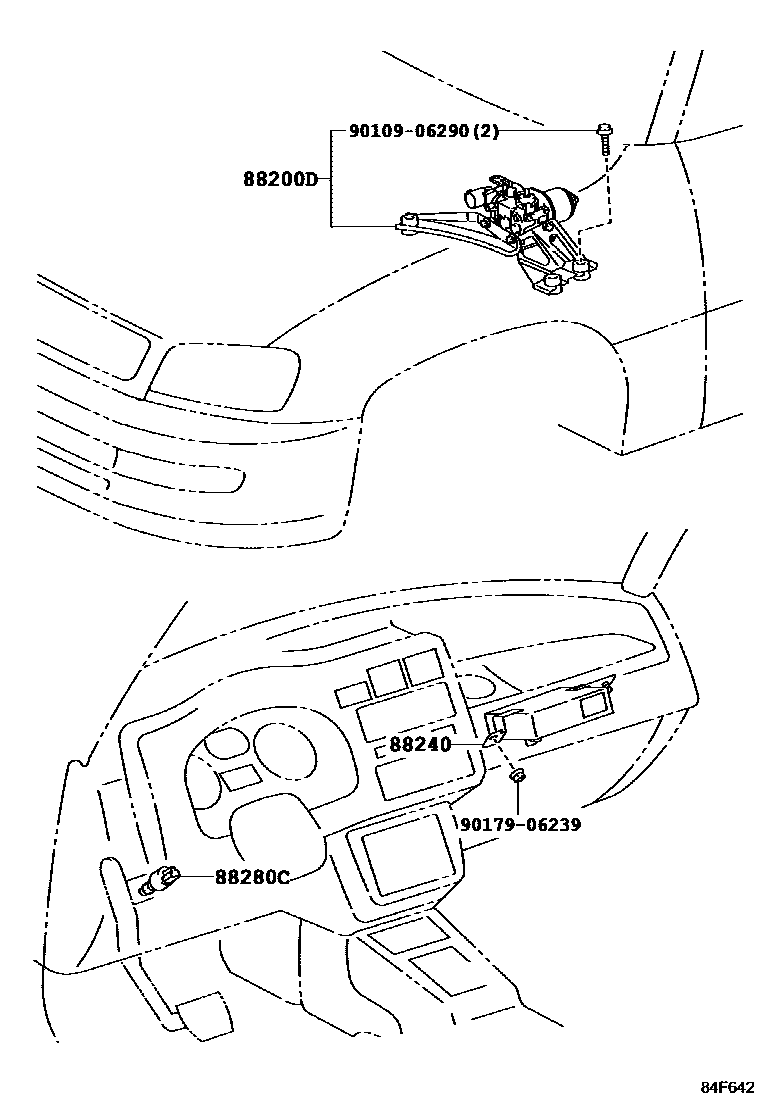

CRUISE CONTROL (AUTO DRIVE)

0001 1 0002 1

88200DACTUATOR ASSY, CRUISE CONTROL

main88002-42010iSXA1#199709

main88200-42010iSXA1#199511-199709

88240COMPUTER ASSY, CRUISE CONTROL

main88240-0W010iSXA1#199709-199811

sub88240-0W020

main88240-0W020iSXA1#199811-199910

sub88240-0W021

main88240-0W021iSXA1#199910

sub88240-0W022

main88240-42010iSXA1#199511-199709

88280CSWITCH ASSY, CLUTCH

main88280-14030iSXA1#..MTM199511

9010906290

main90109-06290

9017906239

main90179-06239

5 parts on this diagram · 2 diagrams in section
