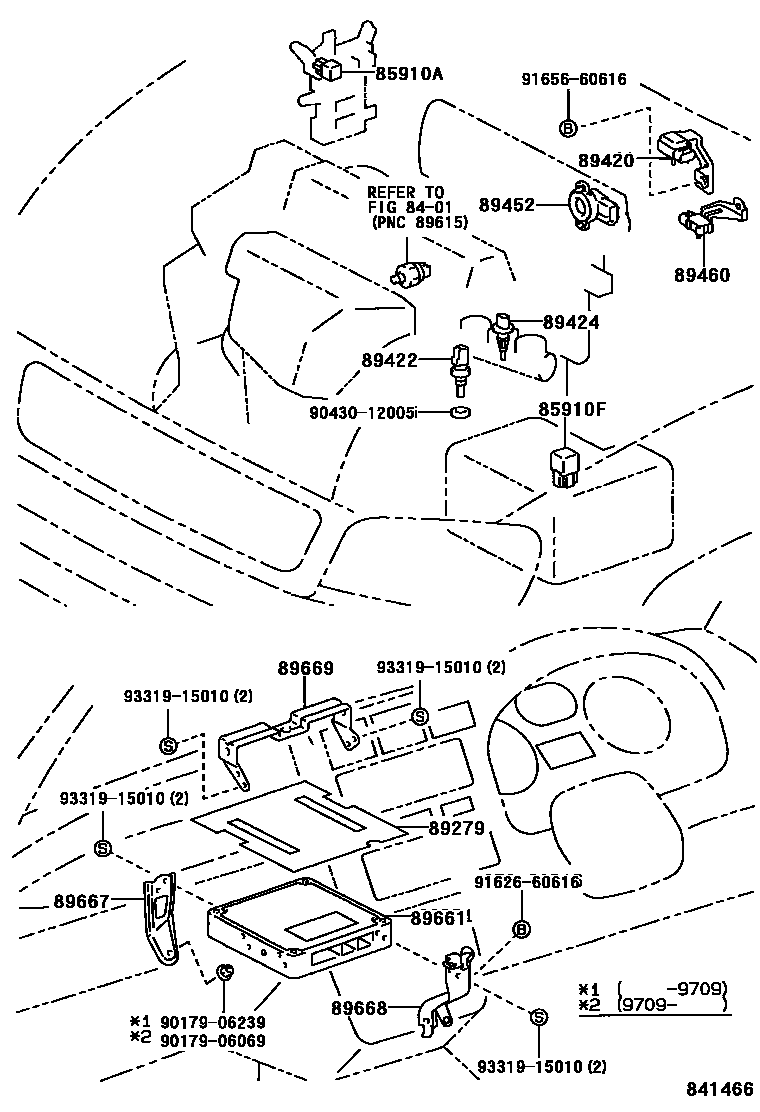

ELECTRONIC FUEL INJECTION SYSTEM
8401
85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910FRELAY, COMPUTER (FOR EFI)
89279COVER, ENGINE CONTROL COMPUTER
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89452SENSOR, THROTTLE POSITION (FOR E.F.I.)
89460SENSOR ASSY, VAPOR PRESSURE
89661COMPUTER, ENGINE CONTROL
sub89661-42231
sub89661-42241
sub89661-42251
sub89661-42261
sub89661-42231
sub89661-42232
sub89661-42241
sub89661-42242
sub89661-42251
sub89661-42252
sub89661-42261
sub89661-42262
sub89661-42361
sub89661-42371
sub89661-42381
sub89661-42391
TAIWAN SPEC
sub89661-42481
sub89661-42482
sub89661-42491
sub89661-42492
sub89661-42501
sub89661-42502
sub89661-42511
sub89661-42512
TAIWAN SPEC
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
89669BRACKET, ENGINE CONTROL COMPUTER, NO.3
9017906069
main90179-06069
9017906239
main90179-06239
9043012005
main90430-12005
9162660616
main91626-60616
9165660616
main91656-60616
9331915010
main93319-15010
19 parts on this diagram · 1 diagram in section
