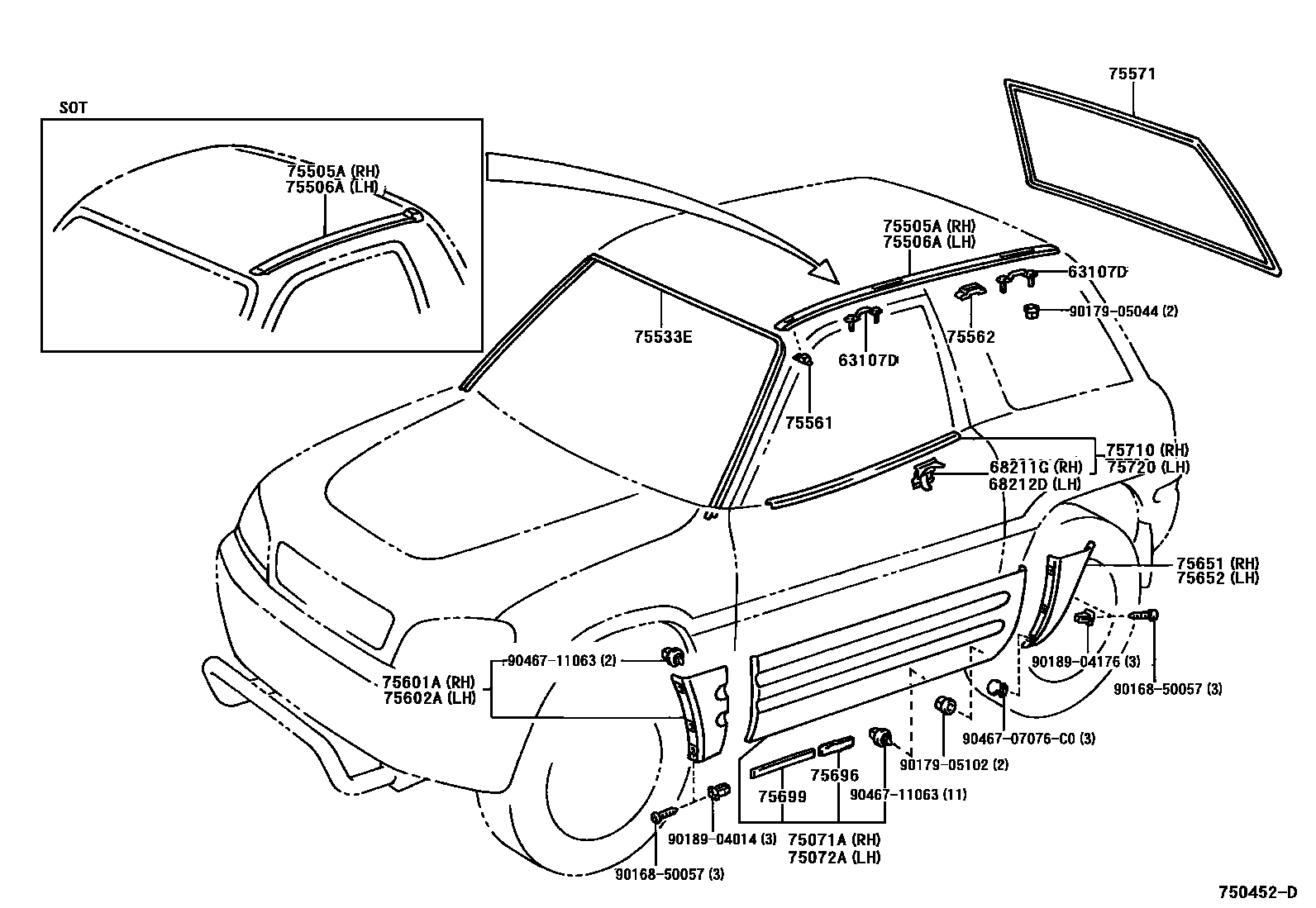

MOULDING

0001 1 0002 1 0003 1W(BUMPER EXTENTION) 0004 1W(BUMPER EXTENTION)

63107DBRACKET SUB-ASSY, ROOF MOULDING

main63107-42010iSXA1#¥520199511-199602

sub63107-42011¥530

main63107-42011iSXA1#..HT¥530199602

68211GCLIP(DOOR BELT MOULDING RH)

main68212-16010iSXA10,15¥270199511

68212DCLIP(DOOR BELT MOULDING LH)

main68212-16010iSXA10,15¥270199511

75071AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE RH

main75071-42011iSXA10,15¥28,100199511-200008

sub75071-42902¥28,100

main75071-42021iSXA11,16¥20,800199709-200008

W(235/60R16 TIRE) OR PAINTED

sub75071-42903¥20,800

main75071-42021iSXA11,16¥20,800199511-199709

sub75071-42903¥20,800

75072AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LH

main75072-42011iSXA10,15¥28,100199511

sub75072-42902¥28,100

main75072-42021iSXA11,16¥20,800199511-199709

sub75072-42903¥20,800

main75072-42021iSXA11,16¥20,800199709

W(235/60R16 TIRE) OR PAINTED

sub75072-42903¥20,800

75505AMOULDING SUB-ASSY, ROOF DRIP SIDE FINISH, RH

main75505-42010iSXA10,15..HT¥4,550199511

main75505-42020iSXA11,16¥5,800199511

main75505-42030iSXA10,15..SOT¥3,810199712

75506AMOULDING SUB-ASSY, ROOF DRIP SIDE FINISH, LH

main75506-42010iSXA10,15..HT¥4,550199511

main75506-42020iSXA11,16¥5,800199511

main75506-42030iSXA10,15..SOT¥3,810199712

75533EMOULDING, WINDSHIELD, OUTSIDE

main75533-42020iSXA1#¥4,670199511-199702

sub75533-42010¥5,700

main75533-42030iSXA1#¥6,500199702

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75561-42020iSXA1#¥320199511

75562CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.2

main75562-42020iSXA1#¥320199511

75571MOULDING, BACK WINDOW, OUTSIDE UPPER

main75573-42010iSXA15;SXA10,11,16..HT¥7,500199511

75601AMOULDING SUB-ASSY, FRONT FENDER, RH

main75601-42011iSXA1#¥6,000199511

sub75601-42901¥6,000

main75601-42900iSXA10,11..HT¥6,000199608

W(BUMPER EXTENTION)

main75601-42900iSXA10..SOT¥6,000199712

W(235/60R16 TIRE)

75602AMOULDING SUB-ASSY, FRONT FENDER, LH

main75602-42011iSXA1#¥6,000199511

sub75602-42901¥6,000

main75602-42900iSXA10..SOT¥6,000199712

W(235/60R16 TIRE)

main75602-42900iSXA10,11..HT¥6,000199608

W(BUMPER EXTENTION)

75651MOULDING, QUARTER, OUTSIDE RH

main75605-42900iSXA10..HT¥15,200199608

W(BUMPER EXTENTION)

main75605-42900iSXA10..SOT¥15,200199712

W(235/60R16 TIRE)

main75605-42901iSXA11¥9,100199608

W(BUMPER EXTENTION)

sub75605-42903¥9,100

main75651-42011iSXA10,15¥4,750199511

sub75651-42900¥4,750

main75651-42020iSXA11,16¥4,750199511

sub75651-42901¥4,750

75652MOULDING, QUARTER, OUTSIDE LH

main75606-42900iSXA10..HT¥15,200199608

W(BUMPER EXTENTION)

sub75606-42902¥15,200

main75606-42900iSXA10..SOT¥15,200199712

W(235/60R16 TIRE)

sub75606-42902¥15,200

main75606-42901iSXA11¥9,100199608

W(BUMPER EXTENTION)

main75652-42011iSXA10,15¥4,750199511

sub75652-42900¥4,750

main75652-42020iSXA11,16¥4,750199511

sub75652-42901¥4,750

75696PAD, BODY OUTSIDE MOULDING, NO.1

main75696-42010iSXA10,15¥120199709-199903

T=1.5

main75696-42010iSXA11,16¥120199709-199806

main75696-42030iSXA11,16¥260199709

T=5.0

main75697-42030iSXA10,11¥350199608

W(235/60R16 TIRE)

75699PAD, BODY OUTSIDE MOULDING, NO.4

main75699-42010iSXA10,15¥520199709-199906

T=1.2

main75699-42020iSXA11¥510199709

W(235/60R16 TIRE),T=1.2

sub75691-35010¥550

main75699-42030iSXA10,15¥580199906

sub75897-60010¥670

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-42010iSXA10,15¥5,100199511

main75710-42020iSXA11,16¥4,070199511

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-42010iSXA10,15¥5,100199511

main75720-42020iSXA11,16¥4,070199511

9016850057

main90168-50057¥120

9017905044

main90179-05044¥170

9017905102

main90179-05102¥90

9018904014

main90189-04014¥120

9018904176

main90189-04176¥130

9046707076C0

main90467-07076C0

9046711063

main90467-11063¥130

26 parts on this diagram · 4 diagrams in section
