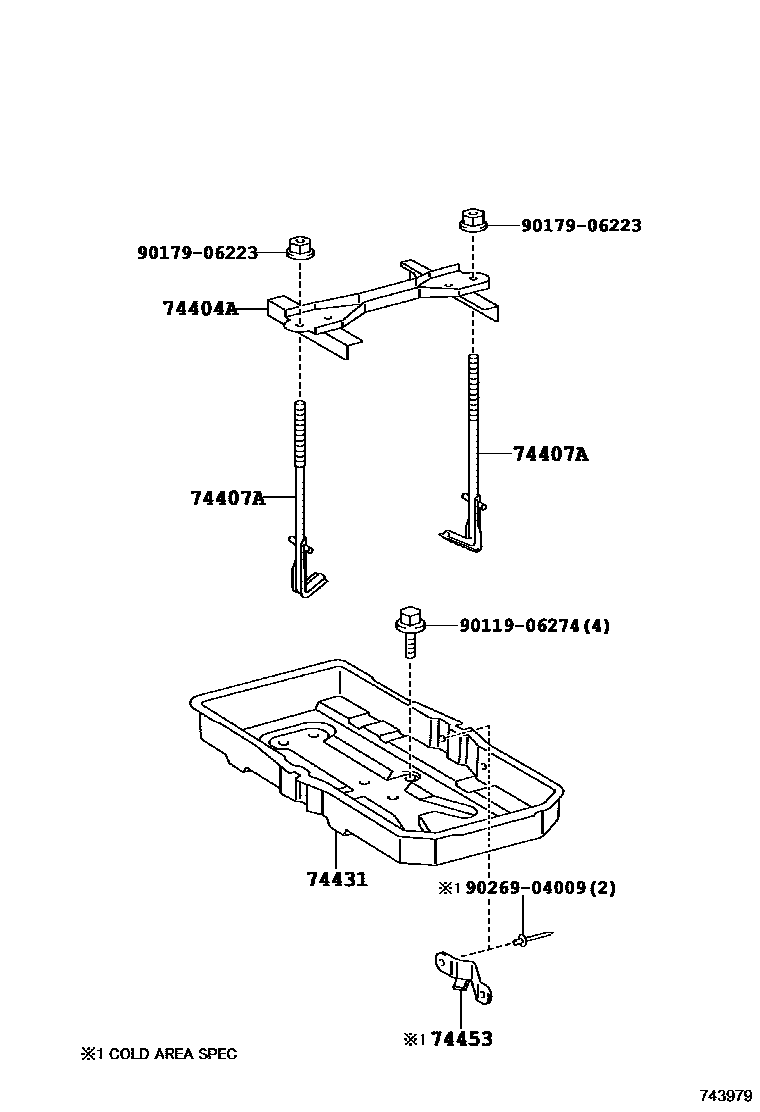

BATTERY CARRIER

74404ACLAMP SUB-ASSY, BATTERY

main74404-42020iSXA1#199511

main74404-42030iSXA10,16..MTM..HT199511-199608

COLD AREA SPEC

main74404-42030iSXA10,16..MTM..HT199608

COLD AREA SPEC OR CANADA SPEC

74407ABOLT SUB-ASSY, BATTERY CLAMP

main74407-42010iSXA1#199511

74431TRAY, BATTERY

main74431-42010iSXA1#199511

main74431-42020iSXA11,15;SXA10..SOT;SXA16..ATM199511-199608

COLD AREA SPEC

main74431-42020iSXA10,16..MTM..HT199608

COLD AREA SPEC OR CANADA SPEC

74453SUPPORT, BATTERY CARRIER

main74454-42010iSXA1#199511-199608

COLD AREA SPEC

main74454-42010iSXA10,16..MTM..HT199608

COLD AREA SPEC OR CANADA SPEC

main74454-42010iSXA10,15..SOT199712

9011906274

main90119-06274

9017906223

main90179-06223

9026904009

main90269-04009

7 parts on this diagram · 1 diagram in section
