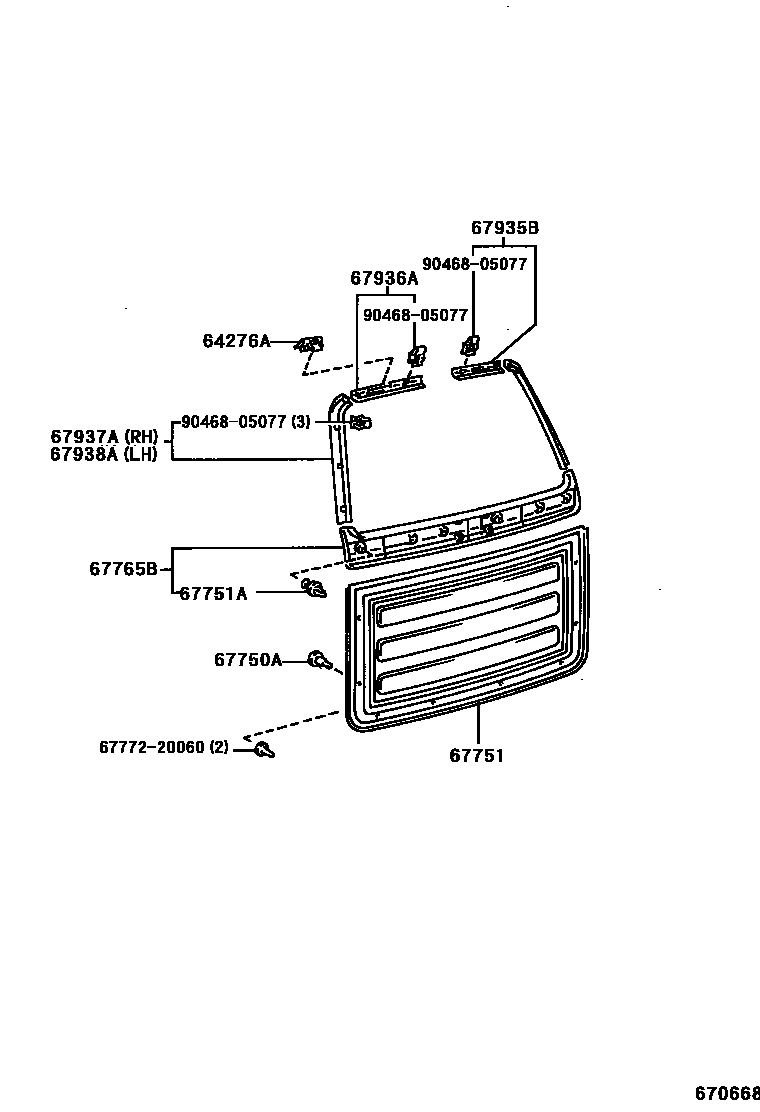

BACK DOOR PANEL & GLASS

0001 1 0002 1

64276ABRACKET, BACK PANEL TRIM, UPPER

main64276-42010iSXA1#..HT199511

67750ACLIP(FOR BACK DOOR TRIM)

main90467-07121-B0iSXA1#199511-199709

BLUISH GRAY,TRIM1#

sub90467-07121

sub90467-07207

main90467-07121-B2iSXA1#199709-200008

SHADOW GRAY,TRIM1#

sub90467-07121

sub90467-07207

67751BOARD, BACK DOOR TRIM

main67751-42010-B0iSXA1#199511-199709

BLUISH GRAY,TRIM1#

main67751-42010-B1iSXA1#..HT199709-200008

SHADOW GRAY,TRIM1#

main67751-42020-B0iSXA10,15199511-199709

W(REMOVABLE ROOF),BLUISH GRAY,TRIM1#

main67751-42020-B1iSXA10,15..SOT199712-200008

SHADOW GRAY,TRIM1#

67751ACLIP(FOR BACK DOOR TRIM BOARD)

main90467-10161iSXA1#199511

67765BCOVER, BACK DOOR TRIM, UPPER

main67765-42010-B0iSXA1#199511-199709

BLUISH GRAY,TRIM1#

main67765-42010-B1iSXA1#..HT199709-200008

SHADOW GRAY,TRIM1#

main67765-42020-B0iSXA10,15199511-199709

W(REMOVABLE ROOF),BLUISH GRAY,TRIM1#

main67765-42030-B0iSXA10,15..SOT199712-200008

SHADOW GRAY,TRIM1#

67935BGARNISH, BACK DOOR

main67935-42010-B0iSXA1#199511-199709

BLUISH GRAY,TRIM1#

sub67935-42010

main67935-42010-B1iSXA1#..HT199709-200008

SHADOW GRAY,TRIM1#

sub67935-42010

67936AGARNISH, BACK DOOR, LH

main67936-42010-B0iSXA1#199511-199709

BLUISH GRAY,TRIM1#

sub67936-42010

main67936-42010-B1iSXA1#..HT199709-200008

SHADOW GRAY,TRIM1#

sub67936-42010

67937AGARNISH, BACK DOOR SIDE

main67937-42010-B0iSXA1#199511-199709

BLUISH GRAY,TRIM1#

sub67937-42010

main67937-42010-B1iSXA1#..HT199709-200008

SHADOW GRAY,TRIM1#

sub67937-42010

67938AGARNISH, BACK DOOR SIDE, LH

main67938-42010-B0iSXA1#199511-199709

BLUISH GRAY,TRIM1#

sub67938-42010

main67938-42010-B1iSXA1#..HT199709-200008

SHADOW GRAY,TRIM1#

sub67938-42010

6777220060WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-20060

9046805077

main90468-05077

11 parts on this diagram · 2 diagrams in section
