REAR DOOR LOCK & HANDLE

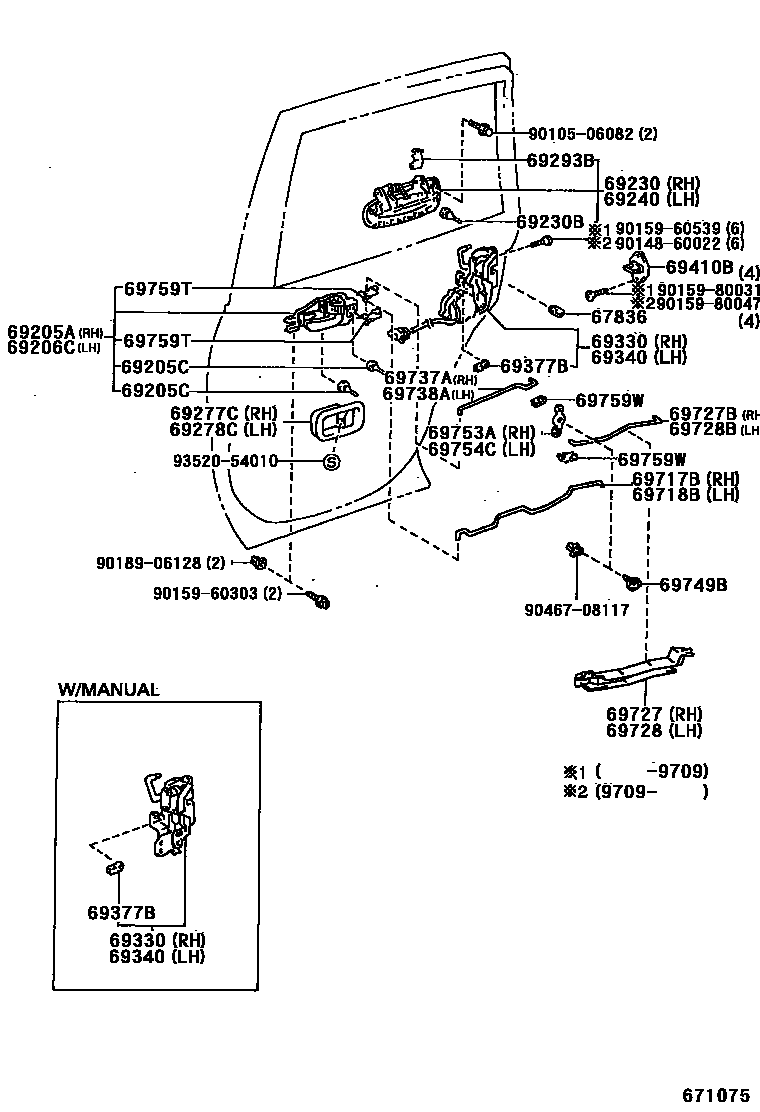

Parts diagram
67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH
main67836-42010i199511
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
main69205-42010-B0i199511-199709
BLUISH GRAY,TRIM1#
sub69205-42010
main69205-42010-B1i199709
SHADOW GRAY,TRIM1#
sub69205-42010
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
main90541-04018i199511
D=8.5
main90541-04020i199511
D=12.0
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
main69206-42010-B0i199511-199709
BLUISH GRAY,TRIM1#
sub69206-42010
main69206-42010-B1i199709
SHADOW GRAY,TRIM1#
sub69206-42010
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
main69230-12140i199511-199709
main69230-42010i199709-199808
sub69230-12140
main69230-42020-A1i199709-199808
WHITE,K60 ,056
sub69230-12150
sub69230-42020
main69230-42020-A2i199808-200007
L PACKAGE,WHITE PM
sub69230-12150
sub69230-42020
main69230-42020-B0i199709-199808
SILVER ME,K61 ,199
sub69230-12150
sub69230-42020
main69230-42020-C0i199808-200007
L PACKAGE,BLACK
sub69230-12150
sub69230-42020
main69230-42020-C0i199709-199808
BLACK,K62 ,202
sub69230-12150
sub69230-42020
main69230-42020-D0i199709-199808
WINE RED MC,K64 ,3J8
sub69230-12150
sub69230-42020
main69230-42020-E0i199709-199808
LT.BROWN ME,K66 ,4J6
sub69230-12150
sub69230-42020
main69230-42020-G0i199709-199808
DK.GREEN M.M.,K68 ,6P3
sub69230-12150
sub69230-42020
main69230-42020-J0i199709-199808
DK.BLUE MM.GR.,K70 ,8K5
sub69230-12150
sub69230-42020
main69230-42020-J1i199709-199808
BLUE M.M.,K71 ,8L5
sub69230-12150
sub69230-42020
main69230-42030i199808-200008
main69230-42040-A1i199808-200008
WHITE,K96 ,056
sub69230-42040
main69230-42040-B1i199808-200008
SILVER GR.SF.,K98 ,1B9
sub69230-42040
main69230-42040-C0i199808-200008
BLACK,K62 ,202
sub69230-42040
main69230-42040-D4i199808-200008
RED MC.,KA0 ,3M8
sub69230-42040
main69230-42040-E0i199808-200008
LT.BROWN ME,KA1 ,4J6
sub69230-42040
main69230-42040-G0i199904-200007
L PACKAGE,DK.GREEN M.M.,KD4
sub69230-42040
main69230-42040-G0i199808-200008
DK.GREEN M.M.,KA2 ,6P3
sub69230-42040
main69230-42040-H1i199808-200008
DK.TURQUOISE MC.,K95 ,760
sub69230-42040
main69230-42040-J1i199808-200008
BLUE M.M.,K71 ,8L5
sub69230-42040
69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)
main90541-04014i199511
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
main69240-12140i199511-199709
main69240-42010i199709-199808
sub69240-12140
main69240-42020-A1i199709-199808
WHITE,K60 ,056
sub69240-12150
main69240-42020-A2i199808-199907
L PACKAGE,WHITE PM,K18
sub69240-12150
main69240-42020-B0i199709-199808
SILVER ME,K61 ,199
sub69240-12150
main69240-42020-C0i199808-199907
L PACKAGE,BLACK,KA3
sub69240-12150
main69240-42020-C0i199709-199808
BLACK,K62 ,202
sub69240-12150
main69240-42020-D0i199709-199808
WINE RED MC,K64 ,3J8
sub69240-12150
main69240-42020-E0i199709-199808
LT.BROWN ME,K66 ,4J6
sub69240-12150
main69240-42020-G0i199709-199808
DK.GREEN M.M.,K68 ,6P3
sub69240-12150
main69240-42020-J0i199709-199808
DK.BLUE MM.GR.,K70 ,8K5
sub69240-12150
main69240-42020-J1i199709-199808
BLUE M.M.,K71 ,8L5
sub69240-12150
main69240-42030i199808-200008
main69240-42040-A1i199808-200008
WHITE,K96 ,056
sub69240-42040
main69240-42040-A2i199908-200007
L PACKAGE,WHITE PM,K18
sub69240-42040
main69240-42040-B1i199808-200008
SILVER GR.SF.,K98 ,1B9
sub69240-42040
main69240-42040-C0i199808-200008
BLACK,K62 ,202
sub69240-42040
main69240-42040-C0i199908-200007
L PACKAGE,BLACK,KA3
sub69240-42040
main69240-42040-D4i199808-200008
RED MC.,KA0 ,3M8
sub69240-42040
main69240-42040-E0i199808-200008
LT.BROWN ME,KA1 ,4J6
sub69240-42040
main69240-42040-G0i199904-200007
L PACKAGE,DK.GREEN M.M.,KD4
sub69240-42040
main69240-42040-G0i199808-200008
DK.GREEN M.M.,KA2 ,6P3
sub69240-42040
main69240-42040-H1i199808-200008
DK.TURQUOISE MC.,K95 ,760
sub69240-42040
main69240-42040-J1i199808-200008
BLUE M.M.,K71 ,8L5
sub69240-42040
69277CBEZEL, REAR DOOR INSIDE HANDLE, RH
main69277-22070-B0i199511-199709
BLUISH GRAY,TRIM1#
sub69277-22070
main69277-22070-B1i199709
SHADOW GRAY,TRIM1#
sub69277-22070
69278CBEZEL, REAR DOOR INSIDE HANDLE, LH
main69278-22030-B0i199511-199709
BLUISH GRAY,TRIM1#
sub69278-22030
main69278-22030-B1i199709
SHADOW GRAY,TRIM1#
sub69278-22030
69293BSNAP, REAR DOOR OUTSIDE HANDLE
main69293-12030i199511
RH
main69293-12040i199511
LH
69330LOCK ASSY, REAR DOOR, RH
main69050-42011i199511
W(*EL)
main69330-42011i199511
69340LOCK ASSY, REAR DOOR, LH
main69060-42011i199511
W(*EL)
main69340-42011i199511
69377BSNAP, REAR DOOR LOCK CONTROL ROD
main69759-20040i199511
RH-YELLOW
main69759-20050i199511
LH-BROWN
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
main69410-20070i199511-199709
main69410-87001i199709
69717BLINK, REAR DOOR LOCK REMOTE CONTROL, RH
main69713-42010i199511
69718BLINK, REAR DOOR LOCK REMOTE CONTROL, LH
main69714-42010i199511
69727PROTECTOR, REAR DOOR INSIDE LOCKING LINK, RH
main69727-42010i199511
69727BLINK, REAR DOOR INSIDE LOCKING, NO.2 RH
main69727-42020i199511
69728PROTECTOR, REAR DOOR INSIDE LOCKING LINK, LH
main69728-42010i199511
69728BLINK, REAR DOOR INSIDE LOCKING, NO.2 LH
main69728-42020i199511
69737ALINK, REAR DOOR INSIDE LOCKING , RH
main69737-42010i199511
69738ALINK, REAR DOOR INSIDE LOCKING , LH
main69738-42010i199511
69749BCLAMP, REAR DOOR LOCK LINK
main69749-32030i199511
69753ABELLCRANK, DOOR LOCK CONTROL
main69753-20060i199511
69754CBELLCRANK, DOOR LOCK CONTROL, LH
main69753-20060i199511
69759TSNAP, REAR DOOR INSIDE HANDLE
main69759-14050i199511
LH-PINK
main69759-24070i199511
RH-YELLOW
69759WSNAP, REAR DOOR LOCK CONTROL LINK
main69759-24030i199511
9010506082
main90105-06082
9014860022
main90148-60022
9015960303
main90159-60303
9015960539
main90159-60539
9015980031
main90159-80031
9015980047
main90159-80047
9018906128
main90189-06128
9046708117
main90467-08117
9352054010
main93520-54010

36 parts on this diagram · 1 diagram in section
