FRONT DOOR WINDOW REGULATOR & HINGE

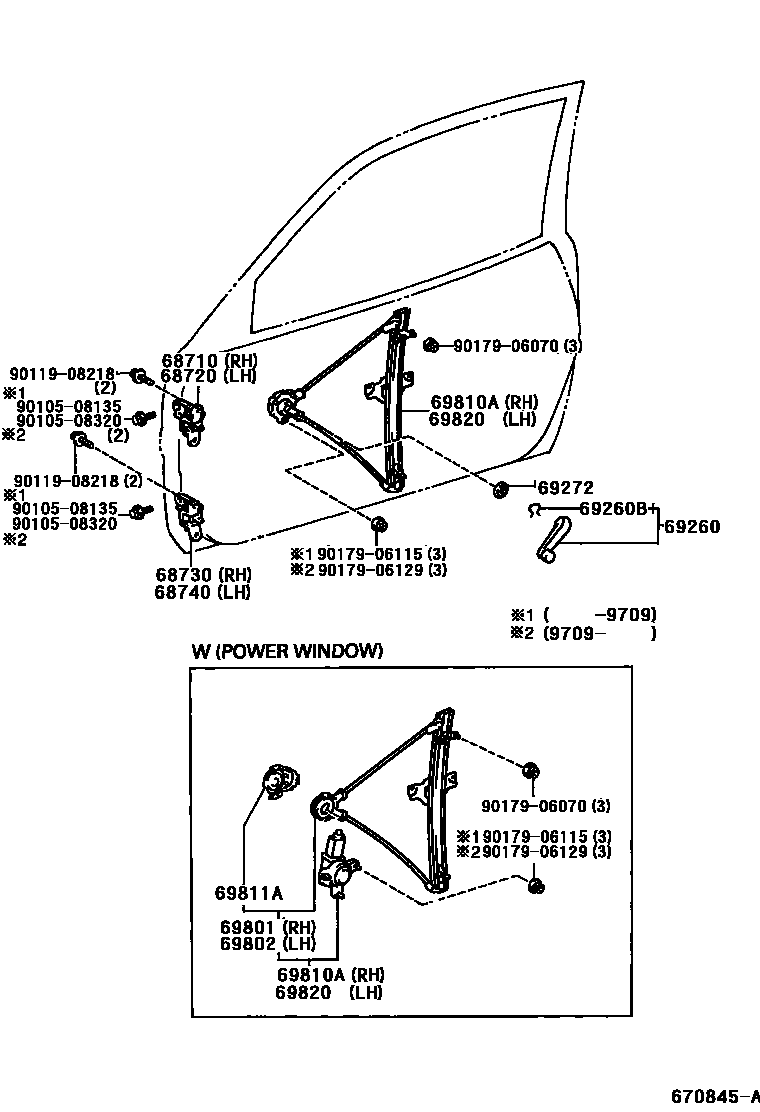

Parts diagram
68710HINGE ASSY, FRONT DOOR, UPPER RH
main68710-22080i199511
sub68710-22081
68720HINGE ASSY, FRONT DOOR, UPPER LH
main68720-22070i199511
sub68720-22071
68730HINGE ASSY, FRONT DOOR, LOWER RH
main68730-22060i199511
68740HINGE ASSY, FRONT DOOR, LOWER LH
main68740-22060i199511
69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
main69260-20090-B0i199511-199709
BLUEISH GRAY,TRIM1#
sub69260-20090
main69260-20090-B1i199709
SHADOW GRAY,TRIM1#
sub69260-20090
69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)
main90520-01002i199511-199709
sub90520-01274
main90520-01274i199709
69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
main69285-22010-08i199511-200008
NATURAL WHITE,TRIM1#
sub69285-22010
69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
main69801-42012i199511
main69801-42021i199511
69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
main69802-42012i199511
main69802-42021i199511
69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH
main69810-42012i199511-199709
W(POWER WINDOW)
sub69810-42013
main69810-42013i199709
W(POWER WINDOW)
main69810-42021i199511
main69810-42031i199511
main69810-42041i199511
W(POWER WINDOW)
69811APLATE, FRONT DOOR POWER WINDOW REGULATOR BASE
main69811-42010i199511
RH
main69812-42010i199511
LH
main69813-20050i199511
RH
main69814-20050i199511
LH
69820REGULATOR ASSY, FRONT DOOR WINDOW, LH
main69820-42012i199511-199709
W(POWER WINDOW)
sub69820-42013
main69820-42021i199511
main69820-42031i199511
main69820-42041i199511-199709
W(POWER WINDOW)
main69820-42090i199709
W(POWER WINDOW)
main69820-42100i199709
W(POWER WINDOW)
9010508135
main90105-08135
9010508320
main90105-08320
9011908218
main90119-08218
9017906070
main90179-06070
9017906115
main90179-06115
9017906129
main90179-06129

18 parts on this diagram · 1 diagram in section
