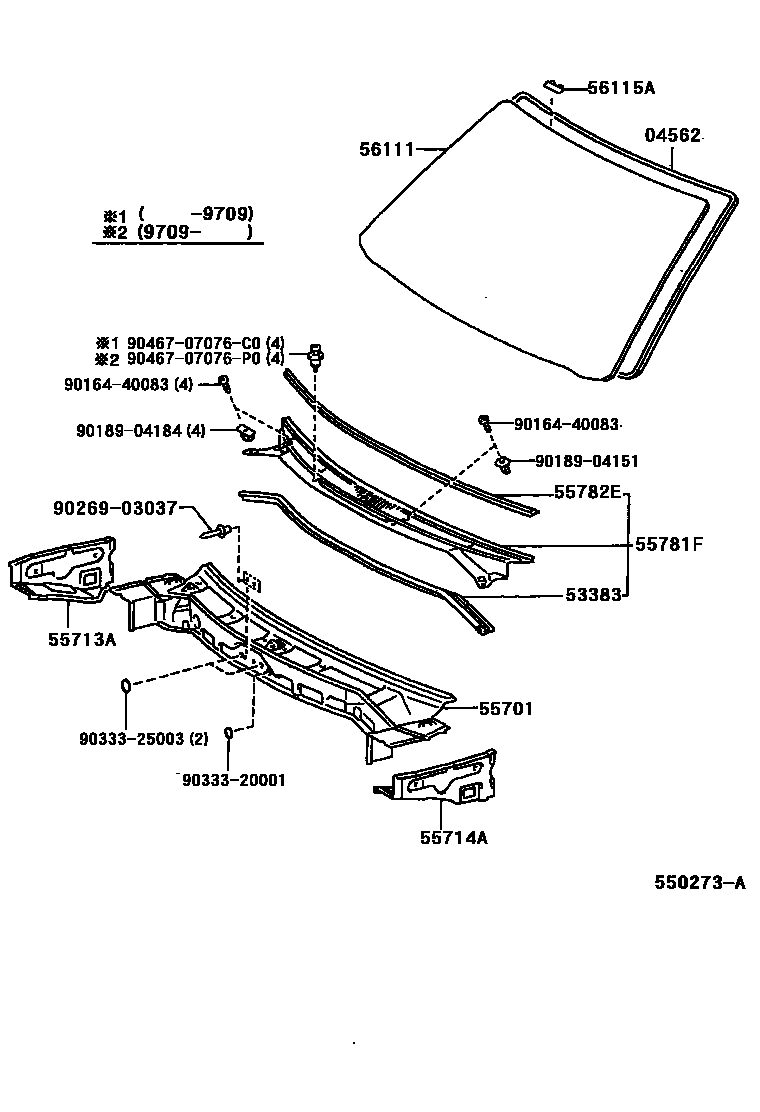

COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-12010iSXA1#199511-199709

53383SEAL, HOOD TO COWL TOP

main53383-42010iSXA1#199511

55701PANEL SUB-ASSY, COWL

main55700-42100iSXA1#199511-199608

main55700-42190iSXA1#199608-199709

main55700-42250iSXA10,11..MTM199709

main55700-42260iSXA1#..ATM199709

main55700-42270iSXA15,16..MTM199709

main55700-42280iSXA10,11..MTM199709

W(235/60R16 TIRE)

main55700-42290iSXA10,11..ATM199709

W(235/60R16 TIRE)

55713APANEL, COWL TOP SIDE, RH

main55713-42010iSXA1#199511-199608

sub55713-42011

main55713-42011iSXA1#199608

55714APANEL, COWL TOP SIDE, LH

main55714-42010iSXA1#199511-199608

sub55714-42011

main55714-42011iSXA1#199608

55781FLOUVER, COWL TOP VENTILATOR

main55708-42020iSXA1#199511-199702

main55708-42040iSXA1#199702

main55708-42050iSXA1#..HT199707

COLD SPEC;CANADA SPEC

main55708-42050iSXA10,15..SOT199712

COLD AREA OR CANADA SPEC

55782EPROTECTOR, COWL TOP VENTILATOR LOUVER

main55782-42010iSXA1#199511-199702

main55782-42020iSXA1#199702

sub55782-42010

56111GLASS, WINDSHIELD

main56111-42040iSXA1#199511

*TL,T=5.3,GREEN

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-20080iSXA1#199511

9016440083

main90164-40083

9018904151

main90189-04151

9018904184

main90189-04184

9033320001

main90333-20001

9033325003

main90333-25003

9046707076C0

main90467-07076C0

9046707076P0

main90467-07076P0

16 parts on this diagram · 1 diagram in section
