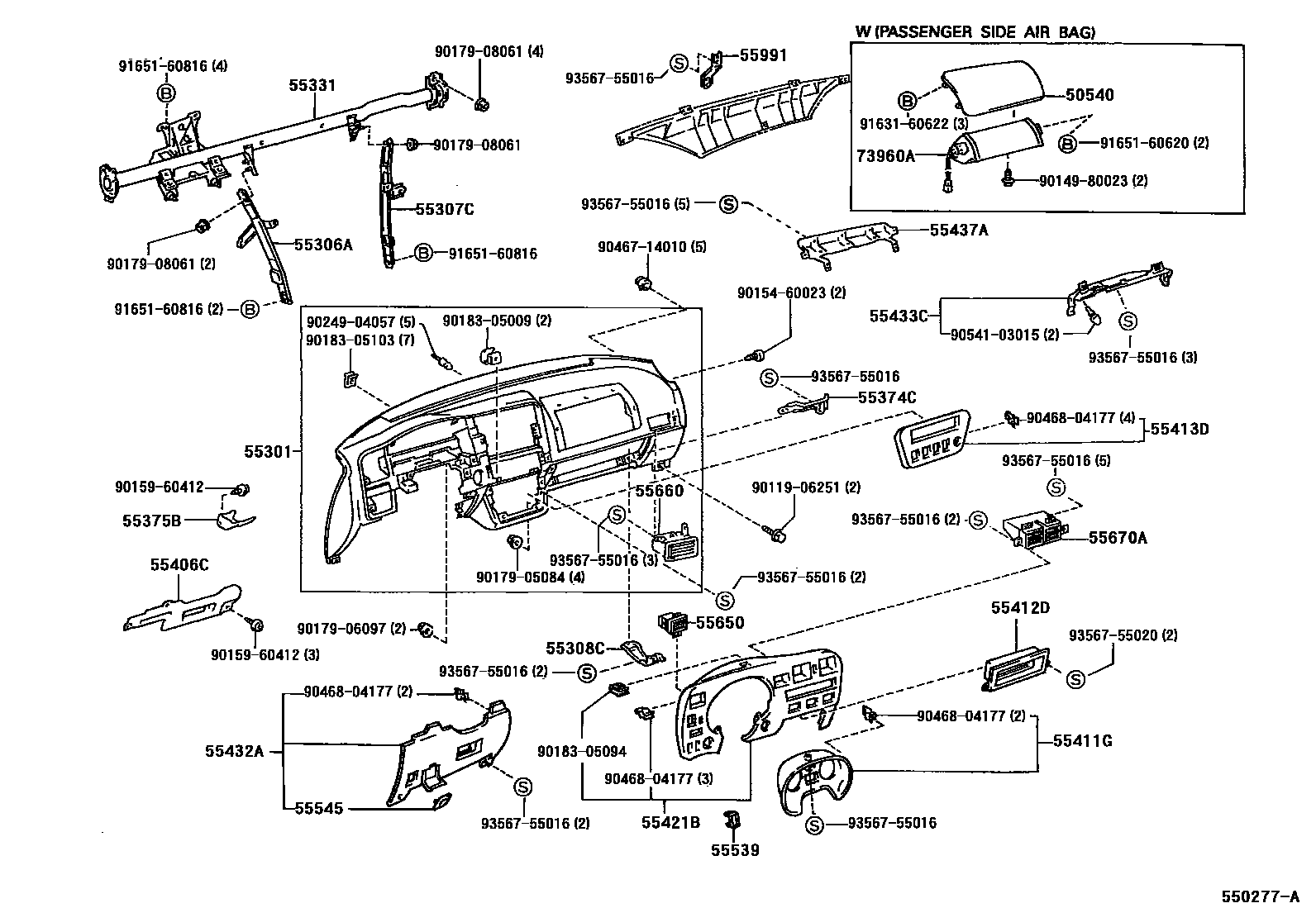

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

50540DO0R ASSY, AIRBAG PASSENGER

main50540-42020-B0iSXA1#199511-199709

BLUISH GRAY,TRIM1#

sub50540-42040¥8,600

main50540-42040-B0iSXA1#199709

SHADOW GRAY,TRIM1#

55301PANEL SUB-ASSY, INSTRUMENT

main55301-42040-B0iSXA1#199511-199709

BLUISH GRAY,TRIM1#

main55301-42040-B1iSXA16..ATM;SXA10,11,15199709

CANADA SPEC,SHADOW GRAY,TRIM1#

main55301-42050-B0iSXA1#199709

SHADOW GRAY,TRIM1#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-42040iSXA1#¥2,860199511-199709

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-42040iSXA1#¥2,160199511

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-42020iSXA1#¥1,470199511

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-42040iSXA1#¥16,300199511-199709

main55330-42050iSXA16..ATM;SXA10,11,15¥16,000199709-199808

CANADA SPEC

main55330-42060iSXA1#¥16,800199709-199808

main55330-42110iSXA16..ATM;SXA10,11,15¥16,500199808

CANADA SPEC

main55330-42120iSXA1#¥17,000199808

55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1

main55374-42020iSXA1#¥460199511

55375BBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2

main55375-42010iSXA1#¥1,340199709

main55375-42020iSXA1#¥1,470199511-199709

55406CINSERT SUB-ASSY, INSTRUMENT PANEL, LOWER LH

main55406-42010iSXA1#¥4,330199709

main55406-42020iSXA1#¥3,600199511-199709

55411GPANEL, INSTRUMENT CLUSTER FINISH, NO.1

main55411-42010iSXA1#¥4,190199511-199709

main55411-42010iSXA16..ATM;SXA10,11,15¥4,190199709

CANADA SPEC

main55411-42020iSXA1#¥4,190199709

55412DPANEL, INSTRUMENT CLUSTER FINISH, CENTER

main55412-42020-C0iSXA1#199511

BLACK,TRIM1#

55413DPANEL, INSTRUMENT CLUSTER FINISH, CENTER LOWER

main55413-42020-B0iSXA1#199511-199709

BLUISH GRAY,TRIM1#

sub55413-42020¥2,590

main55413-42020-B1iSXA1#199709

SHADOW GRAY,TRIM1#

sub55413-42020¥2,590

55421BPANEL, INSTRUMENT CLUSTER FINISH, UPPER

main55421-42020-C0iSXA1#199511-199709

BLACK,TRIM1#

main55421-42051-B0iSXA1#199709

DARK GRAY,TRIM1#

main55421-42070-B0iSXA16..ATM;SXA10,11,15199709

CANADA SPEC,DARK GRAY,TRIM1#

55432APANEL, INSTRUMENT PANEL FINISH, LOWER RH

main55432-42020-B0iSXA1#199511-199709

BLUISH GRAY,TRIM1#

main55432-42040-B0iSXA16..ATM;SXA10,11,15199709

CANADA SPEC,SHADOW GRAY,TRIM1#

main55432-42050-B0iSXA1#199709

SHADOW GRAY,TRIM1#

55433CPANEL, INSTRUMENT PANEL FINISH, LOWER LH

main55433-42010iSXA1#¥2,520199511

55437ARETAINER, INSTRUMENT PANEL FINISH PANEL, NO.1

main55437-42020iSXA1#¥2,100199511

55539COVER, SPARE SWITCH HOLE

main55539-32010-C0iSXA15,16..MTM199706-199709

BLACK,TRIM1#

sub55539-32010¥460

sub55539-32030¥470

main55539-42021-B0iSXA10..SOT;SXA15,16..MTM;SXA15..ATM..SOT199712-200008

DARK GRAY,TRIM1#

sub55539-42030¥410

55545COVER, FUSE BOX OPENING

main55545-42020-B0iSXA1#199709

SHADOW GRAY,TRIM1#

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-42020-C0iSXA1#199511-199902

BLACK,TRIM1#

sub55650-42021¥3,590

main55650-42021-C0iSXA1#199904

BLACK,TRIM1#

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-42020-B0iSXA1#199511-199709

BLUISH GRAY,TRIM1#

sub55660-42020¥5,200

main55660-42020-B1iSXA1#199709

SHADOW GRAY,TRIM1#

sub55660-42020¥5,200

55670AREGISTER ASSY, INSTRUMENT PANEL, CENTER

main55670-42010-C0iSXA1#199511-199902

BLACK,TRIM1#

sub55670-42011¥8,500

main55670-42011-C0iSXA1#199904-200008

BLACK,TRIM1#

55991BRACKET, DEFROSTER DUCT, NO.1

main55991-42010iSXA1#¥320199511

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-0W080iSXA1#¥206,000199511-199709

main73960-0W191iSXA1#¥120,000199709

9011906251

main90119-06251¥160

9014980023

main90149-80023¥120

9015460023

main90154-60023¥120

9015960412

main90159-60412¥120

9017905084

main90179-05084¥160

9017906097

main90179-06097¥320

9017908061

main90179-08061¥80

9018305009

main90183-05009¥90

9018305094

main90183-05094¥90

9018305103

main90183-05103¥90

9024904057

main90249-04057¥230

9046714010

main90467-14010¥160

9046804177

main90468-04177¥40

9054103015

main90541-03015¥110

9163160622

main91631-60622¥70

9165160620

main91651-60620¥80

9165160816

main91651-60816¥100

9356755016

main93567-55016¥110

9356755020

main93567-55020¥70

42 parts on this diagram · 2 diagrams in section
