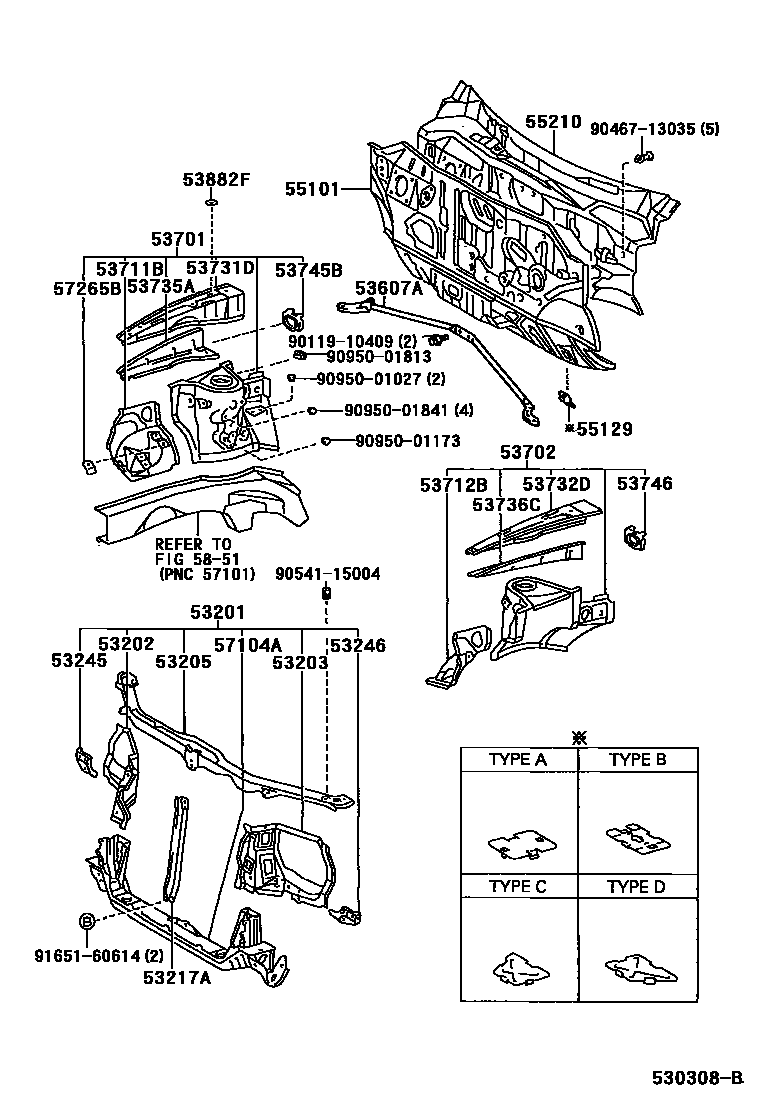

FRONT FENDER APRON & DASH PANEL
53202SUPPORT SUB-ASSY, RADIATOR, RH
sub53211-42020
53217ABRACE, HOOD LOCK SUPPORT
53245BRACKET, HEADLAMP, RH
53246BRACKET, HEADLAMP, LH
53607ABRACE SUB-ASSY, FRONT SUSPENSION, UPPER CENTER
53711BAPRON, FRONT FENDER, FRONT RH
53712BAPRON, FRONT FENDER, FRONT LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53735AMEMBER, FRONT APRON TO COWL SIDE, LOWER RH
53736CMEMBER, FRONT APRON TO COWL SIDE, LOWER LH
53745BREINFORCEMENT, FRONT FENDER APRON, REAR RH
53746REINFORCEMENT, FRONT FENDER APRON, REAR LH
53882FSEAL, FRONT FENDER
55129COVER, DASH PANEL HOLE
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
TYPE C (RH)
TYPE D (LH)
57104AMEMBER SUB-ASSY, FRONT CROSS
5851
9011910409
main90119-10409
9046713035
main90467-13035
9054115004
main90541-15004
9095001027
main90950-01027
9095001173
main90950-01173
9095001813
main90950-01813
9095001841
main90950-01841
9165160614
main91651-60614
33 parts on this diagram · 1 diagram in section
