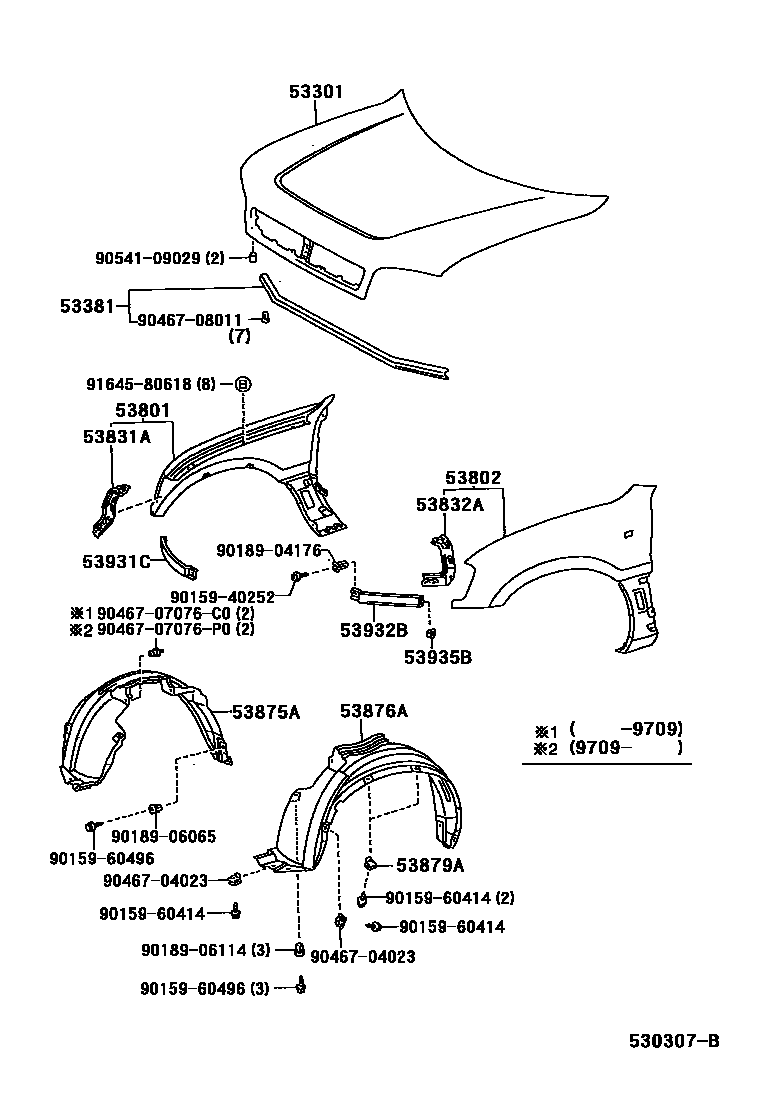

HOOD & FRONT FENDER

53301HOOD SUB-ASSY

main53301-42012iSXA1#199511

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-42010iSXA1#199511

53801FENDER SUB-ASSY, FRONT RH

main53801-42030iSXA1#199511-199709

main53801-42060iSXA10,11199608-199709

W(BUMPER EXTENTION)

main53801-42070iSXA1#199709

main53801-42080iSXA10,11199709

WIDE BODY

53802FENDER SUB-ASSY, FRONT LH

main53802-42030iSXA1#199511-199709

main53802-42060iSXA10,11199608-199709

W(BUMPER EXTENTION)

main53802-42070iSXA1#199709

main53802-42080iSXA10,11199709

WIDE BODY

53831APANEL, FRONT FENDER SIDE, UPPER RH

main53831-42010iSXA1#199511

53832APANEL, FRONT FENDER SIDE, UPPER LH

main53832-42010iSXA1#199511

53875ALINER, FRONT FENDER, RH

main53875-42010iSXA1#199511-199605

sub53875-42011

main53875-42011iSXA1#199605-199706

sub53875-42012

main53875-42012iSXA1#199706

53876ALINER, FRONT FENDER, LH

main53876-42010iSXA1#199511-199605

sub53876-42011

main53876-42011iSXA1#199605-199706

sub53876-42012

main53876-42012iSXA1#199706

53879ARETAINER, FRONT FENDER LINER

main53879-14020iSXA1#199511

53931CPANEL, FRONT END

main53931-42010iSXA1#199511

53932BPANEL, FRONT END, LH

main53932-42010iSXA1#199511

53935BPROTECTOR, FRONT END PANEL

main53935-42010iSXA1#199511

9015940252

main90159-40252

9015960414

main90159-60414

9015960496

main90159-60496

9018904176

main90189-04176

9018906065

main90189-06065

9018906114

main90189-06114

9046704023

main90467-04023

9046707076C0

main90467-07076C0

9046707076P0

main90467-07076P0

9046708011

main90467-08011

9054109029

main90541-09029

9164580618

main91645-80618

24 parts on this diagram · 1 diagram in section
