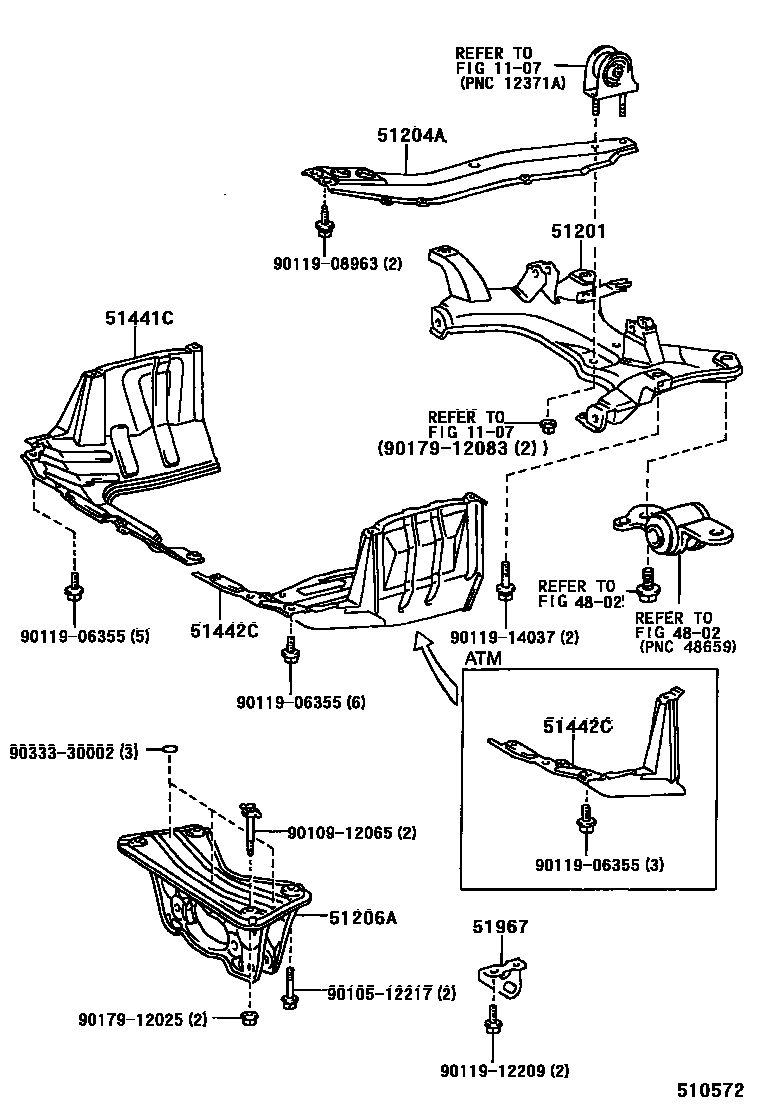

SUSPENSION CROSSMEMBER & UNDER COVER

1107

4802

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-42012iSXA1#199511-199709

sub51201-42040

main51201-42040iSXA1#199709

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-42012iSXA1#199511-199608

sub51204-42013

main51204-42013iSXA1#199608

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-42011iSXA1#199511

51441CCOVER, ENGINE UNDER, RH

main51441-42010iSXA1#199511

51442CCOVER, ENGINE UNDER, LH

main51442-42011iSXA1#..MTM199511

main51442-42020iSXA11,15,16..ATM199511-199603

sub51442-42021

main51442-42021iSXA1#..ATM199603

51967HOOK, TRANSPORT, REAR

main51967-42010iSXA1#199511

9010512217

main90105-12217

9010912065

main90109-12065

9011906355

main90119-06355

9011908963

main90119-08963

9011912209

main90119-12209

9011914037

main90119-14037

9017912025

main90179-12025

9033330002

main90333-30002

16 parts on this diagram · 1 diagram in section
