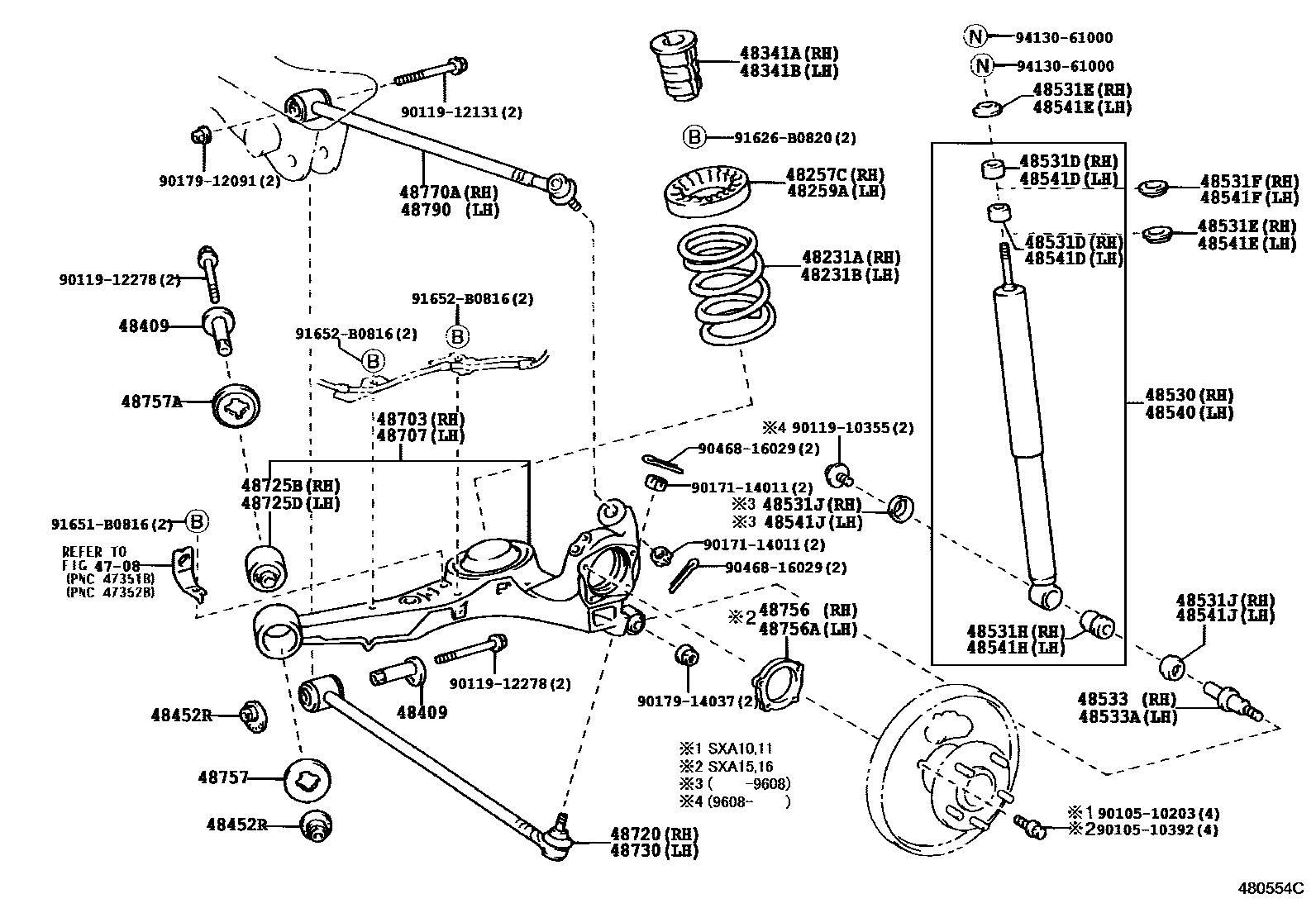

REAR SPRING & SHOCK ABSORBER
4708
48231ASPRING, COIL, REAR RH
W(235/60R16 TIRE)
W(235/60R16 TIRE)
48231BSPRING, COIL, REAR LH
W(235/60R16 TIRE)
W(235/60R16 TIRE)
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48341ABUMPER, REAR SPRING, NO.1 RH
48341BBUMPER, REAR SPRING, NO.1 LH
48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
48452RPLATE, REAR SUSPENSION TOE ADJUST, NO.2
48530ABSORBER ASSY, SHOCK, REAR RH
W(235/60R16 TIRE)
W(235/60R16 TIRE)
W(ELECTRIC MOON ROOF)
48531DCUSHION, REAR SHOCK ABSORBER, NO.2 RH
LOWER
UPPER
48531ERETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER RH)
W(235/60R16 TIRE)
48531FRETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER RH)
48531HBUSH(FOR REAR SHOCK ABSORBER RH)
48531JWASHER, REAR SHOCK ABSORBER CUSHION, NO.1 RH
OUTER
INNER
48533PIN, REAR SHOCK ABSORBER LOWER PIVOT, RH
48533APIN, REAR SHOCK ABSORBER LOWER PIVOT, LH
48540ABSORBER ASSY, SHOCK, REAR LH
W(235/60R16 TIRE)
W(235/60R16 TIRE)
W(ELECTRIC MOON ROOF)
48541DCUSHION, REAR SHOCK ABSORBER, NO.2 LH
LOWER
UPPER
48541ERETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER LH)
W(235/60R16 TIRE)
48541FRETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER LH)
48541HBUSH(FOR REAR SHOCK ABSORBER LH)
48541JWASHER, REAR SHOCK ABSORBER CUSHION, NO.1 LH
OUTER
INNER
48703ARM SUB-ASSY, REAR SUSPENSION, RH
W(ABS)
48707ARM SUB-ASSY, REAR SUSPENSION, LH
W(ABS)
48720ARM ASSY, LOWER CONTROL, RH
48725BBUSH, REAR SUSPENSION ARM, NO.1
48725DBUSH, REAR SUSPENSION ARM, NO.3
48730ARM ASSY, LOWER CONTROL, LH
48756PIECE, REAR SUSPENSION ARM, RH
48756APIECE, REAR SUSPENSION ARM, LH
48757ATTACHMENT, REAR SUSPENSION ARM
48757AATTACHMENT, REAR SUSPENSION ARM, NO.2
48770AARM ASSY, UPPER CONTROL, REAR RH
48790ARM ASSY, UPPER CONTROL, REAR LH
9010510203
9010510392
9011910355
9011912131
9011912278
9017114011
9017912091
9017914037
9046816029
91626B0820
91651B0816
91652B0816
9413061000
48 parts on this diagram · 1 diagram in section
