FRONT SPRING & SHOCK ABSORBER

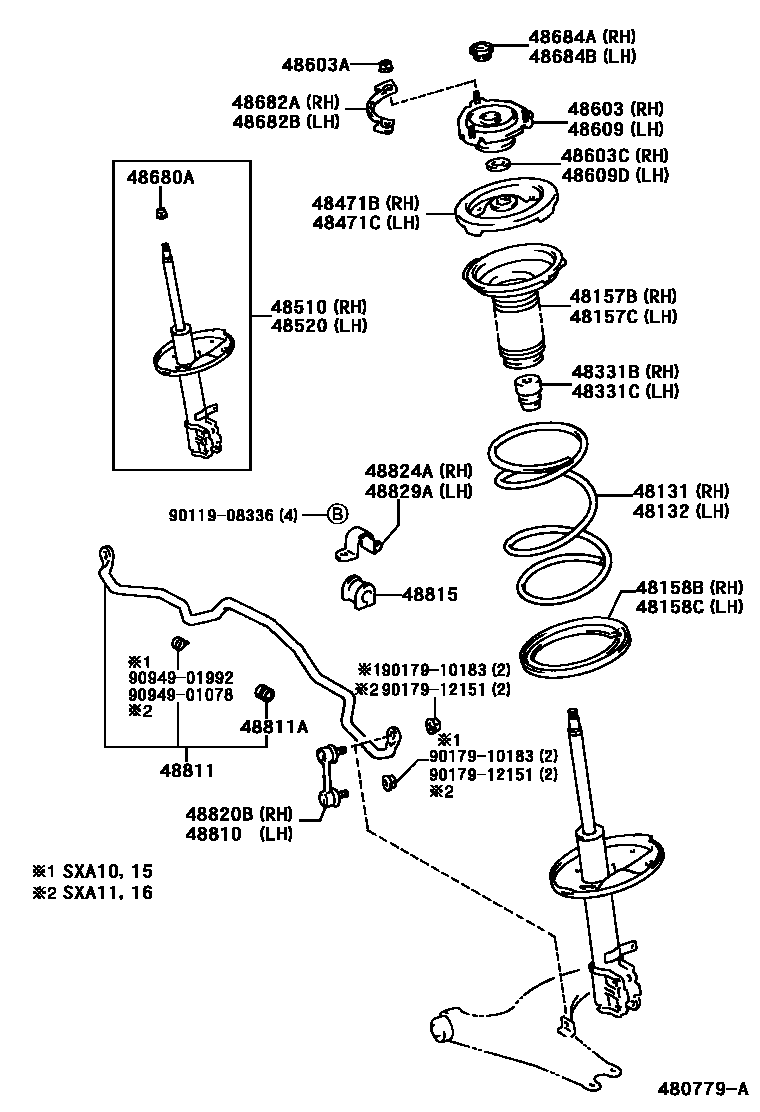

Parts diagram
48131SPRING, FRONT COIL, RH
main48131-42010i¥7,500199602-199906
W(MANUAL AIR CONDITIONER)
sub48131-42011¥7,500
main48131-42011i¥7,500199906
W(MANUAL AIR CONDITIONER)
main48131-42020i¥7,800199709-199906
W(MANUAL AIR CONDITIONER)
sub48131-42021¥7,800
main48131-42021i¥7,800199906
W(MANUAL AIR CONDITIONER)
main48131-42030i¥7,600199511-199709
sub48131-42031¥9,200
main48131-42031i¥9,200199709
main48131-42041i¥9,200199709
W(MANUAL AIR CONDITIONER)
main48131-42041i¥9,200199709
W(235/60R16 TIRE & MANUAL AIR CONDITIONER)
main48131-42041i¥9,200199712
W(235/60R16 TIRE)
main48131-42050i¥7,800199712-199906
W(235/60R16 TIRE & MANUAL AIR CONDITIONER)
sub48131-42051¥7,800
main48131-42050i¥7,800199511-199709
sub48131-42051¥7,800
main48131-42051i¥7,800199906
W(235/60R16 TIRE & MANUAL AIR CONDITIONER)
main48131-42060i¥8,100199511-199709
sub48131-42061¥8,100
main48131-42060i¥8,100199511-199906
W(MANUAL AIR CONDITIONER)
sub48131-42061¥8,100
main48131-42061i¥8,100199906
W(MANUAL AIR CONDITIONER)
main48131-42070i¥7,400199602-199709
main48131-42080i¥7,800199602-199709
W(MANUAL AIR CONDITIONER)
main48131-42080i¥7,800199709
main48131-42090i¥8,000199511-199709
W(MANUAL AIR CONDITIONER)
sub48131-42091¥9,400
main48131-42091i¥9,400199709
W(MANUAL AIR CONDITIONER)
main48131-42091i¥9,400199712
main48131-42100i¥7,400199602-199608
sub48131-42101¥7,400
main48131-42101i¥7,400199608-199610
sub48131-42102¥7,400
main48131-42102i¥7,400199610-199709
main48131-42110i¥7,800199602-199608
W(MANUAL AIR CONDITIONER)
sub48131-42111¥7,800
main48131-42111i¥7,800199608-199610
W(MANUAL AIR CONDITIONER)
sub48131-42112¥7,600
main48131-42111i¥7,800199608-199610
W(235/60R16 TIRE)
sub48131-42112¥7,600
main48131-42112i¥7,600199610-199709
W(MANUAL AIR CONDITIONER)
sub48131-42113¥9,200
main48131-42112i¥7,600199610-199709
W(235/60R16 TIRE)
sub48131-42113¥9,200
main48131-42113i¥9,200199709
main48131-42120i¥8,000199602-199608
W(MANUAL AIR CONDITIONER)
sub48131-42121¥8,000
main48131-42121i¥8,000199608-199610
W(235/60R16 TIRE & MANUAL AIR CONDITIONER)
sub48131-42122¥8,000
main48131-42121i¥8,000199608-199610
W(MANUAL AIR CONDITIONER)
sub48131-42122¥8,000
main48131-42122i¥8,000199610-199709
W(235/60R16 TIRE & MANUAL AIR CONDITIONER)
sub48131-42123¥9,200
main48131-42122i¥8,000199610-199709
W(MANUAL AIR CONDITIONER)
sub48131-42123¥9,200
main48131-42123i¥9,200199709
W(MANUAL AIR CONDITIONER)
main48131-42123i¥9,200199709
W(235/60R16 TIRE)
main48131-42130i¥8,500199511-199709
W(MANUAL AIR CONDITIONER)
sub48131-42131¥8,500
main48131-42130i¥8,500199709-199906
sub48131-42131¥8,500
main48131-42131i¥8,500199906
main48131-42160i¥8,000199608-199610
W(235/60R16 TIRE)
sub48131-42161¥8,000
main48131-42161i¥8,000199610-199709
W(235/60R16 TIRE)
sub48131-42172¥9,900
main48131-42170i¥8,200199608-199610
W(235/60R16 TIRE)
sub48131-42171¥8,500
main48131-42170i¥8,200199608-199610
W(235/60R16 TIRE & MANUAL AIR CONDITIONER)
sub48131-42171¥8,500
main48131-42171i¥8,500199610-199709
W(235/60R16 TIRE)
sub48131-42172¥9,900
main48131-42171i¥8,500199610-199709
W(235/60R16 TIRE & MANUAL AIR CONDITIONER)
sub48131-42172¥9,900
main48131-42172i¥9,900199709
W(235/60R16 TIRE)
main48131-42180i¥8,200199608-199610
W(235/60R16 TIRE & MANUAL AIR CONDITIONER)
sub48131-42181¥5,200
main48131-42181i¥5,200199610-199709
W(235/60R16 TIRE & MANUAL AIR CONDITIONER)
main48131-42182i¥9,900199709
W(235/60R16 TIRE)
main48131-42182i¥9,900199709
W(235/60R16 TIRE & MANUAL AIR CONDITIONER)
main48131-42190i¥9,900199712
W(MANUAL AIR CONDITIONER)
main48131-42210i¥10,200199709
W(MANUAL AIR CONDITIONER)
main48131-42220i¥9,900199709
W(235/60R16 TIRE & MANUAL AIR CONDITIONER)
48132SPRING, FRONT COIL, LH
main48131-42010i¥7,500199602-199906
W(MANUAL AIR CONDITIONER)
sub48131-42011¥7,500
main48131-42011i¥7,500199906
W(MANUAL AIR CONDITIONER)
main48131-42020i¥7,800199709-199906
W(MANUAL AIR CONDITIONER)
sub48131-42021¥7,800
main48131-42021i¥7,800199906
W(MANUAL AIR CONDITIONER)
main48131-42030i¥7,600199511-199709
sub48131-42031¥9,200
main48131-42031i¥9,200199709
main48131-42041i¥9,200199709
W(MANUAL AIR CONDITIONER)
main48131-42041i¥9,200199709
W(235/60R16 TIRE & MANUAL AIR CONDITIONER)
main48131-42041i¥9,200199712
W(235/60R16 TIRE)
main48131-42050i¥7,800199511-199709
sub48131-42051¥7,800
main48131-42050i¥7,800199712-199906
W(235/60R16 TIRE & MANUAL AIR CONDITIONER)
sub48131-42051¥7,800
main48131-42051i¥7,800199906
W(235/60R16 TIRE & MANUAL AIR CONDITIONER)
main48131-42060i¥8,100199511-199709
sub48131-42061¥8,100
main48131-42060i¥8,100199511-199906
W(MANUAL AIR CONDITIONER)
sub48131-42061¥8,100
main48131-42061i¥8,100199906
W(MANUAL AIR CONDITIONER)
main48131-42070i¥7,400199602-199709
main48131-42080i¥7,800199602-199709
main48131-42090i¥8,000199511-199709
W(MANUAL AIR CONDITIONER)
sub48131-42091¥9,400
main48131-42091i¥9,400199709
W(MANUAL AIR CONDITIONER)
main48131-42091i¥9,400199712
main48131-42100i¥7,400199602-199608
sub48131-42101¥7,400
main48131-42101i¥7,400199608-199610
sub48131-42102¥7,400
main48131-42102i¥7,400199610-199709
main48131-42110i¥7,800199602-199608
W(MANUAL AIR CONDITIONER)
sub48131-42111¥7,800
main48131-42111i¥7,800199608-199610
W(235/60R16 TIRE)
sub48131-42112¥7,600
main48131-42111i¥7,800199608-199610
W(MANUAL AIR CONDITIONER)
sub48131-42112¥7,600
main48131-42112i¥7,600199610-199709
W(235/60R16 TIRE)
sub48131-42113¥9,200
main48131-42112i¥7,600199610-199709
W(MANUAL AIR CONDITIONER)
sub48131-42113¥9,200
main48131-42113i¥9,200199709
main48131-42120i¥8,000199602-199608
W(MANUAL AIR CONDITIONER)
sub48131-42121¥8,000
main48131-42121i¥8,000199608-199610
W(235/60R16 TIRE & MANUAL AIR CONDITIONER)
sub48131-42122¥8,000
main48131-42121i¥8,000199608-199610
W(MANUAL AIR CONDITIONER)
sub48131-42122¥8,000
main48131-42122i¥8,000199610-199709
W(MANUAL AIR CONDITIONER)
sub48131-42123¥9,200
main48131-42122i¥8,000199610-199709
W(235/60R16 TIRE & MANUAL AIR CONDITIONER)
sub48131-42123¥9,200
main48131-42123i¥9,200199709
W(MANUAL AIR CONDITIONER)
main48131-42123i¥9,200199709
W(235/60R16 TIRE)
main48131-42130i¥8,500199511-199709
W(MANUAL AIR CONDITIONER)
sub48131-42131¥8,500
main48131-42130i¥8,500199709-199906
sub48131-42131¥8,500
main48131-42131i¥8,500199906
main48131-42160i¥8,000199608-199610
W(235/60R16 TIRE)
sub48131-42161¥8,000
main48131-42161i¥8,000199610-199709
W(235/60R16 TIRE)
sub48131-42172¥9,900
main48131-42170i¥8,200199608-199610
W(235/60R16 TIRE & MANUAL AIR CONDITIONER)
sub48131-42171¥8,500
main48131-42170i¥8,200199608-199610
W(235/60R16 TIRE)
sub48131-42171¥8,500
main48131-42171i¥8,500199610-199709
W(235/60R16 TIRE & MANUAL AIR CONDITIONER)
sub48131-42172¥9,900
main48131-42171i¥8,500199610-199709
W(235/60R16 TIRE)
sub48131-42172¥9,900
main48131-42172i¥9,900199709
W(235/60R16 TIRE)
main48131-42180i¥8,200199608-199610
W(235/60R16 TIRE & MANUAL AIR CONDITIONER)
sub48131-42181¥5,200
main48131-42181i¥5,200199610-199709
W(235/60R16 TIRE & MANUAL AIR CONDITIONER)
main48131-42182i¥9,900199709
W(235/60R16 TIRE)
main48131-42182i¥9,900199709
W(235/60R16 TIRE & MANUAL AIR CONDITIONER)
main48131-42190i¥9,900199712
W(MANUAL AIR CONDITIONER)
main48131-42210i¥10,200199709
W(MANUAL AIR CONDITIONER)
main48131-42220i¥9,900199709
W(235/60R16 TIRE & MANUAL AIR CONDITIONER)
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
main48157-42010i¥1,870199511
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
main48157-42010i¥1,870199511
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
main48158-32030i¥1,530199511
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
main48158-32030i¥1,530199511
48331BBUMPER, FRONT SPRING, RH
main48331-42010i¥1,190199511
48331CBUMPER, FRONT SPRING, LH
main48331-42010i¥1,190199511
48471BSEAT, FRONT COIL SPRING, UPPER RH
main48044-32030i¥1,800199511
48471CSEAT, FRONT COIL SPRING, UPPER LH
main48044-32030i¥1,800199511
48510ABSORBER ASSY, SHOCK, FRONT RH
main48510-49015i¥27,400199511-199801
sub48510-49016¥27,600
main48510-49016i¥27,600199801
sub48510-49017¥27,600
main48510-49025i¥27,400199511-199801
sub48510-49026¥27,600
main48510-49025i¥27,400199608-199801
W(235/60R16 TIRE)
sub48510-49026¥27,600
main48510-49026i¥27,600199801
W(235/60R16 TIRE)
sub48510-49017¥27,600
main48510-49065i¥27,400199608-199801
W(ELECTRIC MOON ROOF)
sub48510-49066¥27,600
main48510-49065i¥27,400199608-199801
W(235/60R16 TIRE)
sub48510-49066¥27,600
main48510-49066i¥27,600199801
W(235/60R16 TIRE)
sub48510-49067¥27,600
main48510-49066i¥27,600199801
W(ELECTRIC MOON ROOF)
sub48510-49067¥27,600
48520ABSORBER ASSY, SHOCK, FRONT LH
main48520-49015i¥27,400199511-199801
sub48520-49016¥27,600
main48520-49016i¥27,600199801
sub48520-49027¥27,600
main48520-49025i¥27,400199511-199801
sub48520-49026¥27,600
main48520-49025i¥27,400199608-199801
W(235/60R16 TIRE)
sub48520-49026¥27,600
main48520-49026i¥27,600199801
W(235/60R16 TIRE)
sub48520-49027¥27,600
main48520-49065i¥27,400199608-199801
W(ELECTRIC MOON ROOF)
sub48520-49066¥27,600
main48520-49065i¥27,400199608-199801
W(235/60R16 TIRE)
sub48520-49066¥27,600
main48520-49066i¥27,600199801
W(235/60R16 TIRE)
sub48520-49067¥27,600
main48520-49066i¥27,600199801
W(ELECTRIC MOON ROOF)
sub48520-49067¥27,600
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
main48609-42010i¥5,700199511
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
main90179-10095i¥110199511
48603CSEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH)
main90303-22049i¥260199511
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
main48609-42010i¥5,700199511
48609DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH)
main90303-22049i¥260199511
48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
main94184-61401i¥170199511
48682ASUPPORT, FRONT SUSPENSION, NO.2 RH
main48682-42010i¥680199511
48682BSUPPORT, FRONT SUSPENSION, NO.2 LH
main48682-42010i¥680199511
48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH
main48684-32010i¥590199511
48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH
main48684-32010i¥590199511
48810LINK ASSY, FRONT STABILIZER, LH
main48820-33010i¥5,300199511
main48820-42010i¥6,100199608
W(235/60R16 TIRE)
main48820-42010i¥6,100199511
48811BAR, STABILIZER, FRONT
main48811-42010i¥11,900199511-199709
sub48811-42011¥12,000
main48811-42011i¥12,000199709
main48811-42020i¥12,900199511-199709
sub48811-42021¥13,000
main48811-42020i¥12,900199608-199709
W(235/60R16 TIRE)
sub48811-42021¥13,000
main48811-42021i¥13,000199709
W(235/60R16 TIRE)
48811ABUSH(FOR FRONT STABILIZER BAR)
main90385-22003i¥240199511
main90386-24001i¥180199608
W(235/60R16 TIRE)
main90386-24001i¥180199511
48815BUSH, FRONT STABILIZER BAR, NO.1
main48815-42010i¥470199511
main48815-42020i¥530199511
main48815-42020i¥530199608
W(235/60R16 TIRE)
48820BLINK ASSY, FRONT STABILIZER, RH
main48820-33010i¥5,300199511
main48820-42010i¥6,100199608
W(235/60R16 TIRE)
main48820-42010i¥6,100199511
48824ABRACKET, FRONT STABILIZER, NO.1 RH
main48824-30050i¥300199608
W(235/60R16 TIRE)
main48824-30050i¥300199511
main48824-42010i¥590199511
48829ABRACKET, FRONT STABILIZER, NO.1 LH
main48824-30050i¥300199608
W(235/60R16 TIRE)
main48824-30050i¥300199511
main48824-42010i¥590199511
9011908336
main90119-08336¥160
9017910183
main90179-10183¥100
9017912151
main90179-12151¥100
9094901078
main90949-01078¥80
9094901992
main90949-01992¥240

34 parts on this diagram · 1 diagram in section

FRONT SPRING & SHOCK ABSORBER — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
