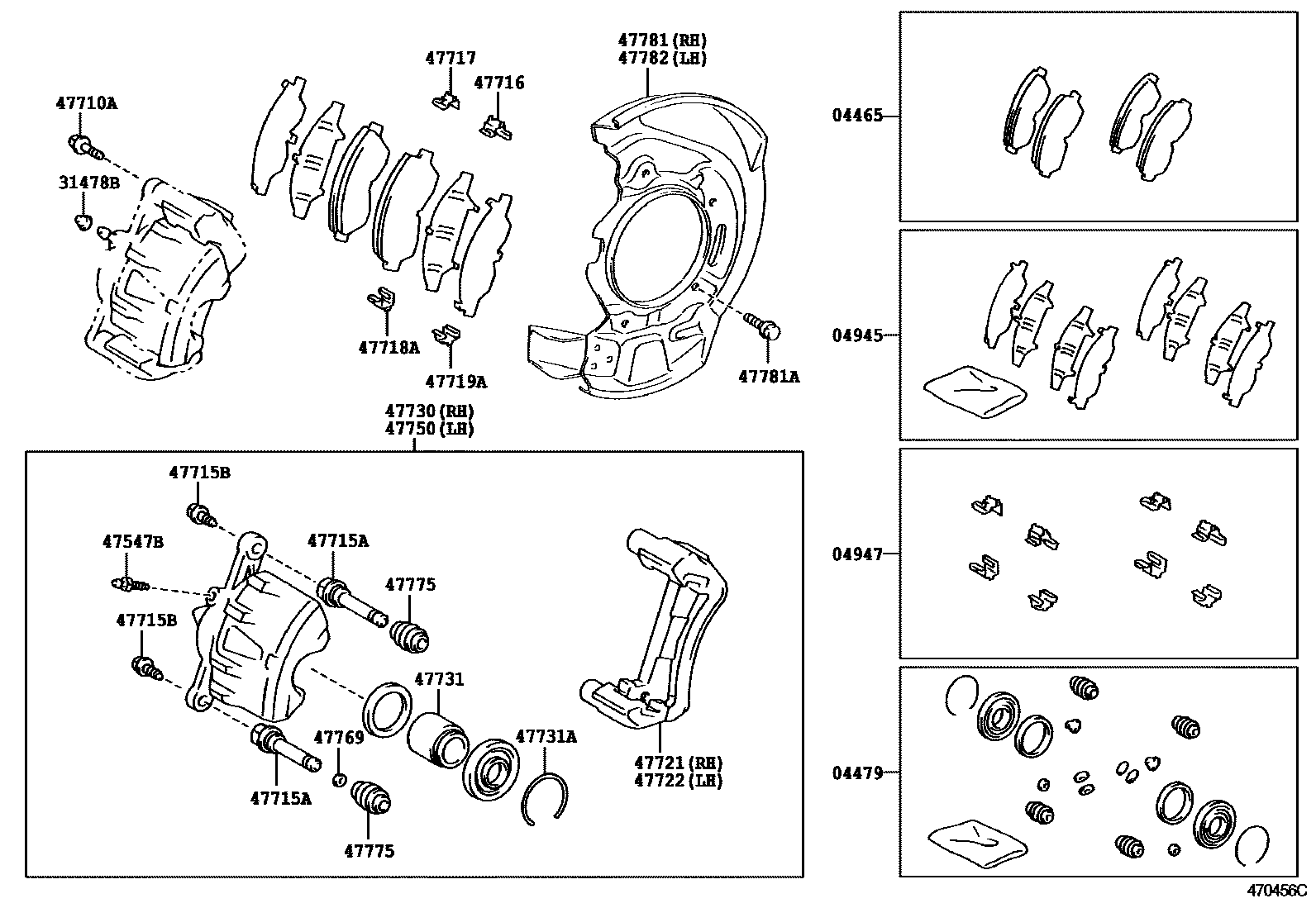

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-42011iSXA1#199511-199707

sub04465-42012

main04465-42012iSXA1#199707-199808

sub04465-42060

main04465-42060iSXA1#199808-200008

sub04465-42120

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-42010iSXA1#199511-200008

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-22010iSXA1#199610-199707

sub04945-22011

main04945-42010iSXA1#199511-199607

sub04945-42030

main04945-42011iSXA1#199607-199610

sub04945-22010

main04945-42030iSXA1#199707-200008

sub04945-42031

04947FITTING KIT, DISC BRAKE, FRONT

main04947-42010iSXA1#199511-199707

sub04947-42030

main04947-42030iSXA1#199707-200008

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iSXA1#199511-200008

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-35020iSXA1#199511-200008

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12131iSXA1#199511-200008

*12-1.25PX25.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-22050iSXA1#199511-199512

sub47715-30080

main47715-30080iSXA1#199512-200008

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90105-08304iSXA1#199511-200008

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-22030iSXA1#199707-200008

main47716-42010iSXA1#199511-199707

sub47716-22030

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-22020iSXA1#199707-200008

main47717-42010iSXA1#199511-199707

sub47717-22020

47718APLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)

main47718-42010iSXA1#199511-199707

sub47718-42020

main47718-42020iSXA1#199707-200008

47719APLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)

main47719-42010iSXA1#199511-199707

sub47719-42020

main47719-42020iSXA1#199707-200008

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-42010iSXA1#199511-200008

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-42010iSXA1#199511-200008

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-42010iSXA1#199511-200008

47731PISTON, FRONT DISC BRAKE

main47731-42010iSXA1#199511-200008

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-64003iSXA1#199511-200008

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-42010iSXA1#199511-200008

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-22040iSXA1#199511-200008

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-22040iSXA1#199511-200008

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-42010iSXA1#199511

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06227iSXA1#199511

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-42010iSXA1#199511

24 parts on this diagram · 1 diagram in section
