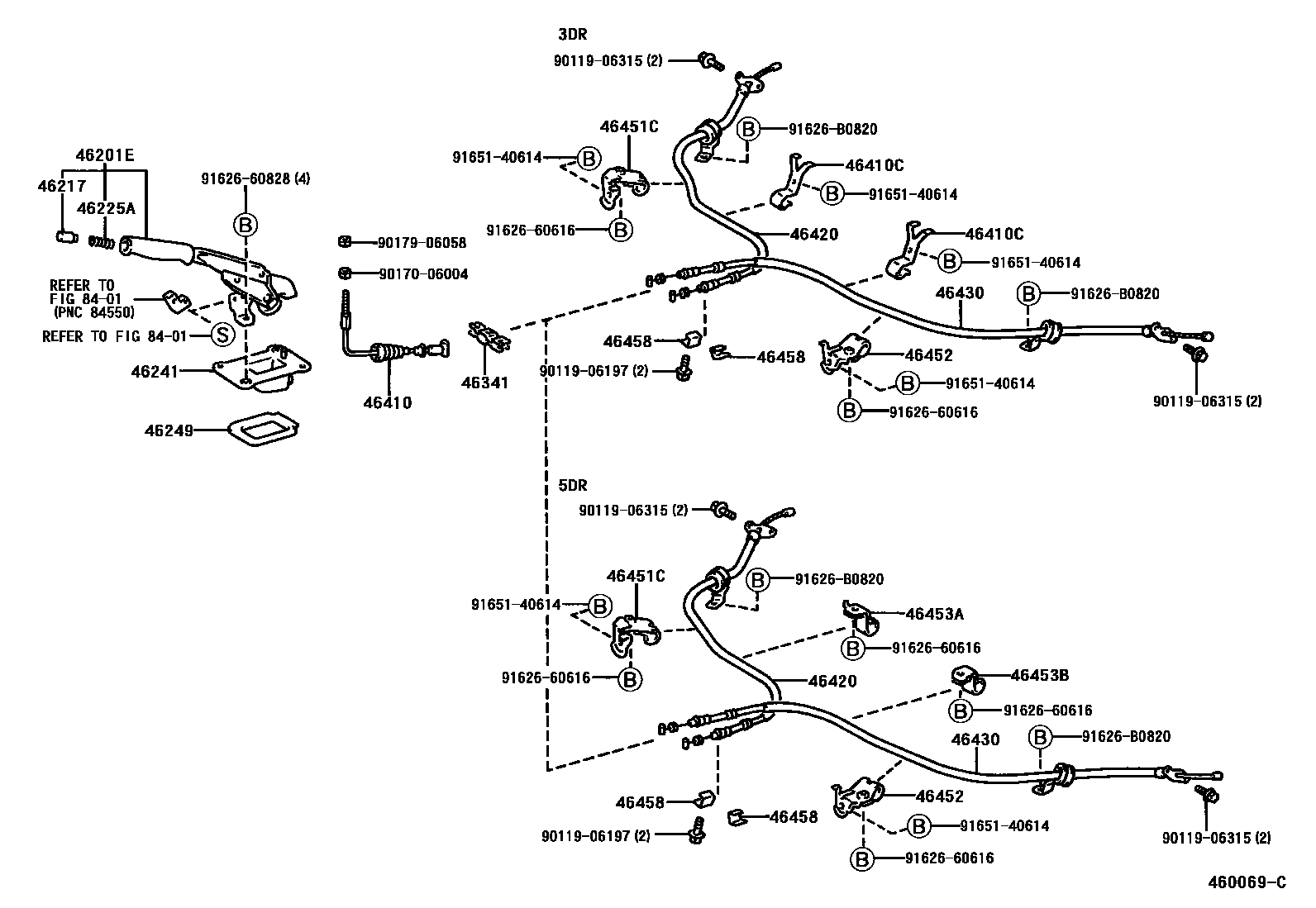

PARKING BRAKE & CABLE

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-42010-C0iSXA1#199511-199709

BLACK,TRIM1#

main46201-42040-C0iSXA1#199709

BLACK,TRIM1#

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-12020-C0iSXA1#199511-199704

GRAY,TRIM1#

sub46217-12020

sub46217-16030

main46217-16030-C0iSXA1#199704

BLACK,TRIM1#

sub46217-16030

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10069iSXA1#199511

46241BOOT, PARKING BRAKE LEVER

main46241-42010iSXA1#199511

46249SHIELD, PARKING BRAKE HOLE

main46249-20030iSXA1#199511

46341EQUALIZER, PARKING BRAKE

main46341-24010iSXA1#199511

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-42010iSXA1#199511

46410CCLAMP(FOR PARKING BRAKE FRONT CABLE)

main90949-01954iSXA10,15199511

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-42010iSXA10,15199511

main46420-42020iSXA11,16199511

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-42010iSXA10,15199511

main46430-42020iSXA11,16199511

46451CBRACKET, PARKING BRAKE CABLE SUPPORT, NO.1

main46451-42010iSXA1#199511-199710

sub46451-42011

main46451-42011iSXA1#199710

46452BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2

main46452-42010iSXA1#199511-199710

sub46452-42011

main46452-42011iSXA1#199710

46453ABRACKET, CABLE SUPPORT, NO.3

main46451-42020iSXA11,16199511

46453BBRACKET, CABLE SUPPORT, NO.3

main46452-42020iSXA11,16199511

46458RETAINER, CABLE

main46458-28010iSXA1#199511

8401

9011906197

main90119-06197

9011906315

main90119-06315

9017006004

main90170-06004

9017906058

main90179-06058

9162660616

main91626-60616

9162660828

main91626-60828

91626B0820

main91626-B0820

9165140614

main91651-40614

24 parts on this diagram · 1 diagram in section
