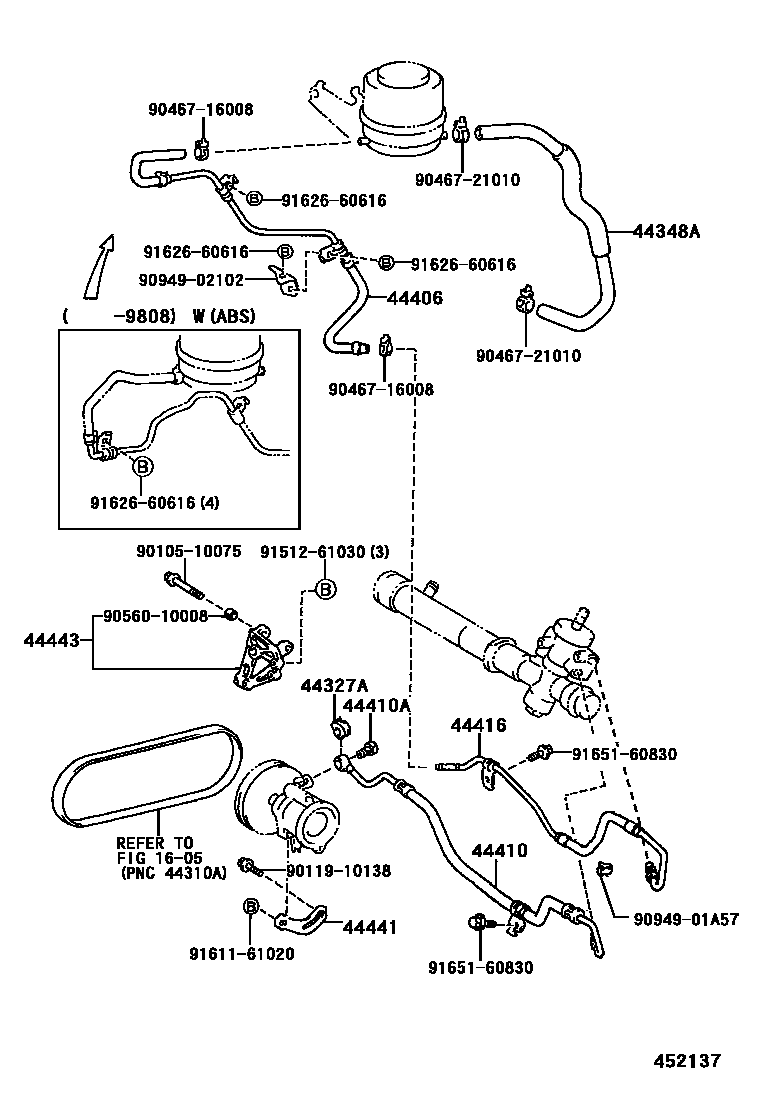

POWER STEERING TUBE

1605

44327AGASKET, PRESSURE PORT, NO.1

main44327-30030iSXA1#¥160199511

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-42010iSXA1#¥5,500199511-199608

main44348-42011iSXA1#¥4,920199608

44406TUBE SUB-ASSY, RETURN

main44406-42010iSXA10,11¥5,100199511-199608

W(ABS)

main44406-42020iSXA1#¥4,270199511-199608

main44406-42021iSXA1#¥4,280199608-199808

main44406-42030iSXA15,16¥5,100199602-199608

W(ABS)

main44406-42031iSXA1#¥6,100199608-199808

W(ABS)

main44406-42070iSXA1#¥4,280199808

44410TUBE ASSY, PRESSURE FEED

main44410-42011iSXA1#¥14,100199511-199808

main44410-42040iSXA1#¥14,100199808-199811

sub44410-42050¥14,100

sub91651-60830¥90

main44410-42050iSXA1#¥14,100199811

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main96341-41603iSXA1#¥310199511

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44420-42010iSXA1#¥3,420199511

44441BRACKET, PUMP, FRONT

main44441-32010iSXA1#¥1,130199511

44443BRACKET, PUMP

main44443-32070iSXA1#¥5,300199511

9010510075

main90105-10075¥180

9011910138

main90119-10138¥260

9046716008

main90467-16008¥240

9046721010

main90467-21010¥380

9056010008

main90560-10008¥590

9094901A57

main90949-01A57¥200

9094902102

main90949-02102¥660

9151261030

main91512-61030¥170

9161161020

main91611-61020¥240

9162660616

main91626-60616¥100

9165160830

main91651-60830¥90

20 parts on this diagram · 1 diagram in section
