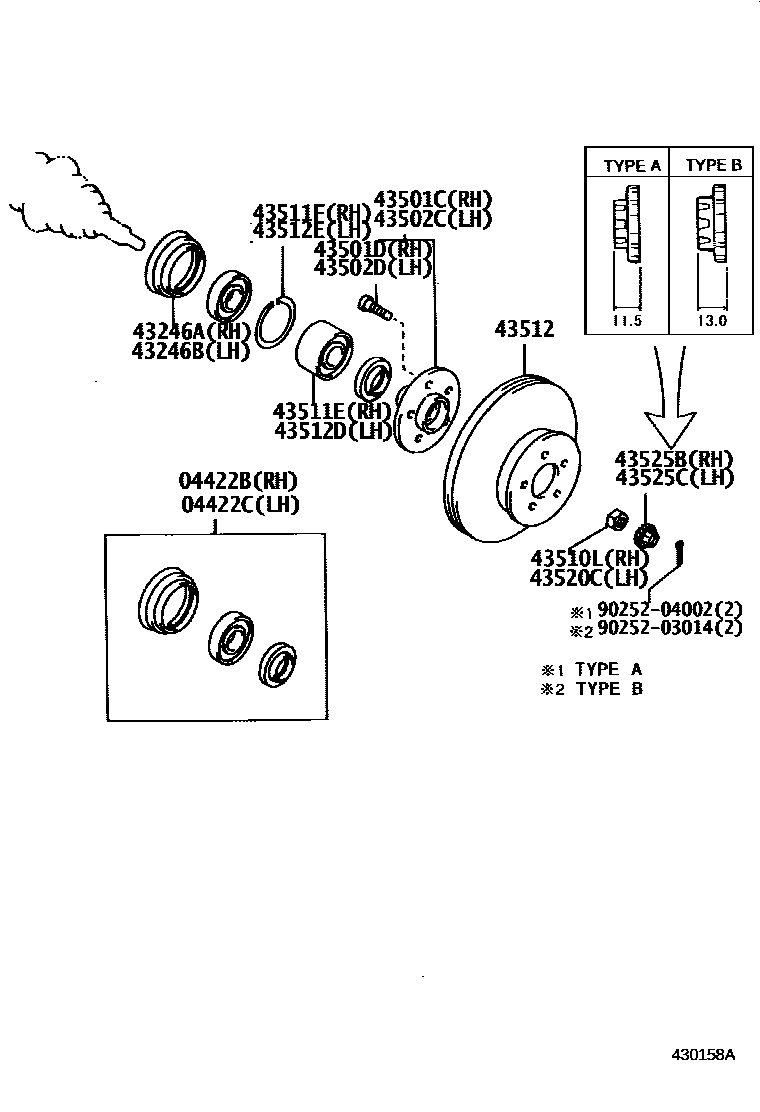

FRONT AXLE HUB

04422BSEAL KIT, FRONT AXLE OIL, RH

main04422-12060iSXA1#199511

main04422-20080iSXA1#199511

W(ABS)

04422CSEAL KIT,FRONT AXLE OIL, LH

main04422-12060iSXA1#199511

main04422-20080iSXA1#199511

W(ABS)

43246ADEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH

main43246-12020iSXA1#199511

W(ABS)

main43246-12040iSXA1#199511

43246BDEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH

main43246-12020iSXA1#199511

W(ABS)

main43246-12040iSXA1#199511

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-42010iSXA1#199511

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02070iSXA1#199511

sub90942-02049

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-42010iSXA1#199511

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02070iSXA1#199511

sub90942-02049

43510LNUT (FOR STEERING KNUCKLE RH)

main90178-22001iSXA1#199709

main90179-22020iSXA1#199511-199709

43511EBEARING (FOR FRONT AXLE HUB RH)

main90369-38003iSXA1#199511

43511FRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-79002iSXA1#199511

43512DISC, FRONT

main43512-42010iSXA1#199511

43512DBEARING (FOR FRONT AXLE HUB LH)

main90369-38003iSXA1#199511

43512ERING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-79002iSXA1#199511

43520CNUT (FOR STEERING KNUCKLE LH)

main90178-22001iSXA1#199709

main90179-22020iSXA1#199511-199709

43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH

main42428-42010iSXA1#199606

TYPE B:REFER TO ILLUSTRATION

main43525-20030iSXA1#199511

TYPE A:REFER TO ILLUSTRATION

43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH

main42428-42010iSXA1#199606

TYPE B:REFER TO ILLUSTRATION

main43525-20030iSXA1#199511

TYPE A:REFER TO ILLUSTRATION

9025203014

main90252-03014

9025204002

main90252-04002

19 parts on this diagram · 1 diagram in section
