DIAPHRAGM CYLINDER & TRANSFER VACUUM ACTUATOR

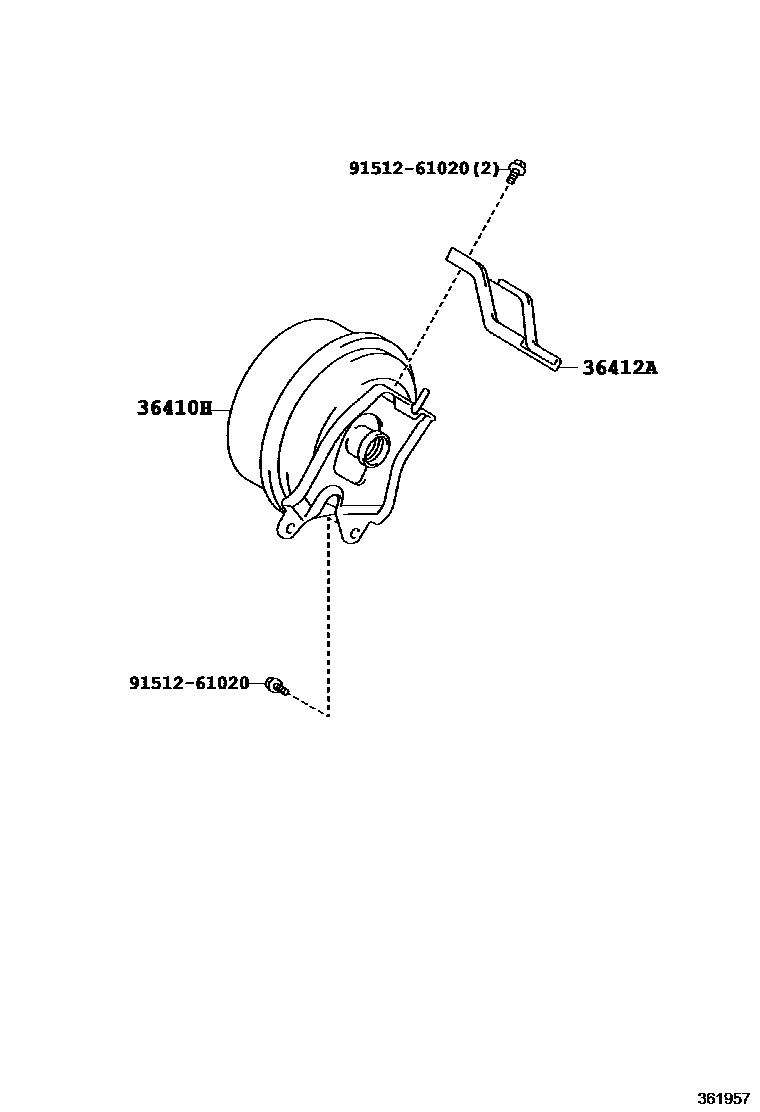

Parts diagram

36410HACTUATOR ASSY, TRANSFER VACUUM

main36410-12010i199511

36412ABRACKET, TRANSFER VACUUM ACTUATOR

main36412-12010i199511

9151261020

main91512-61020

3 parts on this diagram · 1 diagram in section
